Home > Products > Semi-Automatic Packaging Machine > electric automatic packing sugar bagging machine
electric automatic packing sugar bagging machine
- 5 Set / Sets per Month
- Shanghai
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Other | Packaging Type: | Bags, Barrel, Bottles, Cans, Cartons, Case, Pouch |
Packaging Material: | Glass, Metal, Paper, Plastic | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Voltage: | 220 V | Power: | 0.3-0.5 kw | Place of Origin: | China |
Brand Name: | Gloex Selected | Model Number: | C-SF-PP124-046 | Weight: | 100-160kg |
Dimension(L*W*H): | 520*630*1750 | Certification: | CE Approval | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

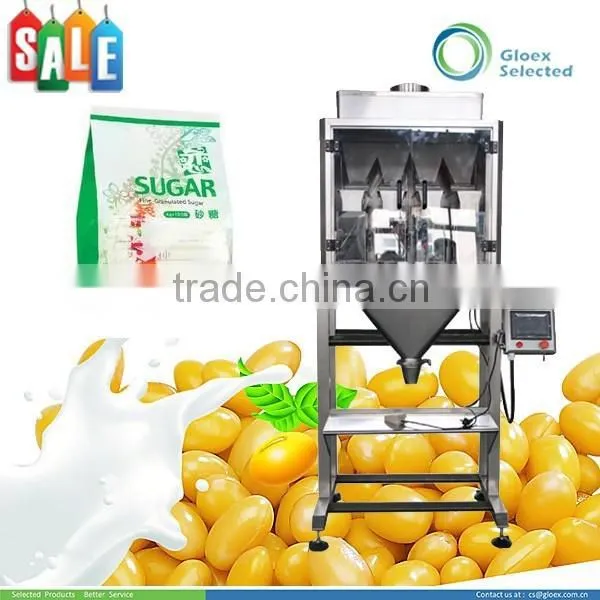

electric automatic packing sugar bagging machine
This machine is applicable for packing loose powder, granule or other irregular solidity in form of bottle, can, or pouches, with different type of capping or sealing device is capable to form a production line, the detail application description as following table:
Issue | Application Description |
Applicable Products | Suitable for loose powder or granule dosing and filling. Such as sugar, salt, detergent powder, coffee powder, nuts, seeds, popcorn etc. |
Applicable Containers | Flexible for filling containers, like premade pouches, can, barrel or bottles. |
Following are the reference style of packaging
Standard Features
• Granule , loose powder or other irregular solidity Products dosing and filling
• Stainless steel 304 structure and surface, Mirror deal process for product touching parts
• PLC & HMI Control, More stable operation, Easy for parameter setting and troubleshooting
• Storing 99 configurations of parameter, convenient for products changing
• Advanced software integrated, faster dosing speed and flexible positive or negative deviation setting up
• Complete statistics function, like single dosing weight, accumulative weight, percentage of pass, weighing deviation etc.
• Ingress Protection 55 grade waterproof and dustproof, reliable performance
• International reputable vibrator and weight sensor enable the accuracy of dosing
Catalogue/1X-xxx | 102 | 202 | 103 | 104 |
Weighing Heads | 2 | 2 | 3 | 4 |
Filling Range ‘cc | 10-1800 | 10-2800 | 10-1800 | 10-1800 |
Best Filling Range ‘g | 100-800 | 100-1800 | 100-800 | 100-800 |
Filling Accuracy | 0.1% | 0.1% | 0.1% | 0.1% |
Max Filling Speed -times/min | 35 | 40 | 45 | 60 |
Hopper Volume-Liter | 22 | 40 | 40 | 65 |
Power Requirement | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
Power Consumption-KW | 0.3 | 0.5 | 0.4 | 0.5 |
Compress Air Required | NA | NA | NA | NA |
Compress Air Consumption-m3/min | NA | NA | NA | NA |
Approximate Weight -kg | 100 | 160 | 150 | 160 |
Dimension ( ‘mm ) | 520*630*1750 | 700*700*1950 | 700*700*1950 | 820*700*2150 |
Except for the design of the machine, the key components configuration will determine the quality of the machine or system, below is the shortlist configuration of the key components:
No | Components | Material / Short List |
1 | Products Touching Parts | Stainless Steel 304 with mirror deal process as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 | Structure | Stainless Steel 304 |
3 | Surface | Stainless Steel 304 |
4 | Programmable Logic Controller | Delta, Siemens, Mitsubishi, Panosonic |
5 | Touch Screen | Weinview, Siemens,Delta,Kinco, Panosonic |
6 | Stepper/Servo Motor | Teco, Delta, Panosonic,Moons |
7 | Vibrator | FMC **1) |
8 | Key Electric Components | Schneider,Chint, Ls, Ark |
9 | Key Protection & Relay | Schneider,Delixi |
10 | Weight Sensor | Zemic**2) |
**1) FMC Technologies has a proud history of providing bulk material handling solutions to industries worldwide for over 125 years. One in this industry may already know the brands Link Belt and Syntron which have been industry standard for excellence in bulk material handling. Around the globe their name is synonymous with problem solving capabilities
**2) ZEMIC, Zhonghang Electronic Measuring Instruments Co., Ltd. (Briefly as ZEMIC; Stock Code: 300114), is holding by Aviation Industry of China. ZEMIC is a diversified modern high-tech enterprise, specialized in electronic measuring instruments such as strain gages, strain gage based sensors, weighing indicators and software, testing and measuring system for aviation industry, automobile safety and performance testing system, and automobile overload inspecting facilities.
Compare with others, this machine is more focusing on the details, and these details determine the performance, with its advantage as following
a) Mirror deal process for products touching parts, more clean
b) International Reputable Components , include the vibrator and weight senor
c) Advanced weighing software, more faster accuracy of dosing
d) Ingress Protection 55 grade waterproof and dust proof.
This granule liner weigher packaging machine, running at hundreds of proven projects, stable operating under excellent performance
electric automatic packing sugar bagging machine
In order to form a production line, the corresponding capping, seaming, sealing or labeling machines are necessary accessories, Click following links for more informaiton
- Capping & Seaming Solutions
- Labeling Solutions
If you want to pack granule or powder in form of pouches, doypack, sachet, stick or big bags , following line will guide you to know more
In ordr to enable you understand our products conveniently , following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
electric automatic packing sugar bagging machine
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Produtcts to be packed
- Container to be filled, type and specification.
- Capacity requirement
- Automation requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
Contact Us
- Wuhan Global Exchange Import And Export Limited
- Contact nameKevin Zhou
- Phone0086-27-86856068
- AddressUnit 4-602, E-Commerce Industry Park, Steel Valley , Qingshan District Wuhan,Hubei
