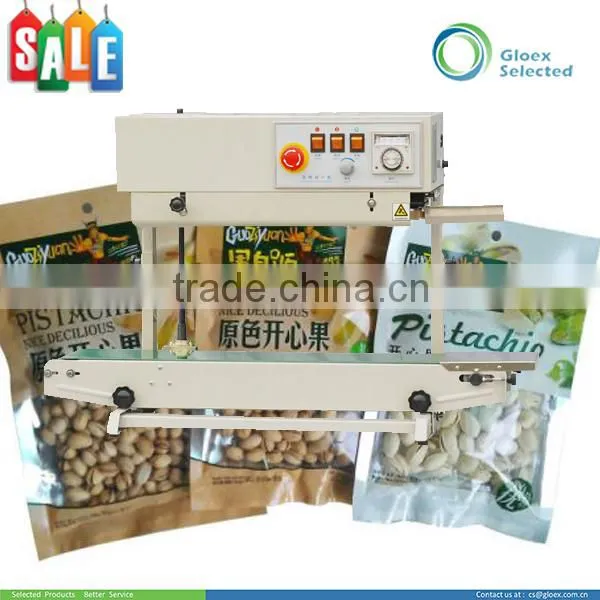

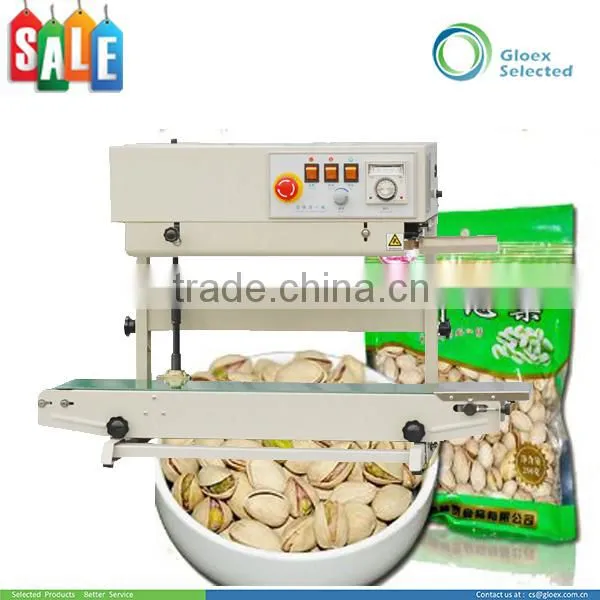

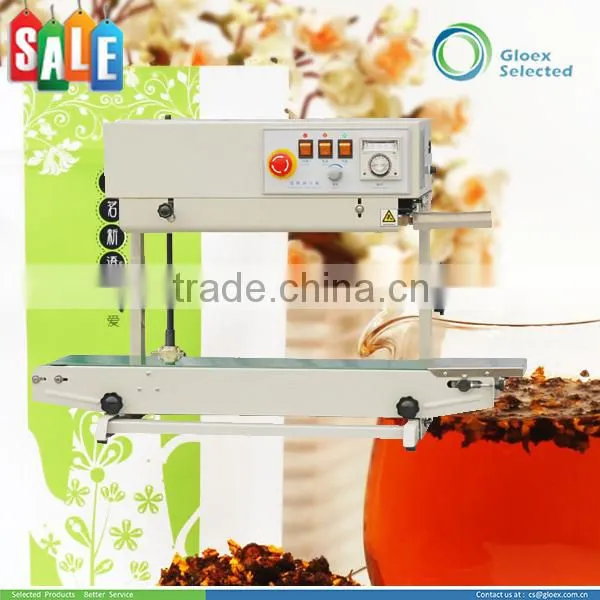

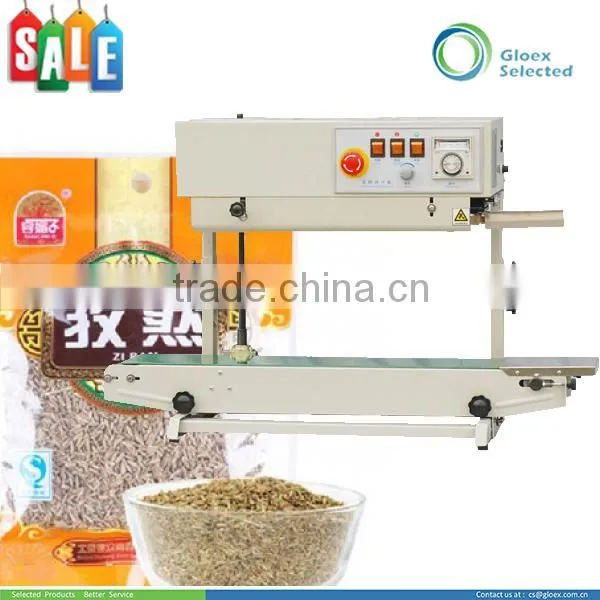

Continuous Band Sealer
This machine is applicable for sealing small packages, which adopts constant temperature control system and stepless speed regulation mechanism, it can seal plastic or laminate heat sealable film continuously
Standard Features
- Applicable for plastic or laminate heat sealable film
- Constant temperature control and adjustment system
- Stepless sealing speed regulation mechanism
- Painted carbon steel for shell and structure as standard
Optional Features
- Desktop horizontal and vertical type
- Floor standing horizontal type
- Text embossed coding device
- Automatic counting device
- Bag feeding from left side
- Stainless steel 304 shell, chromate treatment structure
The working processes include: adjust the sealing temperature, manually feed the packages from left or right side of the machine, the machine will roll and seal the packaging automatically

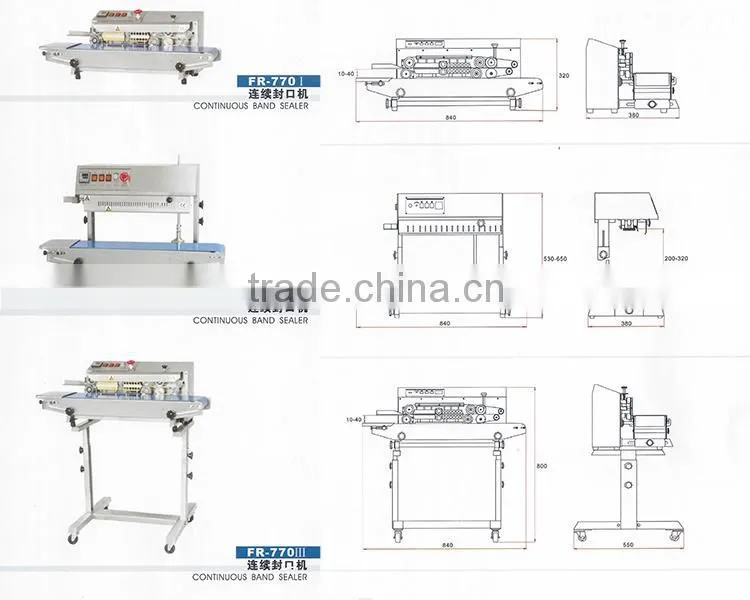

Type 2H-xxx-xxx-x |
FR-770-I |
FR-770-II |
FR-770-III |
Power Supply-V/HZ |
AC 220/50,or 110V/60 |
||
Motor Capacity-Watt |
50 |
50 |
50 |
Sealing Capacity-Watt |
300*2 |
300*2 |
300*2 |
Sealing Speed-m/min |
0-12 |
0-12 |
0-12 |
Sealing Width-mm |
10 |
10 |
10 |
Distance from sealing center to conveyor-mm |
10-40 |
200-320 |
10-40 |
Sealing Temperature Range-oC |
0-300 |
0-300 |
0-300 |
Conveyor Size-mm |
L*W=840*180 |
||
Max Conveyor Load-Single Bag-kg |
1 |
1 |
1 |
Max Conveyor Load-Overall-kg |
3 |
3 |
3 |
Dimension-L*W*H-mm |
840*380*320 |
840*380*530 |
840*550*800 |
Net Weight-kg |
32 |
37 |
40 |

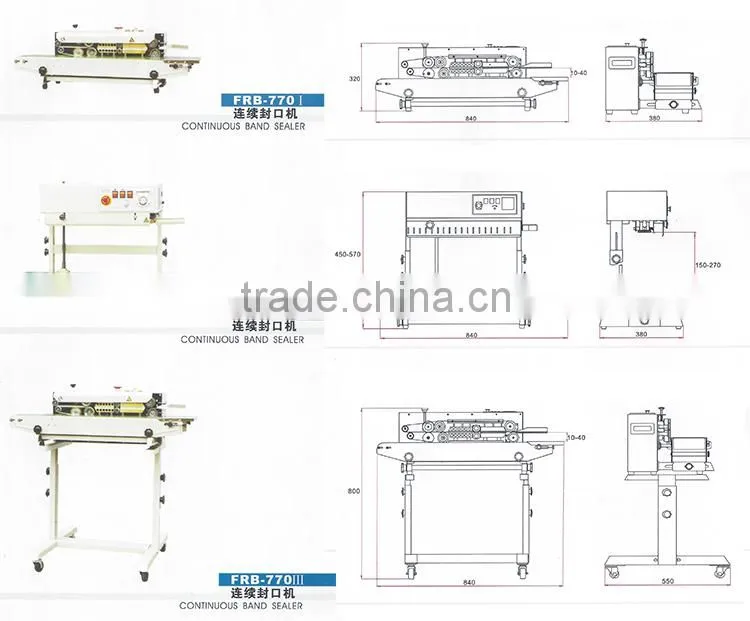

Type 2H-xxx-xxx-x |
FRB-770-I |
FRB-770-II |
FRB-770-III |
Power Supply-V/HZ |
AC 220/50,or 110V/60 |
||
Motor Capacity-Watt |
50 |
50 |
50 |
Sealing Capacity-Watt |
300*2 |
300*2 |
300*2 |
Sealing Speed-m/min |
0-12 |
0-12 |
0-12 |
Sealing Width-mm |
10 |
10 |
10 |
Distance from sealing center to conveyor-mm |
10-40 |
150-270 |
10-40 |
Sealing Temperature Range-oC |
0-300 |
0-300 |
0-300 |
Conveyor Size-mm |
L*W=840*153 |
||
Max Conveyor Load-Single Bag-kg |
1 |
1 |
1 |
Max Conveyor Load-Overall-kg |
3 |
3 |
3 |
Dimension-L*W*H-mm |
840*380*320 |
840*380*450 |
840*550*800 |
Net Weight-kg |
32 |
37 |
40 |
Note:
1) FR is the type that the bag to be fed from the left side
2) FRB is the type that the bag to be fed from the right side
Following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Desktop horizontal and vertical type
- Floor standing horizontal type
- Text embossed coding device
- Automatic counting device
- Bag feeding from left side
- Stainless steel 304 shell, chromate treatment structure
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
