CE Approval Rotary Type Automatic pouch with spout filling equipment
- 3 Set / Sets per Month
- Tianjin
- T/T
- Vegetablesmultifunctional packaging equipment
- Combined packaging equipment Dressmulti-functional packaging machine
- Cloud warehousemultifunction packaging machine Dressmultifunctional packaging equipment
- Sweetpackaging integrated equipment Express deliverycombined packaging equipment
- Cloud warehousemultifunction packaging machine Gift packagemultifunctional packaging equipment
- Wet tissuepackaging integrated machinery E-commercecombined packaging equipment
Product Details
Condition: | New | Function: | Filling, Sealing | Application: | Beverage, Chemical, Commodity, Food, Medical |
Packaging Type: | Pouch, Stand-up Pouch | Packaging Material: | Paper, Plastic | Automatic Grade: | Automatic |
Driven Type: | Pneumatic | Voltage: | 380V 50/60HZ | Power: | 2.5 KW |
Place of Origin: | China | Brand Name: | Gloex Selected | Model Number: | QP-PH-PP133-302 |
Dimension(L*W*H): | 2800*2200*2800 mm | Certification: | CE Approval | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

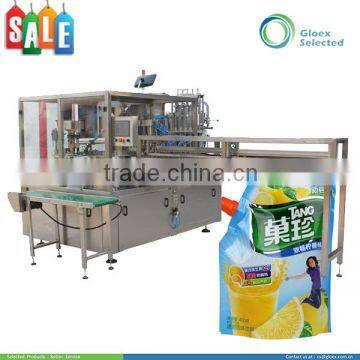

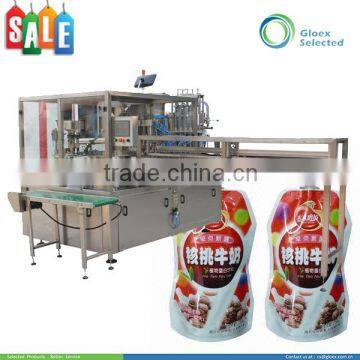

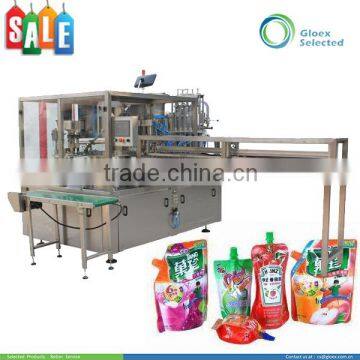

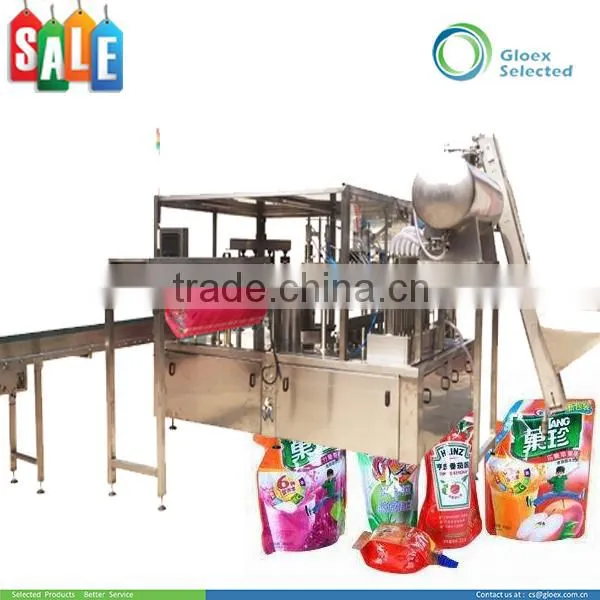

CE Approval Rotary Type Automatic pouch with spout filling equipment
This machine is applicable for filling liquid in premade spout pouch and capping, applies various type spout pouches, regular or irregular , flat or stand up pouch etc. which include processes of premade spout pouch feeding, liquid dosing, filling, spout capping, the detail application description as following table:
Issue | Application Description |
Applicable Pouches | Generally apply for spout pouch |
Applicable Products | Normal liquid or viscous liquid such as water, Juice, soybean milk, commodity chemicals, etc |
Applicable type of cap | Anti-opening / screwing cap with hanging slot etc |
Following are the reference style of pouches
Standard Features
• Premade spout pouch feeding, liquid dosing, filling, spout capping.
• Stainless steel 304 and duralumin for structure and surface
• PLC & HMI Control Integrated, easy for operation and troubleshooting
• Simple adjustment of filling volume by PLC
• Large volume of tank and automatic liquid level control to ensure the filling speed and stability
• Wide range of pouch size adaption
• Automatic cap sorting and pre-capping
Catalogue/1U-xxxx | ZP2000 |
Packaging Range-ml | 100-1,000 |
Filling Heads | 8 |
Capping Heads | 8 |
Packing Speed –Pouches/min | 30-45 |
Filling Accuracy | +/-0.5% |
Power Consumption-KW | 2.5 |
Power Requirement | 380V 50/60HZ |
Compress Air Requirement | 0.65 Mpa |
Compress Air Consumption | 2.0m3/min |
Buffering Tank-liter | 35 |
Liquid Level Control Device-set | 1 |
Capping and Pre-capping device-set | 1 |
Pouch Feeding Device-set | 1 |
Approximate Net Weight -kg | 650 |
Dimension ( ‘mm )-Length of Pouch Feeder | 1700 |
Dimension ( ‘mm )-main machine | 2800*2200*2800 |
Except for the design of the machine, the key components configuration will determine the quality of the machine or system, below is the shortlist configuration of the key components:
No | Components | Material / Short List |
1 | Products Touching Parts | Stainless Steel 304 as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 | Structure | Painted Carbon Steel |
3 | Surface | Stainless Steel 304 |
4 | Programmable Logic Controller | Delta, Siemens, Mitsubishi, Panosonic |
5 | Touch Screen | Weinview, Siemens,Delta,Kinco, Panosonic |
6 | Stepper/Servo Motor | Teco, Delta, Panosonic,Leadshine |
7 | Frequency Convertor | Delta, Schneider,Leadshine |
8 | Key Electric Components | Schneider,Chint, Ls, Ark |
9 | Key Protection & Relay | Schneider |
10 | Cylinder, Filter | Airtac , SMC |
10 | Photocell Sensor | Autonics , Keyence, Leuze, Panosonic, Datalogic |
11 | Vacuum Sucker | Airtac, Sunx |
12 | Temperature Controller | Omoron |
Practically, compare with other types of pouch form, filling sealing machine or other premade pouch filling and sealing machine, this vertical type machine with its advantages as indicated in the following table:
No | Advantage | Description |
1 | Wide range of pouch size adaption | Without change or adjust any component to adapt different size of pouch or different filling volume |
2 | Apply for various type of pouch | Apply for various types of pouch like 1) Flat or stand up pouch 2) Regular or Irregular pouch |
If you think the products above can't fulfill your requirement , please click following link to get more pouch packaging solutions, like:
- Premade Stand up pouch packaging solution, even with zipper or spout
- Weighing and dosing integrated pouch packing solution
- Gusset pouch packaging machines
- Small premade pouch packaging machines for business starting , but also adapt for flat , gusset or stand up pouhces
In ordr to enable you understand our products conveniently , following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Filling Products
- Type of pouch to be used , with spout or not , and position of spout
- Capacity requirement, namely how many pouches per hour
- Automation requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
