Semi-Automatic Bottle Labeling Machine for Square sharped Bottle
Dear Customer
Sincerely thanks for browsing our products, we are providing total Manual/Semi-automatic lableing solutions , no matter labeling on flat surface, cambered surface, round container rectangle container or other irregular container .
These labeling machine also can customize for single, double or three labels on one labeling object. even with transparent characteristic. or with high precise requirement.
This series of machines only apply for Square or Rectangle Container Which With Flat Surface, if need other solutions , please browse our machines through following link
Manual / Semi-Automatic Labeling Solution-Developed by Gloex Selected

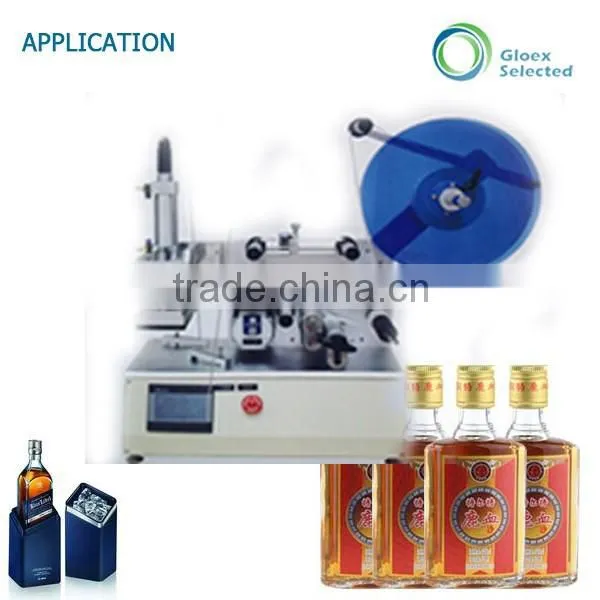

• Suitable for labeling on flat surface, like square or rectangle bottle, caps , plastic shell , SD card , Battery, or other specific labeling target with flat surface etc.
• Configure with servo motor, label detecting and special correcting devices. ensure, labeling without wrinkles, bubbles and high precision.
• Separate design between the electric control and pneumatic driving, equip with moisture removal devices to ensure long life cycle.
• PLC control, easy for function switching and parameter setting.
• Two control modes, Automatic detecting or by manually controlled by foot pedal.
• Optionally, can configure with code printing devices.
• Assurance of key components’ quality by selecting of International reputable brands
Issue |
Application Description |
Applicable Container |
Suitable for labeling on flat surface, like square or rectangle bottle, caps , plastic shell , SD card , Battery, or other specific labeling target with flat surface etc |
Type of Label |
Self-adhesive sticker , Self-adhesive Film, Bar code |
No |
Issue |
Description of Material / Brand |
1 |
Frame & Body |
Made of Stainless Steel 304 and High Class Aluminum Alloy |
2 |
Man-Machine Interface |
Weinview, Siemens |
3 |
Stepper/Servo Motor |
Teco, Delta,ABB,Schneider |
4 |
Programmable Logic Controller |
Delta, Siemens, AB |
5 |
Electric Components |
Schneider |
6 |
Protection & Relay |
Schneider |
7 |
Optic Electric Transducer |
Omron, Sick,Oritiz |

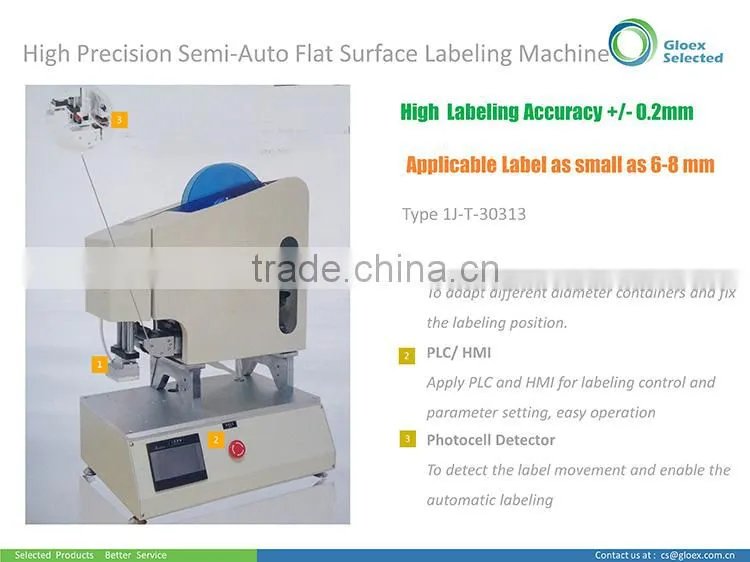

Catalogue1J-T-xxxxx |
30114 |
30313 |
Control Method |
Semi-Automatic |
Semi-Automatic |
Number of Label |
1 |
1 |
Transparent Label Application |
Optional Feature |
Optional Feature |
Adhesive |
Self-Adhesive |
Self-Adhesive |
Coding/Printing Machine |
Exclude |
Exclude |
Width of Label |
15-150mm |
5-70mm |
Length of Label |
15-100mm |
10-60mm |
Labeling Speed |
20-45 pcs/min,5 meters/min |
10-25 pcs/min,5 meters/min |
labeling Tolerance |
+/-0.5mm |
+/-0.2mm |
Size of Container- L*W*H |
20-200*20-150*0.2-120mm |
20-200*20-180*0.2-75mm |
Roller Outer Diameter |
340mm |
240mm |
Roller Inner Diameter |
76mm |
76mm |
Power Requirement |
AC 220V 50/60HZ |
AC 220V 50/60HZ |
Compress Air Requirement |
0.4-0.6Mpa |
0.4-0.6Mpa |
Electricity Consumption |
145w |
145w |
Approximate Weight ( Net) |
48 kg |
67 kg |
Dimension ( ‘mm ) |
850*410*720mm |
550*420*780mm |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Container to be labeled, Dimension, Material.
- Type of Label, number, position and dimension of label
- Transparency of Label
- Capacity requirement
- Automation requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
