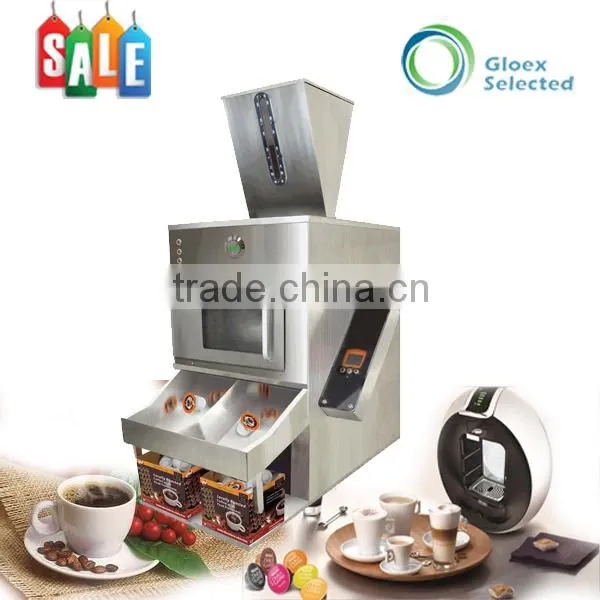

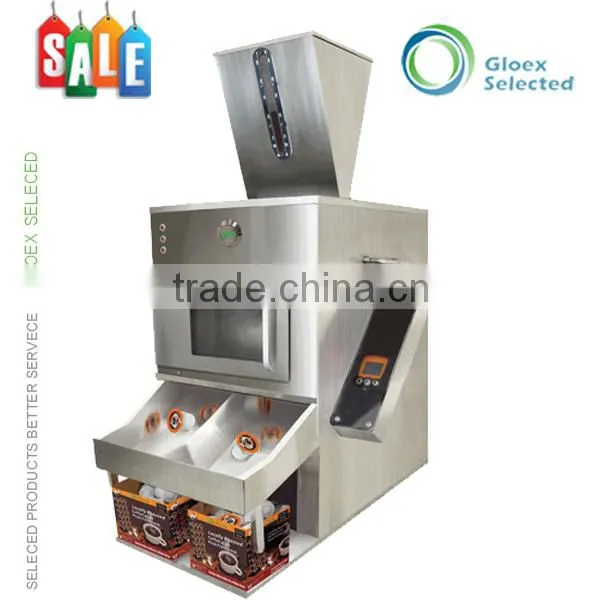

Automatic K-Cup Filling Sealing and Boxing Machine
This machine is applicable for K-cup filling, sealing and boxing, the products can be coffee products (or other kinds of powder products, such as tea powder, cocoa powder etc.
Especially design for coffee rosters & shops, Grocery Stores, Restaurants……
No new or special space needed, No skilled labor or engineer requirement, one of our existing employees can now make 800-3,600 cups, in house, within an hour, No additional employee or space needed!

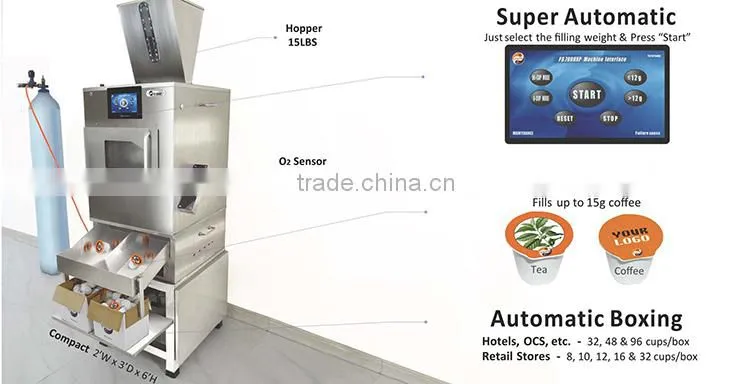

- Production Speed: 800-3600 cups per minute upon the type of machine
- Small footprint: Fits to operate on the tabletop, counter or shelf
- Quick Set up : Set up in 30 seconds to enable both small or large batches of filling, sealing and boxing
- Hopper Capacity : 1.36-6.80kg / 3 lbs- 15 lbs Hopper for ground coffee
- Nitrogen: Sealed Hopper & Filling Chamber to save nitrogen, Nitrogen blanket for door.
- Boxing Module : Include one set of boxing module to dispense cups directly into 10,12,24, or 48 cup bulk packaging boxes for retail
Type 2M-xx-xxx |
FS-800 |
FS-800XP |
FS-7000 |
FS-7000XP |
Automation |
Automatic |
Automatic |
Automatic |
Automatic |
Dosing Method |
Volumetric |
Volumetric |
Volumetric |
Volumetric |
Filling Speed-Cups/Hour |
800 |
1200 |
2400 |
3600 |
Dispensing Heads-Cups/Time |
2 |
2 |
6 |
6 |
Oxygen Senor |
NA |
Include |
NA |
Include |
Dimension-Net-mm |
636*1089*1089 |
636*1089*1089 |
908*1362*2270 |
908*1362*2270 |
Weight-Net-kg |
32 |
35 |
180 |
198 |
Note:
Volume of Filling Cylinder: 8-15grams/cup ground coffee as the standard, 2-7 grams for tea, and 12-30 for cocoa as the options, latte or other special drink mixes are also available upon request

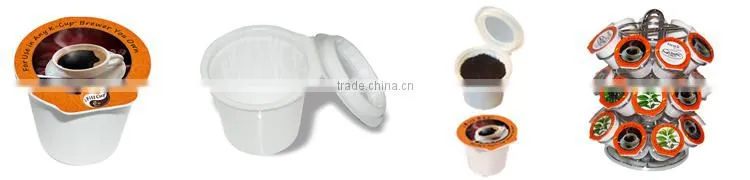

K-cups with Pleated Filter
Note: Co-branding is available-customize your own lid and package with your logo to promote our brand
If you think the above machine can't fulfill your requirement , please click the following link to get more machine demostration
coffee capsule filling machine
In order to enable you understand our products conveniently, following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
