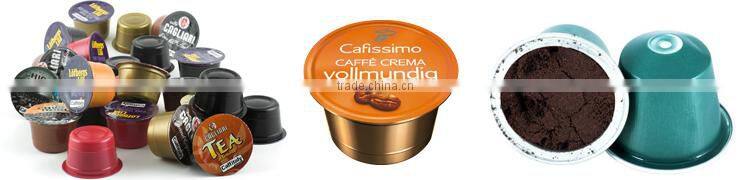

This machine is applicable for filling and sealing various type of capsules, like Upon the buyer's request , able to customize the machine to adapt different shaped capsule cups , such as :
a) Personalized shape of cups
b) Nespresso capsule
c) Lavazza blue
d) Mycup,Melitta
e) K-cups with filer inside
f) Others types to be specified
Except coffee powder, the machine is also capable for other powder products filling and sealing, like cocoa powder, or other drink powder mixes

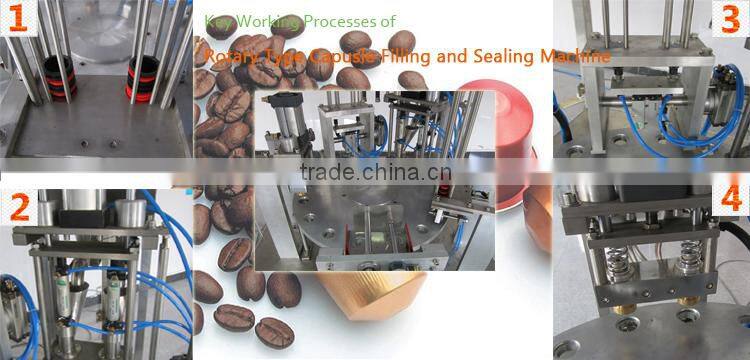

Following are the key working processes indication, which includes capsule loading, capsule filling, foil sucking and capsule sealing
Standard Features
• All products touching part configure with Stainless Steel 304
• Configure with PLC and Touch screen HMI enable easy operation parameter setting up and error indicating.
• Automatic capsule dropping down and feeding for filling
• Filling range is adjustable by Program Logic Controller
• Configure with auger filler with filling accuracy +/-0.2 gram
• Automatic lid of capsule sucking and positioning
• Pre-compacting before sealing to ensure the filling density and beautifythe final products.
• Vacuum cleaning process to enable no remaining powder on the surface of the capsules.
• Twice sealing design and critical sealing temperature control,guarantee no powder
• Equipped with copper sealing heads , and sealing temperature is adjustable within 0-400oC
• Reputable international components configuration enhance the operation reliability.
Optional Features
• Glass cover
• Stainless steel frame and structure
• Door open , automatically shutting down ( only apply for the machine with glass cover )
• No cups no filling
• Nitrogen flushing function ( Exclude the nitrogen generation device )

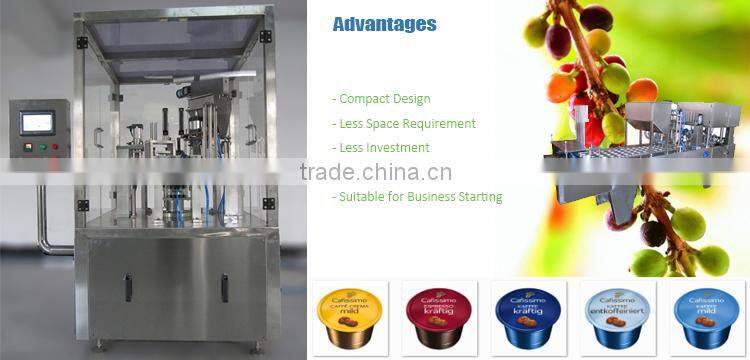

Practically, compare with the other type of capsule filling and sealing machine, the advantages as indicated as above
Except for the engineering of the machine, the key components configuration will determine the quality of the machine or system, below is the shortlist configuration of the key components:
No |
Components |
Material / Short List |
1 |
Products Touching Parts |
Stainless Steel 304 as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 |
Structure and Frame |
Painted Carbon Steel |
3 |
Surface |
Stainless Steel 304 |
4 |
Programmable Logic Controller |
Delta, Siemens, Mitsubishi, Panosonic |
5 |
Touch Screen |
Weinview, Siemens,Delta,Kinco, Panosonic |
6 |
Stepper/Servo Motor |
Teco, Delta, Panosonic,Leadshine |
7 |
Frequency Convertor |
Delta, Schneider,Leadshine |
8 |
Key Electric Components |
Schneider,Chint, Ls, Ark |
9 |
Key Protection & Relay |
Schneider |
10 |
Cylinder, Filter |
Airtac , SMC |
10 |
Photocell Sensor |
Autonics , Keyence, Leuze, Panosonic, Datalogic |
11 |
Vacuum Sucker |
Airtac, Sunx |
12 |
Temperature Controller |
Omoron |
Catalogue/1F-Bxx-x |
HZ-1 |
HZ-2 |
HZ-3 |
HZ-4 |
Filling Heads |
1 |
2 |
3 |
4 |
Filling Range |
5-15 gram, adjustable |
|||
Filling Accuracy |
<=+/-0.2g |
|||
Filling Speed -cups/hour |
600-700 |
1200-1400 |
1800-2100 |
2400-2800 |
Power Requirement |
AC 380V 50Hz |
|||
Power Consumption-KW |
2.5 |
3.0 |
3.5 |
4.0 |
Compress Air Required-Mpa |
0.6-0.8 |
|||
Compress Air Consumption-m3/min |
0.6 |
0.6 |
0.65 |
0.7 |
Approximate Weight -kg |
600 |
850 |
1000 |
1200 |
Dimension ( ‘mm ) |
1600*1800*1180 |
1800*1280*1800 |
1900*1380*1800 |
2000*1480*1800 |
If you think the above machine can't fulfill your requirement , please click the following link to get more machine demostration
coffee capsule filling machine
In order to enable you understand our products conveniently, following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
• Glass cover
• Stainless steel frame and structure
• Door open , automatically shutting down ( only apply for the machine with glass cover )
• No cups no filling
• Nitrogen flushing function ( Exclude the nitrogen generation device )
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
