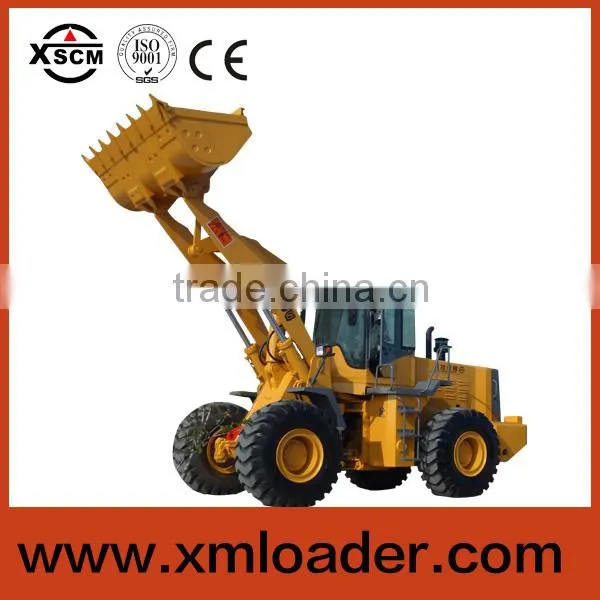

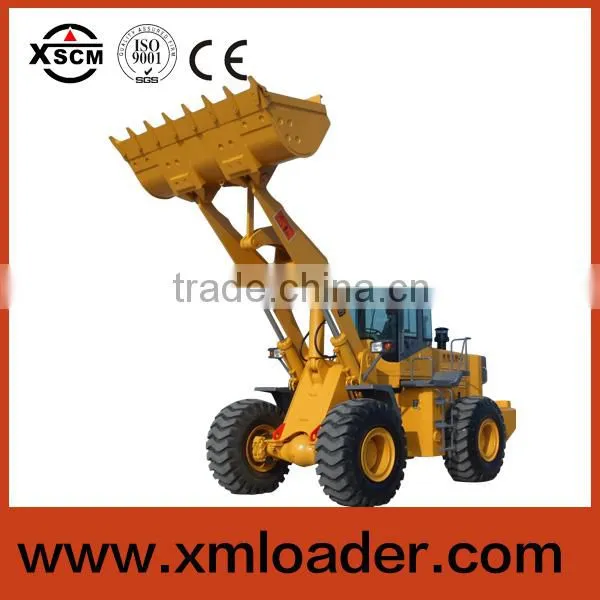

XSCM Zl50g ce 4wd Wheel Log Loader
US$ 9,000 - 20,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XSCM
Model Number:
ZL50G
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XSCM ce Certification High Quality Wheel Loader Zl30US$ 9,000 - 60,500MOQ: 1 Set -
XSCM Zl50g ce 4wd Rock Bucket Wheel LoaderUS$ 9,000 - 20,500MOQ: 1 Set
-
XSCM Zl50g ce 4wd Electric Wheel LoaderUS$ 9,000 - 20,500MOQ: 1 Set
-
China Made Mini Wheel Loader Manufacturers ChinaUS$ 15,000 - 25,000MOQ: 5 Units
-
Small Size Best Selling Excavator Long Reach for SaleUS$ 40,000 - 50,000MOQ: 1 Piece
Condition
New
Brand Name
XSCM
Model Number
ZL50G
Place of Origin
Fujian, China
Type
Skid Steer Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
8120*2880*3460
Rated Load
5000kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
XSCM zl50g ce 4wd wheel log loader with high quality and competitive price which is very cost-effectiveXSCM zl50g ce 4wd wheel log loader quenched integral cutting edge bucket,more strength,better wearing resistance and long life
the wheel log loader pilot controling system as optional
XSCM zl50g ce 4wd wheel log loader main specifications as following:
| Overall length (Bucket on the ground) | mm | 8120 |
| Overall width | mm | 2880 |
| Bucket width | mm | 3020 |
| Height(To the top of cabin) | mm | 3460 |
| Wheel base | mm | 3200 |
| Tread | mm | 2300 |
| Min. ground clearance | mm | 450 |
| Rated load | kg | 5000 |
| Rated bucket capacity | m3 | 3.0 |
| Max. breakout force | KN | 167 |
| Max. dumping clearance | mm | 3150±50 |
| Dump reach | mm | 1220 |
| Max. climbing gradient | ° | 28 |
| Turning angle | ° | 35±1 |
| Dump angle at any position | ° | 45 |
| Turning radius | mm | 7240 |
| 1st gear forward | km/h | 11.5 |
| 2nd gear forward | km/h | 38 |
| 1st gear reverse | km/h | 16 |
| Engine Model | WeiChai WD10G220E11 | |
| Type | In-line, water cool,four-stroke direct injection | |
| Rated power | KW | 162 |
| Inter-bore of cylinder/stroke | mm | 6- 126×130 |
| Rated speed | rpm | 2200 |
| Torque converter Model | YJSW315-6 | |
| Type | Singel stage,double turbine,colligation | |
| Gear box Model | ZL50G | |
| Type | Power shift, Planetary | |
| Shift number | Forward 2, Reverse 1 | |
| Tyre | 23.5-25-16PPR |
