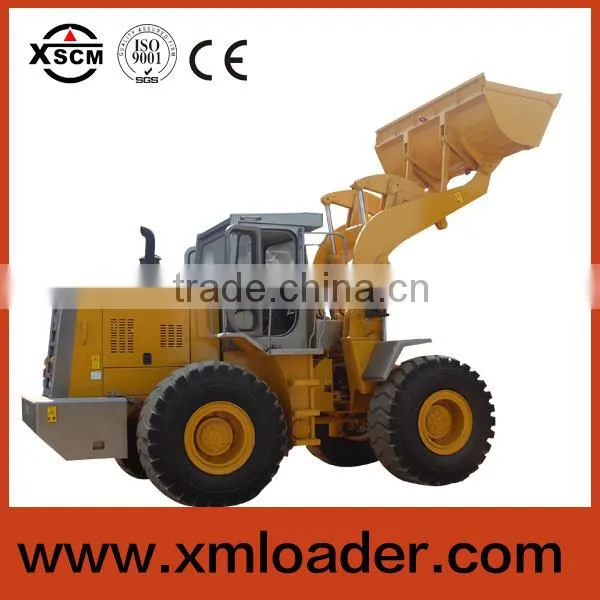

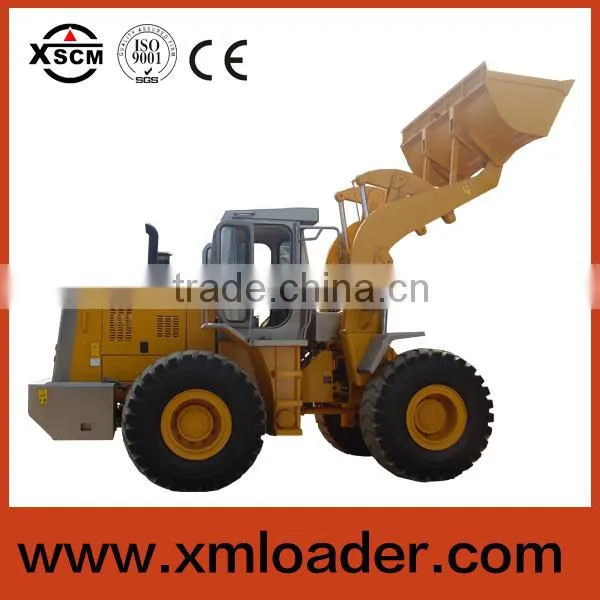

XSCM ST953 CE Approved High Lift Bucket 5 Ton Wheel Loader

Name: XSCM ST953 CE Approved High Lift Bucket 5 Ton Wheel Loader
Brand: XSCM
SKU: 112747759
Availability: InStock

US$ 9,000 - 60,500 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

XSCM

Model Number:

ST953

Xiamen Sute Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name XSCM

Model Number ST953

Place of Origin Fujian, China

Type Backhoe Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7380*2840*3340mm

Rated Load 5000kg

Certification CE

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

XSCM ST953 CE approved high lift bucket 5 ton wheel loader on hot sale
the 5 ton wheel loader is very marketable

XSCM ST953 CE approved high lift bucket 5 ton wheel loader with Styre diesel engine,which is of excellent performance and reliability

the 5 ton wheel loader Intergral openable hood,make it easy to maintain engine

XSCM ST953 CE approved high lift bucket 5 ton wheel loader main specification as following:

Overall length (Bucket on the ground)	mm	7380
Overall width	mm	2840
Bucket width	mm	3020
Height(To the top of cabin)	mm	3340
Wheel base	mm	2760
Tread	mm	2240
Min. ground clearance	mm	450
Rated load	kg	5000
Rated bucket capacity	m³	2.8
Max. breakout force	KN	140
Max. dumping height	mm	3040±15
Dumping reach	mm	1290
Turning angle	°	35±1
Turning radius	mm	6180
Dump angle at any position	°	45
1st gear forward	km/h	11.5
2nd gear forward	km/h	38
1st gear reverse	km/h	16
Cylinder	mm	6- 126×130
Engine Model		Weichai Strye WD10G220E11
