XSCM Cost-effective ST938 ce 3.5t Wheel Loader Scale

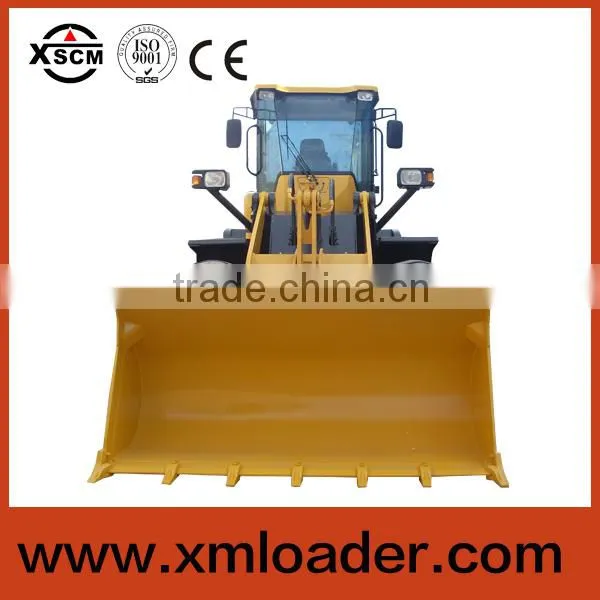

XSCM Cost-effective ST938 ce 3.5t Wheel Loader Scale photo-1
US$ 9,000 - 60,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XSCM
Model Number:
ST938
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB China port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name XSCM
Model Number ST938
Place of Origin Fujian, China
Type Skid Steer Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 7100*2510*3170mm
Rated Load 3.5t
Certification CE
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

XSCM cost-effective ST938 ce 3.5t wheel loader scale adopt top grade shock
the wheel loader scale is cost-effective

XSCM cost-effective ST938 ce 3.5t wheel loader scale Standard equipment control hydraulic system, reduce the labor intensity of operators furthest

the wheel loader scale is cost-effective which use Deutz TD226B-6D1 engine high power and torque reserve low fuel consumption and noise high reliability

XSCM cost-effective ST938 ce 3.5t wheel loader scale

XSCM cost-effective ST938 ce 3.5t wheel loader scale

XSCM cost-effective ST938 ce 3.5t wheel loader scale

XSCM cost-effective ST938 ce 3.5t wheel loader scale as following:

Overall working weight   10700kg
Rated bucket capacity   2.0m³
Rated load   3.5t
Max. traction force   105kN
Max. breakout force   96kN
Max. grade ability   30°
Dumping height   2950mm
Dumping reach   1050mm
Engine Model   Deutz TD226B-6D1
engine Rated power   kw 105
Min. specific fuel consumption  g/kw.h 231
Max. speed km/h 38
Mining steering radius mm  Outside bucket:5912, outside rear wheel:5381
system working pressure Mpa 16
Boom lifting time s 5.3
Total time s 9.2
Service brake   air over hydraulic disc brake
Parking brake   Cable-controlled caliper disc brake
Inter-bore of cylinder/stroke mm  6- 105×120
