Newly standard chinese price of hydraulic excavator
ST808W 8 ton hydraulic cheap mini excavator features
YC4108 Engine
(53kw)Korean Hydraulic pump
Self-made axle
0.32~0.4m3 bucket
ST808W 8 ton hydraulic cheap mini excavator detail specifications
| RANGE OF OPERATION | ||
| Boom length | 4000mm | |
| Arm length | 2100mm | |
| Maximum Digging Reach | 7100mm | |
| Maximum Digging Depth | 4000mm | |
| Maximum Digging Force | 60KN | |
| Maximum Digging Height | 6400mm | |
| Maximum Domoing Height | 4850mm | |
| Minmum Platform Tail tumying Radius | 2550mm | |
| DIMENSION | ||
| Distance from the arm tl rotate machie | 4180mm | |
| (long×wide×high)travelposition | 6450mm×2250mm×2950mm | |
| Groud Clearance of Counterweight | 1150mm | |
| Minmum Groud Clearance | 280mm | |
| TECKNOLOGY PARAMETERA | ||
| angle of rotation | 360° | |
| Machine weight | 7800kg | |
| Engine type | YC4180/CY4102BG | |
| Hydraulic system Working pressure | 21Mpa | |
| Rated Power | 53kw | |
| Max hauling force | 80KN | |
| Walking speed | 40km/h | |
| Grade Climbing ability | 58%/30° | |
| Swing speed | 12r/min | |
| Volume of bucket | 0.32-0.4m³ | |
| Revolution overdrive pressure | 11mpa | |
| QT Fuel Quantity | 6≥L/h | |
| Capacity of the fuel tank | 160L | |
| Hydraulic Tank Capacity | 130L | |

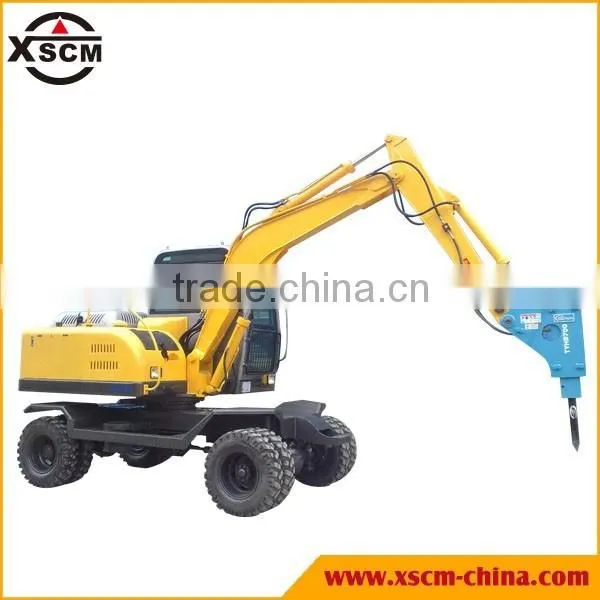

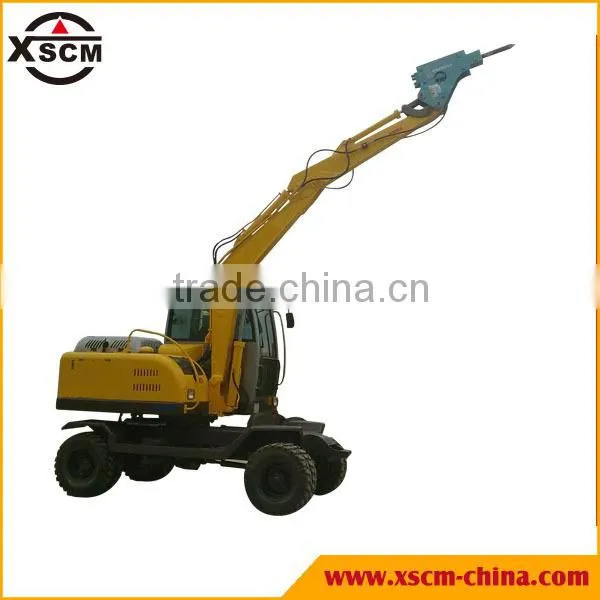

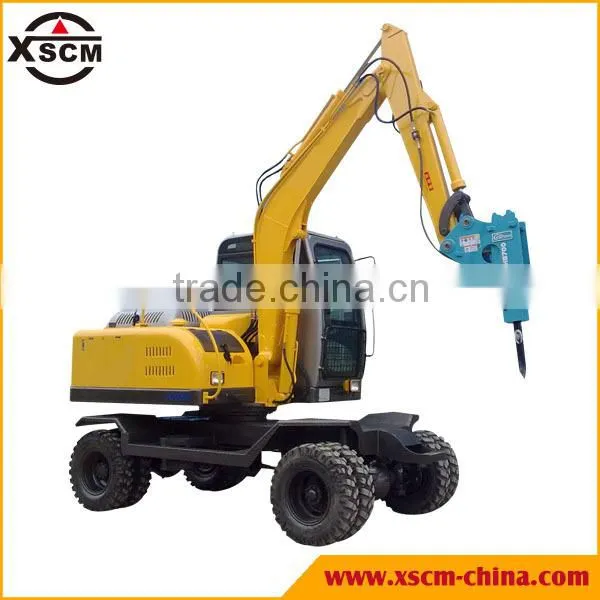

Product Picture
Our advantage:
1.original parts & best price
2. small quantity accepted
3. rich export experience, best and quickest delivery solution
4. saving time for you when your order involves too many factories
5.warehouse located nearby Xiamen seaport
1. Reply your enquiry in 24 working hours.
2. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
3. Special discount and protection of sales area provided to our distributor.
4. Competitive price.
5. Good after-sale service
Q: Do you have anything special compete with others?
A: We will accord customer's special needs to have a special processing. And we have nearly a year of warranty period. In addition to the above two points, we also ensure on time delivery.
Q: How to ensure the quality of the products of your company?
A:First, we are the manufacturer and producing the products by our workers. In addition, we are also testing every product before delivery. It’s the reason why our company’s development is better and better.
Q: How can I do if I find the quality of the products have some problem?
A:First of all, I am confident with the quality of our products; if really found something wrong, pls provide the picture, we have warranty within three to one year, so you can set your heart at rest to buy our products.
Q:What is the minimum order quantity?
A:We have not the limitation of MOQ,the price will surely be high if your order is too small.
Q:What is the delivery term, payment term ?
A: Within 2 days after receive your payment.
Q:What is the payment term?
A: T/T,LC,D/A,D/P,Western Union,MoneyGram.30% deposite in advance, 70% against copy B/L
