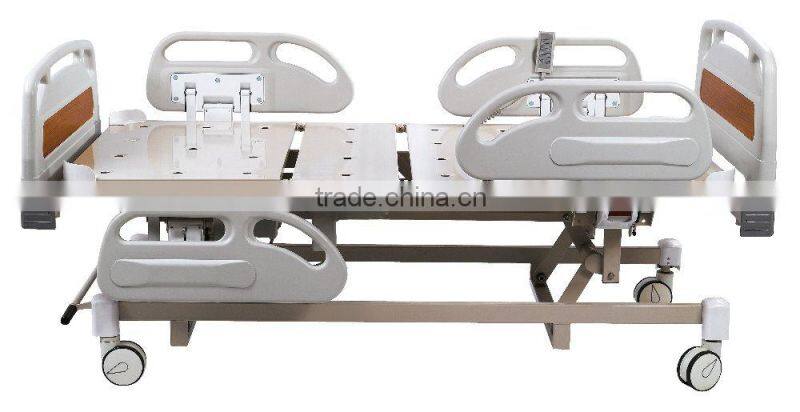

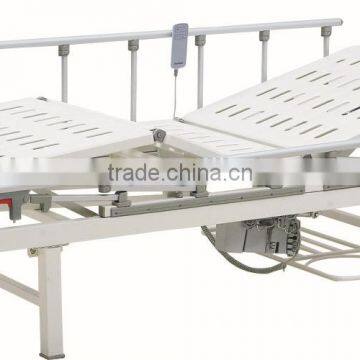

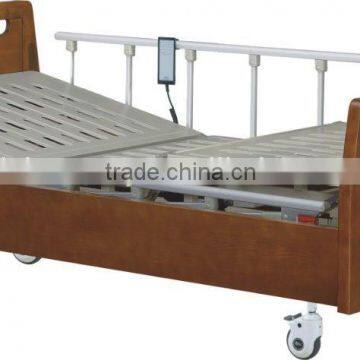

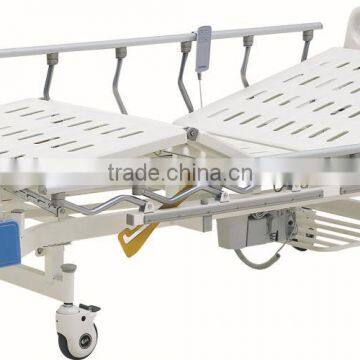

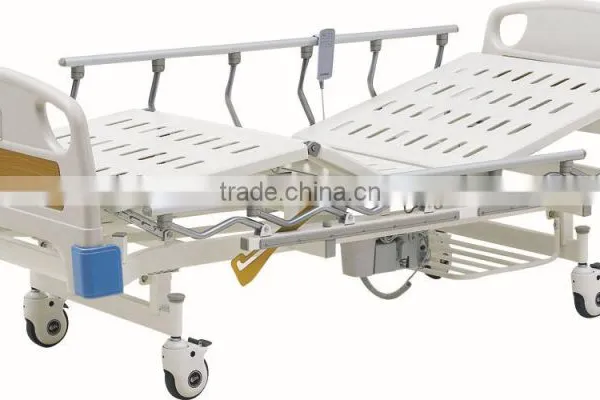

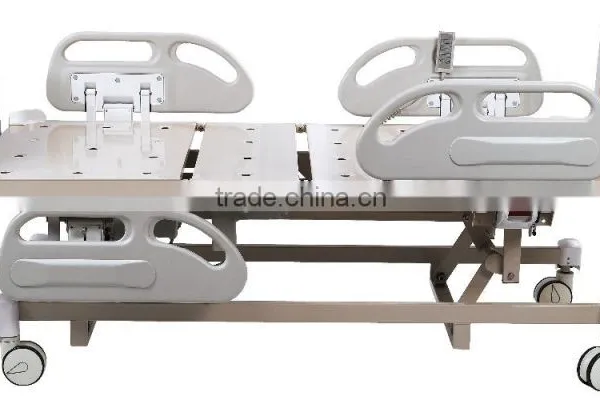

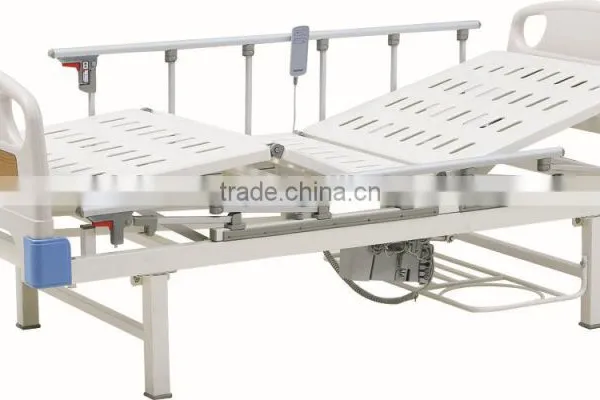

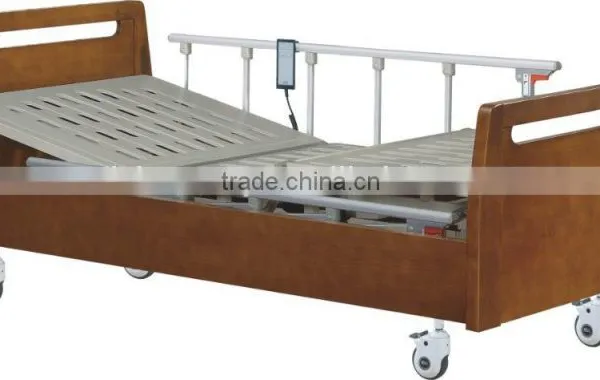

multi function electrical adjustable hospital bed
SPECIFICATIONS:
MATERIAL:Steel framework, ABS & PP for plastic part
dimensions: 2155mm x 1050mm x 430/640mm;
bed size: 1945mm x width 900mm.
Product Specifications of multi function electrical adjustable hospital bed :
dimensions: length 2200mm, width 1050mm and height 510/710mm;
bed size: length 1945mm width 900mm.
Product Function
1, five big functions, containing 4 Danish motor, equipped with advanced touch switch, to solve the finite lifetime and capacity of traditional mechanical key the key failure problem.
2, the head of a bed side about two fence equipped with embedded touch key board, make the patient free adjustment of the bed body posture. The bed end board outside a touch keyboard can be used for the medical personnel to the gesture operation on the bed body, and the system can be locked to ensure safety.
3, back angle (0-70 degrees), knee angle (0-40 degrees), a height adjustment(710mm-510mm), tilt (12 degrees) and anti tilt (12 degrees), the bed body posture are realized by the electric operation, equipped with lights, to display the function execution status.
4, a key to show flat key, can make the bed body quickly back to its initial state at any angle.
5, equipped with a battery, to respond to emergency situations such as power failure.
6, the bed panel with soft connection, position change a bed body, a bed panel natural radian, will make the patients feel uncomfortable.
7, in the control wheel system, through the foot control bed tail beneath the implementation of release the brake and brake.
8, bed four angular distribution of saline shelf hole, easy to use.
9, rail for the luxury European style ABS guardrail, around two group, using the damper can make down buffer folding; color matching and the bed tail plate, make the bed design more unity.
10, the head tail board of symmetrical type socket can be quickly disassembled , meet the clinical emergency needs, bed end set outside the patient information socket.
The overall material
1, the bed is made of high quality cold-rolled steel under frame mother with more than or equal to - 60 * 30 * 2.0mm. The bed body welding quality and firmer after spraying texture smooth, almost can not see the welding interface, smooth the whole bed, feels like satin smooth not blow hand.
2, the head tail board of new imported PP material, a plastic injection molding ,fade resistant, anti-aging.
3, the bed panel using a molding carbon steel plate is larger than 1.2mm, the bed surface is a stamping molding design of multi hole, neatly arranged in the ventand anti-skid function, to facilitate ventilation.
4, the bed body metal surface using double spray processing technology: after degreasing , rust removing, phosphating , electrophoresis paint process, then the electrostatic powder spraying, outside the reach of the rust, prolong the service life of sickbed. Coating belongs to the green environmental protection health products , and have very strong antibacterial effects on Microorganism of Escherichia coli and Staphylococcus aureus.
5, the foot of the bed is made of high quality 5 inch caster, mute and high wear resistance, good stability with brake device.
6, can be equipped with bedside cabinets, movable table board, a telescopic transfusion rod.
7, the whole bed is solid, beautiful and generous, the operation is simple and convenient.
GuangZhou Boka Lab System Tech.Co.,Ltd is a manufacturer of laboratory furniture with well-equipped testing facilities and strong technical force.
Our factory located in Tianhe Area Guangzhou City .We have 7 years export experiment of lab furniture and 12 years lab engineering system construction accumulation
| Loading Port | GuangZhou,ShenZhen,any port nominated by customer. |
| Delivery Terms | EXW,FOB,CIF,CFR |
| MOQ | 1set |
| Delivery Period | 7-20days |
| Package | Bubble Film+Hard carton for FCL order.Bubble film+carton+wooden case for LCL order. |
| Payment | T/T,L/C,Western Union |
| Sample | material sample for free,lab furniture sample need to pay. |
Any interest ,welcome to contact us and visit our factory in any time ,we can provide OEM service and shop-drawing for you. Feel free to contact via wechat:15920594509 or skype lily20110610.
