Specifications
Laboratory fume hood1.Chemical resistant
2.High quality and durable
3.safety and flexible
4.Certificate:ISO9001,ISO14001
Fume cupboard are widely used in the laobratoryenvironment.A fume hood is an engineered control device to protect the user from hazardous effects of substances

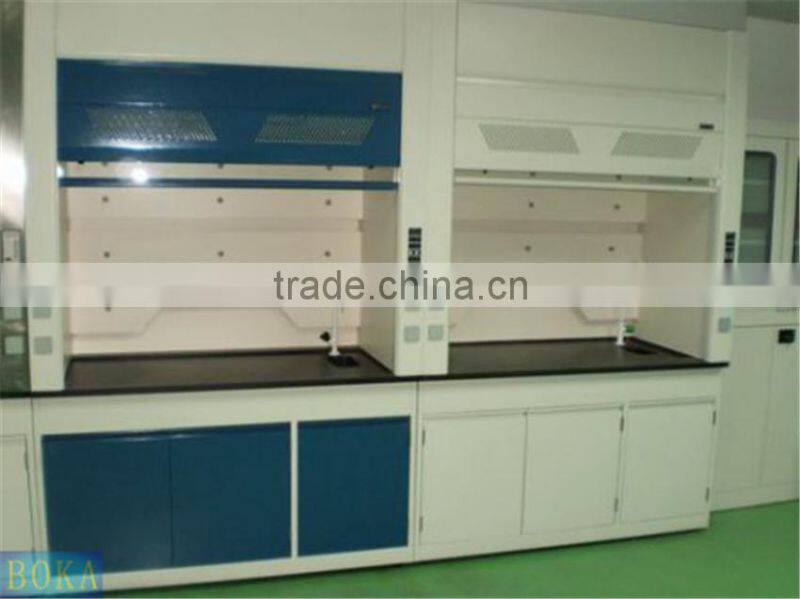

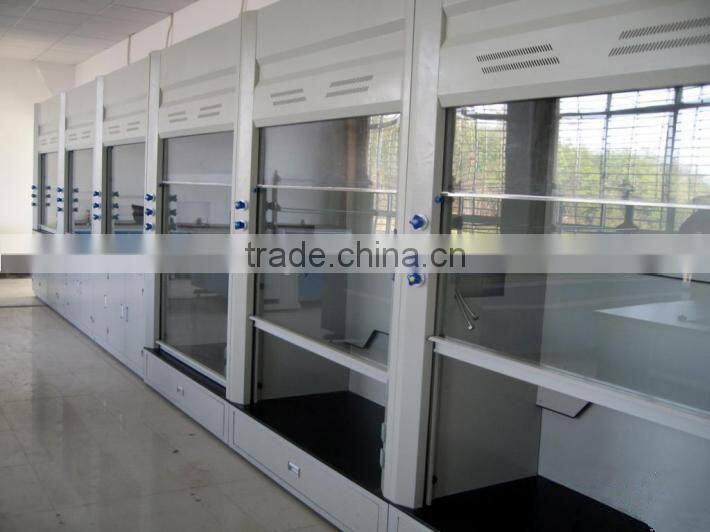

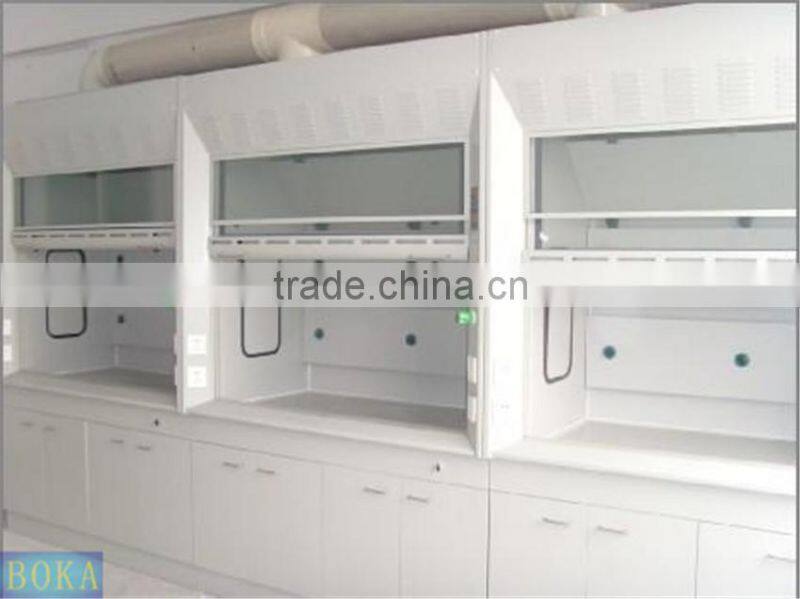

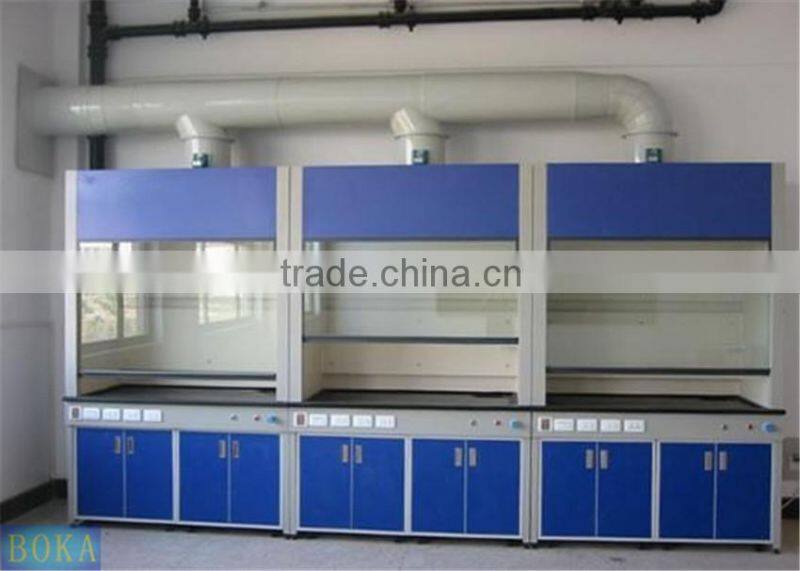

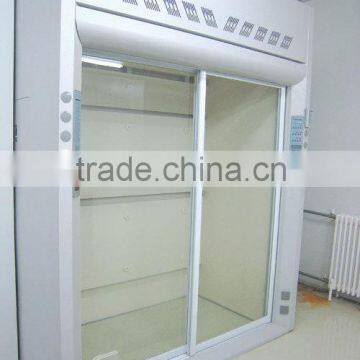

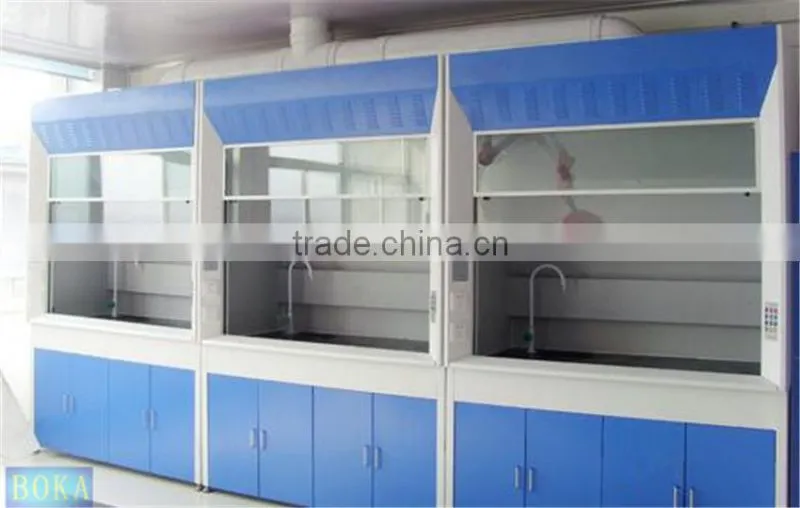

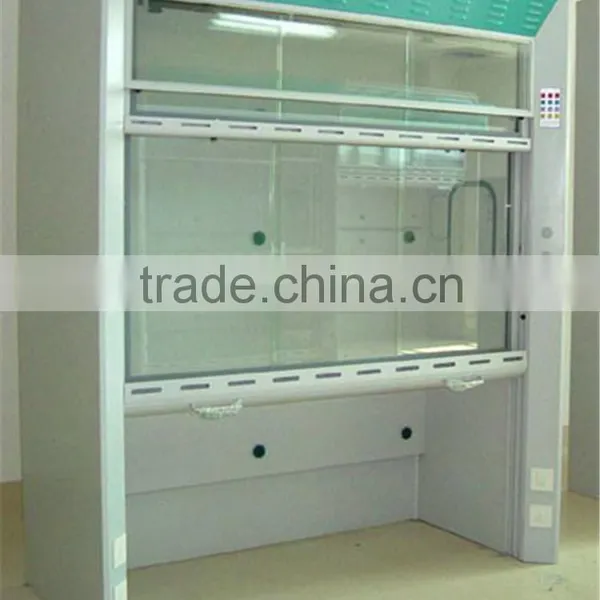

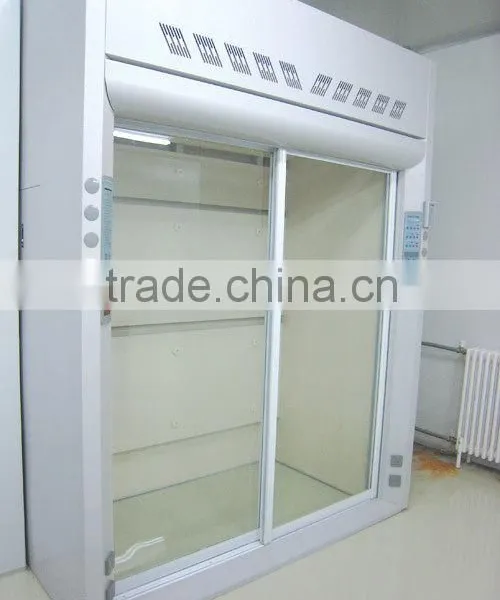

Walk-in laboratory fume cupboard details
Product Name | Walk-in laboratory fume cupboard |
| Dimension | 1200/1500/1800*800*2350mm |
| Color | Customer optional |
Frame structure | standard 60 ×40 ×1.5mm square steel tube spraying epoxy powder coating. other request by customer is available. |
| Cabinet body | using 1.0mm minimum thickness of cold-rolled steel ,coated with special chemical resistant epoxy sandblast powder coat for improved corrosion resistance. |
| Worktop | epoxy resin/phenolic resin/stainless steel/granite/marble for your option . |
Inner Liner | constructed from compact laminate .it is a high temperature and high pressure decorative plates,waterproof,resistant to moisture,resistant to impact,abrasion,acidcorrosion,heatresistance,it can prevent the accumulation of contaminants and keep gas,mist flow discharge. |
Baffle | made of compact ntrol the direction of air flow ,reduce reflux or whirlpool. |
Sash | the sash slides smoothly in a vertical manner.It is made of at least 6mm thick clear tempered glass to protect the user while providing excellent visibility. |
| Lighting | with no less than 300 Lux 30W fluorescent lamp |
Control Panel | used to control the start and stop of the fume hood,LCDdisplay,can be manually controlled to fan,light and volume. |
Accessory | water faucet and sink,gas valve,electric socket and others is available. |
Walk-in laboratory fume cupboard Tecinical data:
1) Operation cabinet door opening height :0-800 mm
2) Face wind speed :0.4-0 .6 m / s.
3) Noise: <60db
4) exhaust volume :1080-1700m3 / h
5) Working voltage: AC220V-380V
6) Motor power :0.09-4kw
Walk-in laboratory fume cupboard ventilation system
Lab supply air is engineered to meet designed air changes per hour.Good sash management is critical to a balanced and efficient lab system.Lab exhaust air is filtered by a carbon HEPA filter module to remove 99.99% of fumes and contaminates.Exhaust is next processed by the tubular centrifugal fan and safely propelled away from the building.
- All steel floor mounted lab furniture
- All steel C-frame lab furniture
- All steel H-frame lab furniture
- All steel Flexible lab furniture
- Steel frame and wood lab furniture
- All wood lab furniture
- Lab medical furniture
- Stainless steel lab furniture
- Laboratory accessories
- Lab equipment
- Lab fume hood
- Lab clean bench
- Lab safety storage cabinet
- Air shower
- Pass box
- Emergency Eye washer and shower
- Laminar flow cabinet
- Bio safety cabinet
- Lab engineering system: lab overall design&planing,lab renovation,lab ventilation&control system,lab clean zone system,lab purification&environmental system,lab purity gas&water piping system,lab sterilized&GMP system.lab analysis&testing instrument.lab medical diagnostic devices.
| Loading Port | GuangZhou,ShenZhen,any port nominated by customer. |
| Delivery Terms | EXW,FOB,CIF,CFR |
| MOQ | 1set |
| Delivery Period | 7-20days |
| Package | Bubble Film+Hard carton for FCL order.Bubble film+carton+wooden case for LCL order. |
| Payment | T/T,L/C,Western Union |
| Sample | material sample for free,lab furniture sample need to pay. |
| Contact information | Email:bokalabsystem.international#("#"="@") Mobile:0086 15899568868 Skype:bokalabinternational Contact Person:Ella |
