Guangzhou Boka Lab System Tech Co.,ltd Specializing in supplying lab furnitures, lab wall/island benches, tables, storage cabinets, lab fume hoods, Exhaust Hood, high-temperature table, balance table, Eyes washer, Emergency Eyes Washer and Shower, lab stool, lab water faucet, lab PP sink, safety cabinet, clean bench, Air Shower, Pass Box, hospital bed, hospital trolley and other medical equipments.
With the developing of time, our sales & design team have been dedicated to provide our clients with innovative products with competitive prices and prompt delivery.
BOKA in charge of a lot of lab projects(ventilation , clarification) at domestic market, we can assure you with our professional support under extensive experience.
Detail information of PP Fume Cupboard
Fume cupboard are widely used in the laobratoryenvironment.A fume hood is an engineered control device to protect the user from hazardous effects of substances
Product Name | Laboratory Fume Hood |
| Dimension | 1200/1500/1800*800*2350mm |
| Color | Customer optional |
Frame structure | standard 60 ×40 ×1.5mm square steel tube spraying epoxy powder coating. other request by customer is available. |
| Cabinet body | using 1.0mm minimum thickness of cold-rolled steel ,coated with special chemical resistant epoxy sandblast powder coat for improved corrosion resistance. |
| Worktop | epoxy resin/phenolic resin/stainless steel/granite/marble for your option . |
Inner Liner | constructed from compact laminate .it is a high temperature and high pressure decorativeplates,waterproof,resistant to moisture,resistant toimpact,abrasion,acidcorrosion,heatresistance,it can prevent the accumulation of contaminants and keep gas,mist flow discharge. |
Baffle | made of compact ntrol the direction of air flow ,reduce reflux or whirlpool. |
Sash | the sash slides smoothly in a vertical manner.It is made of at least 6mm thick clear tempered glass to protect the user while providing excellent visibility. |
| Lighting | with no less than 300 Lux 30W fluorescent lamp |
Control Panel | used to control the start and stop of the fume hood,LCDdisplay,can be manually controlled tofan,light and volume. |
Accessory | water faucet and sink,gas valve,electric socket and others is available. |
PP Fume Cupboard Tecinical data:
1) Operation cabinet door opening height :0-800 mm
2) Face wind speed :0.4-0 .6 m / s.
3) Noise: <60db
4) exhaust volume :1080-1700m3 / h
5) Working voltage: AC220V-380V
6) Motor power :0.09-4kw
Detail Images of PP Fume Cupboard

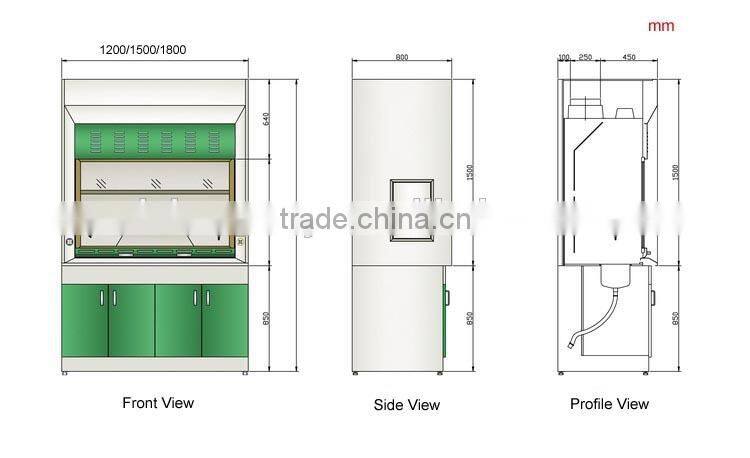

Multi views

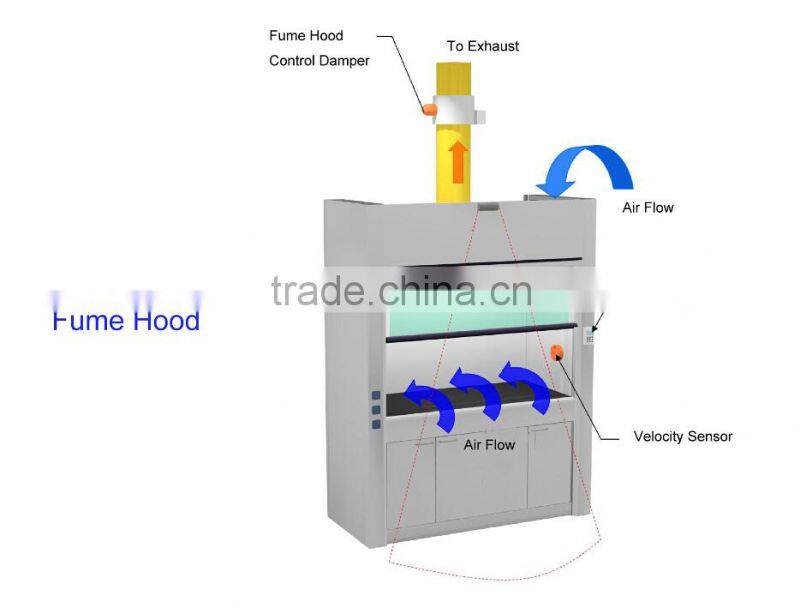

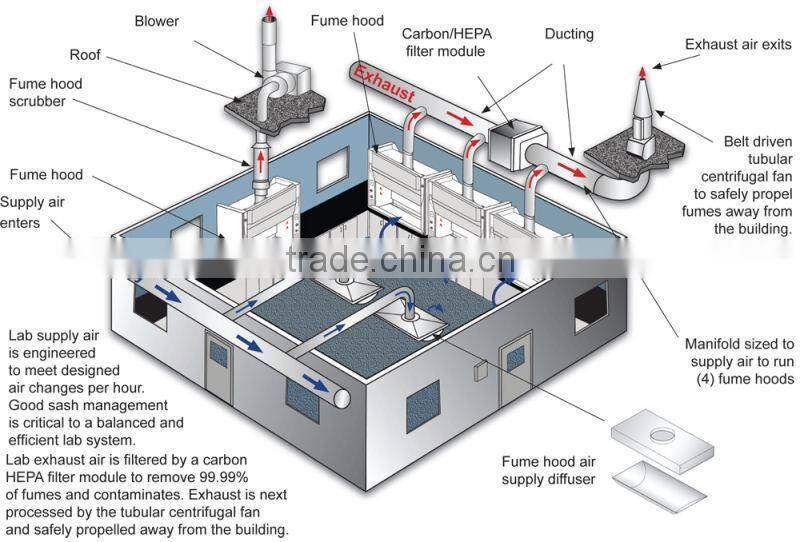

Ventilation system
Lab supply air is engineered to meet designed air changes per hour.Good sash management is critical to a balanced and efficient lab system.
Lab exhaust air is filtered by a carbon HEPA filter module to remove 99.99% of fumes and contaminates.
Exhaust is next processed by the tubular centrifugal fan and safely propelled away from the building.

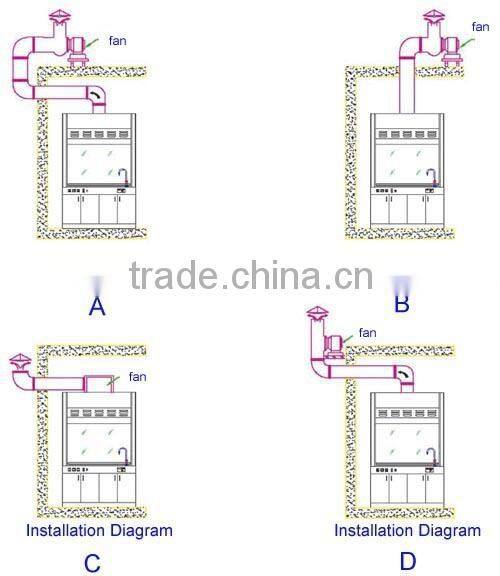

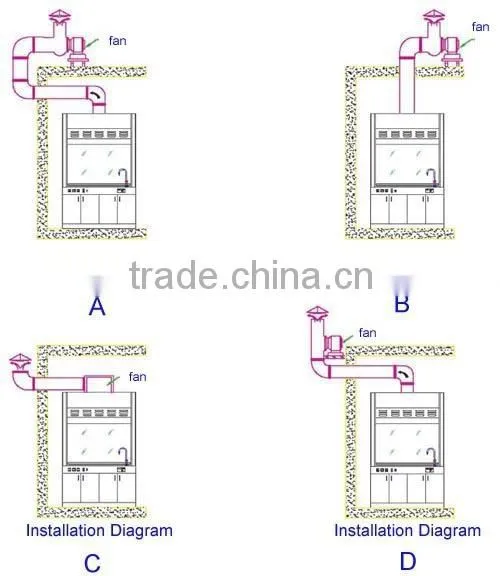

Installation Diagram of PP Fume Cupboard
