Home > Electrical & Electronics > Connector & Terminals > Terminals > 11kv Three Core Copper Conductor Heat Shrinkable Indoor Termination Heat Shrinkable Outdoor Terminal

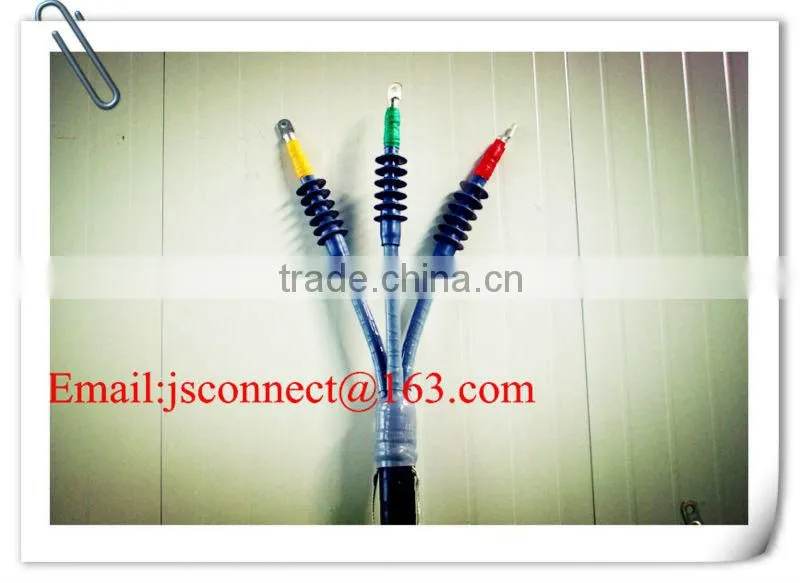

11kv Three Core Copper Conductor Heat Shrinkable Indoor Termination Heat Shrinkable Outdoor Terminal

Name: 11kv Three Core Copper Conductor Heat Shrinkable Indoor Termination Heat Shrinkable Outdoor Terminal
Brand: CONNECT
SKU: 112724093
Availability: InStock

11kv Three Core Copper Conductor Heat Shrinkable Indoor Termination Heat Shrinkable Outdoor Terminal thumbnail-1

11kv Three Core Copper Conductor Heat Shrinkable Indoor Termination Heat Shrinkable Outdoor Terminal photo-1

US$ 150 - 300 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

CONNECT

Model Number:

CN-WRS

Contact Supplier Request Quote Chat Now

Connect Cable Accessories Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name CONNECT

Model Number CN-WRS

Type Other, TERMINATION KITS

Specifications

1. Exported to India, Bangladesh,and so on.
2. Best imported equips assure best quality with good price
3. Professional team

Product Introduction:

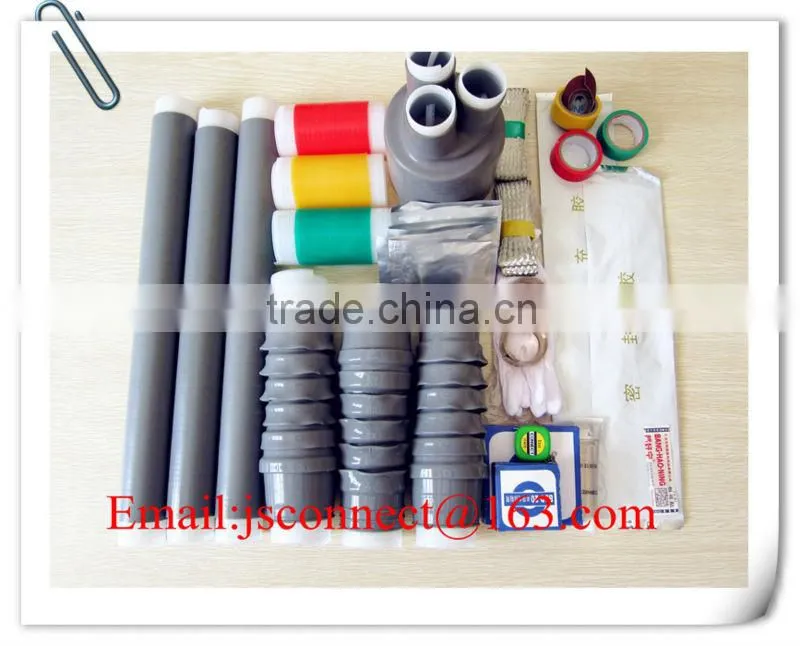

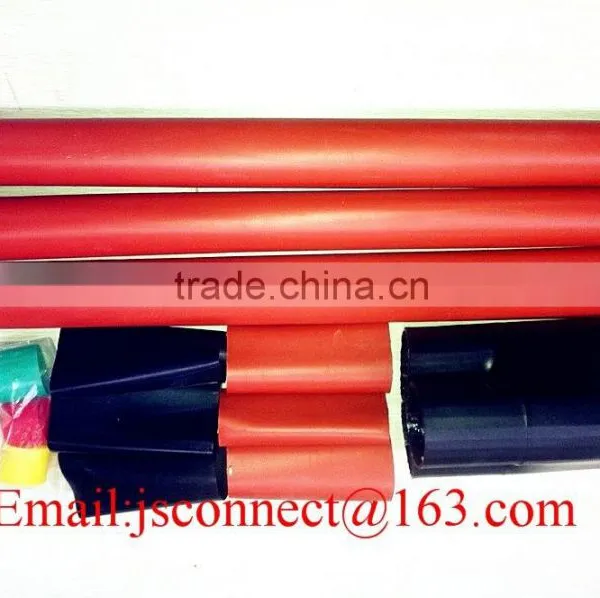

CN - NRS CN - WRS CN - JRS heat shrink cable accessories is applied to 33kV and below rubber cable. Heat shrink cable accessories is using import multiphase polymer, it’s the update products of wrapped type cable accessories. With convenient installation, keep on suitable radial pressure on the cable body, interface characteristic is good. The parameter type stress control tube to improve the distribution of the electric field, which can effectively solve the cable outer shield section in electric stress concentration problem. The electrical properties are improved from wrapped type cable accessories to ensure the safety and reliable operation. The main components are tubular, basically including stress tube, insulation tube, three fingered tube, sealed tube protective sleeve, etc.
Products Characteristic:
Technical performance: meet BS EN 50181, IEC60502, GB/T12706 requirements. Heat shrink

raw materials: stress tube is parameter type, well-distributed electric field at the insulating cable cut off place. Heat shrink is quite stable, can shrink to the original size in by heating, the residual deformation is small. All the products are processing forming in the factory. There’s no need to use fire, no special training, installation is simple and fast.
It has resistance to filth, aging, and good waterproof, with superior cold heat resistant performance.
Surface is smooth and beautiful.

CN - NRS CN - WRS CN – JRS heat shrink series cable accessories

CN - NRS CN - WRS CN – JRS heat shrink series cable accessories is applied to 35kv and below rubber cable. Heat shrink cable accessories is using import multiphase polymer, it’s the update products of wrapped type cable accessories. With convenient installation, keep on suitable radial pressure on the cable body, interface characteristic is good. the parameter type stress control tube to improve the distribution of the electric field, which can effectively solve the cable outer shield section in electric stress concentration problem. The electrical properties are improved from wrapped type cable accessories to ensure the safty and reliable operation. The main components are tubular, basically includinig stress tube, insulation tube, three fingeed tube, sealed tube protective sleeve, etc

Main performance and structure features:

Technical performance: meet BS EN 50181, IEC60502, GB/T12706 requirements.

Heat shrink raw materials: stress tube is parameter type, well-distributed electric field at the insulating cable cut off place. Insulatingtube has insilation effect, protective sleeve has protection effect. Product heat shrink is quite stable, can shrink to the orginal size in heating condition, the residual deformation is small. All the products are processing forming in the factory. There’s no need to use fire, no special training, installation is simple and fast.

It has resistance to filth, aging, and good waterproof, with superior cold heat resistant performance.

Surface is smooth and beautiful.

No	Name	Model	Voltage	Cable Cross section	Voltage	Cable Cross section	Remark
1	Heat shrink indoor terminal	CN-NRS-8.7/15-1	6/10	25~70mm²	8.7/15	25~50mm²
		CN-NRS-8.7/15-2		95~185mm²		70~150mm²
		CN-NRS-8.7/15-3		240~400mm²		185~300mm²
		CN-NRS-8.7/15-4		500~800mm²		400~630mm²
2	Heat shrink outdoor terminal	CN-WRS-8.7/15-1		25~70mm²		25~50mm²
		CN-WRS-8.7/15-2		95~185mm²		70~150mm²
		CN-WRS-8.7/15-3		240~400mm²		185~300mm²
		CN-WRS-8.7/15-4		500~800mm²		400~630mm²
3	Heat shrink middle joint	CN-JRS-8.7/15-1		25~70mm²		25~50mm²
		CN-JRS-8.7/15-2		95~185mm²		70~150mm²
		CN-JRS-8.7/15-3		240~400mm²		185~300mm²
		CN-JRS-8.7/15-4		500~800mm²		400~630mm²
4	Heat shrink indoor terminal	CN-NRS-26/35-1	21/35	50~150mm²	26/35	50~120mm²
		CN-NRS-26/35-2		185~300mm²		150~240mm²
		CN-NRS-26/35-3		400~500mm²		300~400mm²
		CN-NRS-26/35-4		630~800mm²		500~800mm²
5	Heat shrink outdoor terminal	CN-WRS-26/35-1		50~150mm²		50~120mm²
		CN-WRS-26/35-2		185~300mm²		150~240mm²
		CN-WRS-26/35-3		400~500mm²		300~400mm²
		CN-WRS-26/35-4		630~800mm²		500~800mm²
6	Heat shrink middle joint	CN-JRS-26/35-1		50~150mm²		50~120mm²
		CN-JRS-26/35-2		185~300mm²		150~240mm²
		CN-JRS-26/35-3		400~500mm²		300~400mm²
		CN-JRS-26/35-4		630~800mm²		500~800mm²

Typical Drawings for connectors/terminatals/terminations:

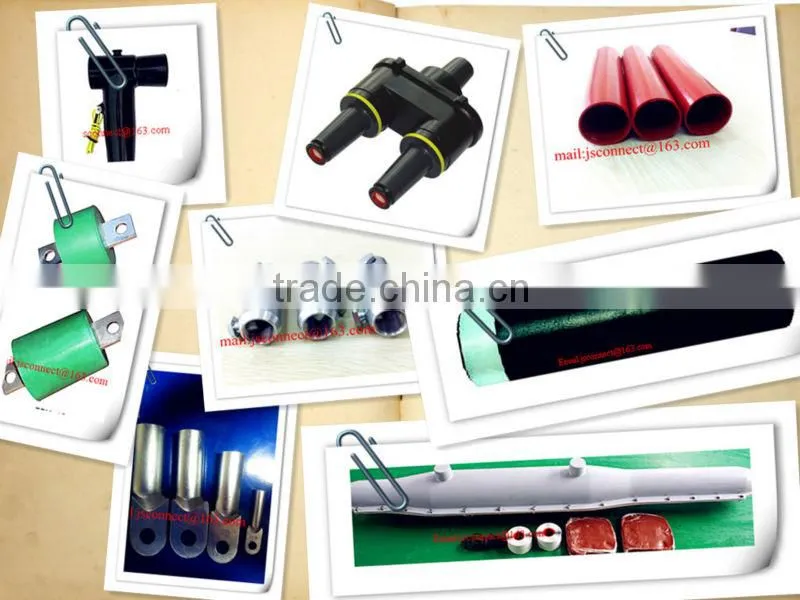

Other Products produced by us.

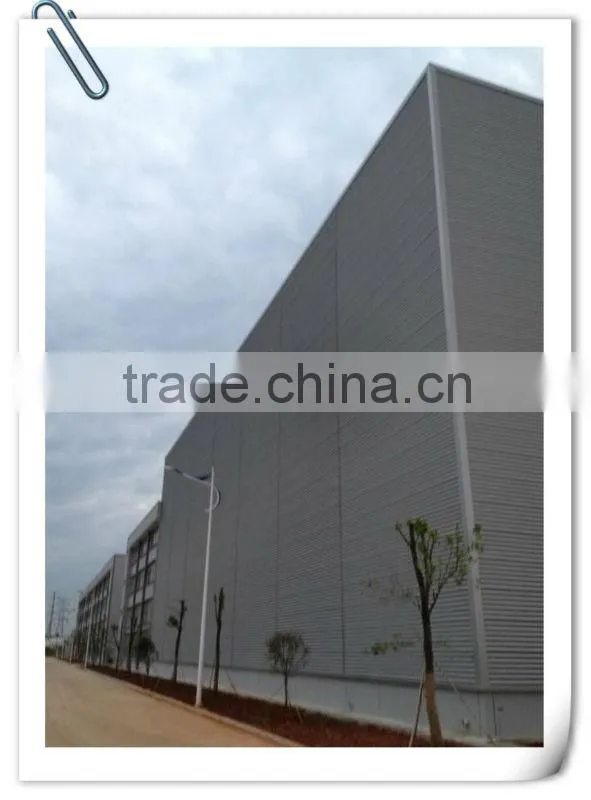

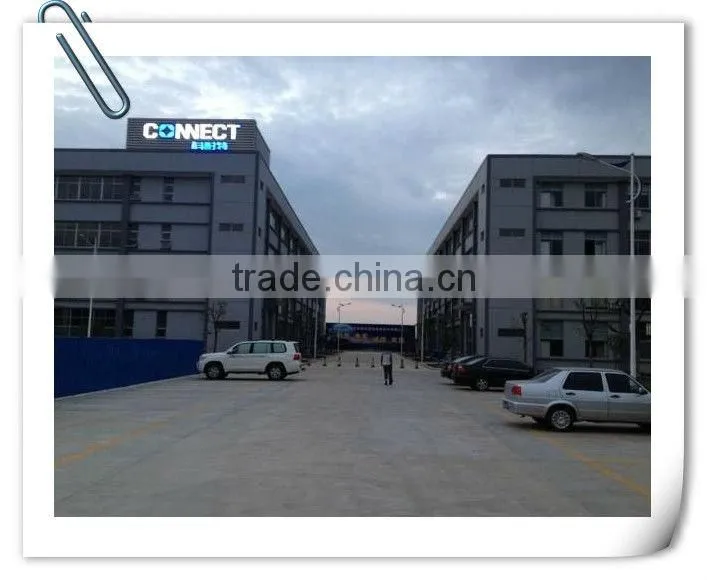

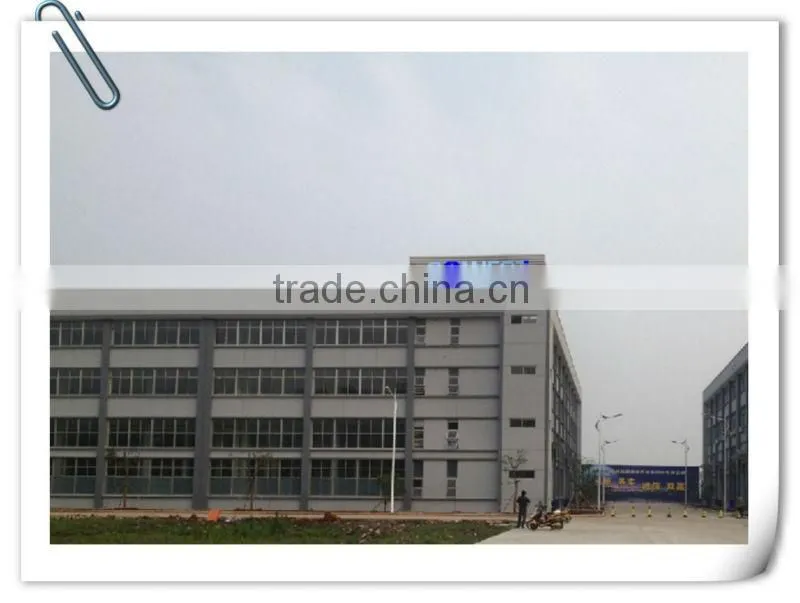

Workshops and Largest Testing Center in China in line of Cable Accessory

CONNECT Service:

Hi, I am Cecilia Zhang

I'm glad to serve you.

Now I want to list some information that I think you will be more interested in.

Want to get more info about our products and company? You can scan our home page () and click my link.

SKYPE:cecilia13148

QQ:1326235138

Thank you!

Why choose us?

Export to many countries including Iraq, Tanzania and Australia and USA.
Best manufacturing and testing equipments imported from Germany, USA and Japan guarantee the best quality with competitive prices.
Professional overseas team guarantees you best pre-and-after sale services.
Experienced engineers and workers for more than 20 years ensure the quality and customized products.
5S Management to enhance the qualifications of staff and make better service for customers.
Near Shanghai and Ningbo Port workshop makes it convenient to delivery on time.

CONNECT Cable Accessory promises:

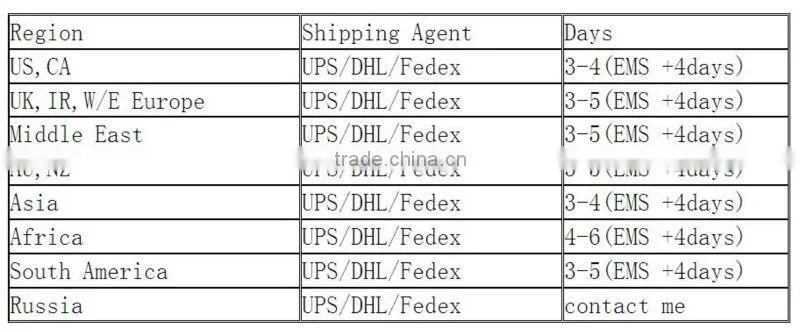

Shipping service:

(Only for light goods, and for heavy goods, they are ship by sea)

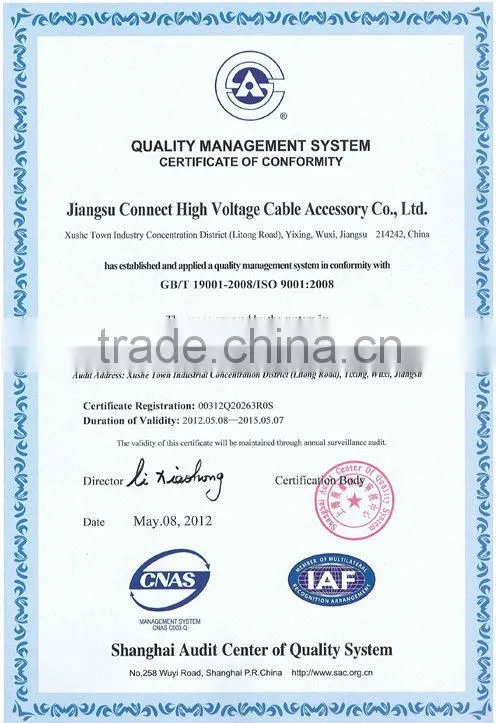

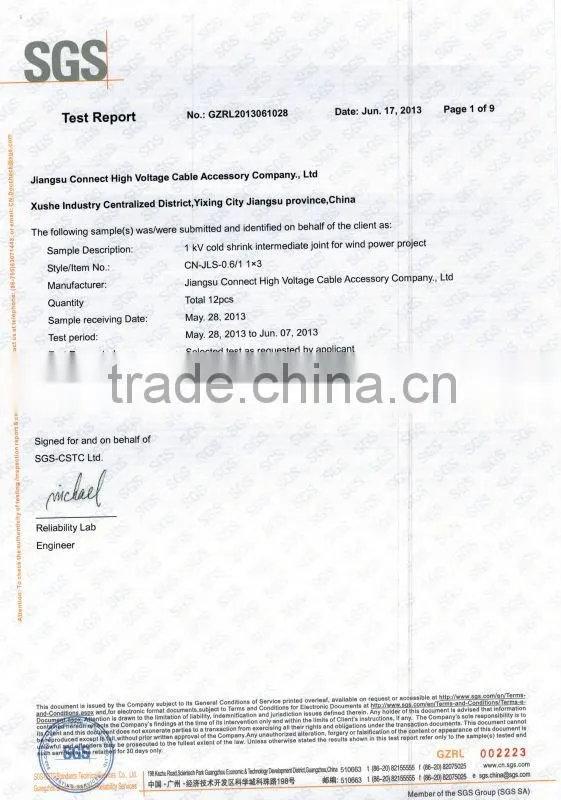

Produts Testing Certificates

The main products cover all series of 1kV~35kV LV&MV cold and heat shrinkable cable accessories;66kV~500kV high& ultra-high voltage cable accessories which include porcelain bushing cable terminal ,composite bushing ,all prefabricated soft Silicone Rubber Dry Outdoor Terminal ,Rigid dry outdoor terminal, pluggable dry GIS terminal, straight joints, insulating joints, fully insulating and sealing dry Y Type branch joints, conversion joints, inter-connected boxes, grounding boxes, and other support equipments. Copper, aluminum, copper and aluminum transitional devices of 16 ~2500mm2;cable clamps; devices for peeling and straightening cables; cable conveyors for 300~800kg,pay-off stand , devices for pulling and moving; rubber insulating tapes,semi-conductive tapes, waterproof tapes,etc.On specific customer demand ,a full range of cable design services are provided.
