low voltage cable joints heat shrinkable xlpe cable joints kits cable joint

Specifications

1.exported to middle east, east asia, africa, oceania and many other places.
2.good experience with best price.
fessional



CN - NRS CN - WRS CN – JRS heat shrink series cable accessories

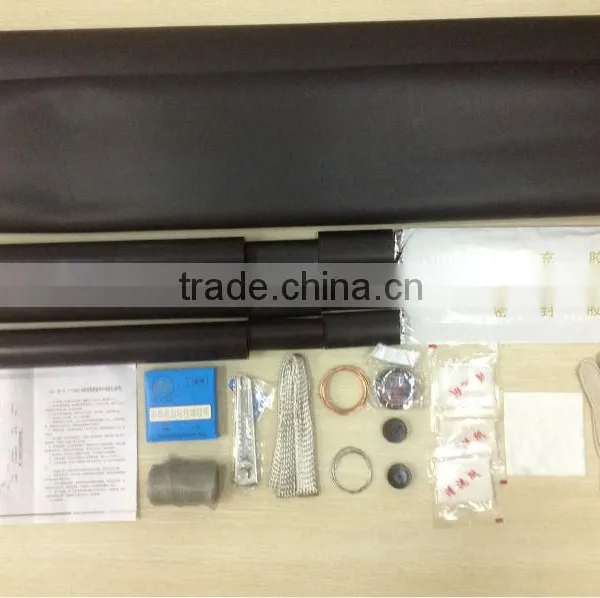

CN - NRS CN - WRS CN – JRS heat shrink series cable accessories is applied to 35kv and below rubber cable. Heat shrink cable accessories is using import multiphase polymer, it’s the update products of wrapped type cable accessories. With convenient installation, keep on suitable radial pressure on the cable body, interface characteristic is good. the parameter type stress control tube to improve the distribution of the electric field, which can effectively solve the cable outer shield section in electric stress concentration problem. The electrical properties are improved from wrapped type cable accessories to ensure the safty and reliable operation. The main components are tubular, basically includinig stress tube, insulation tube, three fingeed tube, sealed tube protective sleeve, etc





Main performance and structure features

   Technical performance: meet BS EN 50181, IEC60502, GB/T12706 requirements.

   Heat shrink raw materials: stress tube is parameter type, well-distributed electric field at the insulating cable cut off place. Insulatingtube has insilation effect, protective sleeve has protection effect. Product heat shrink is quite stable, can shrink to the orginal size in heating condition, the residual deformation is small. All the products are processing forming in the factory. There’s no need to use fire, no special training, installation is simple and fast.

   It has resistance to filth, aging, and good waterproof, with superior cold heat resistant performance.

   Surface is smooth and beautiful.





No	Name	Model	Voltage	Cable Cross section	Voltage	Cable Cross section	Remark
1	Heat shrink indoor terminal	CN-NRS-8.7/15-1	6/10	25~70mm²	8.7/15	25~50mm²
		CN-NRS-8.7/15-2		95~185mm²		70~150mm²
		CN-NRS-8.7/15-3		240~400mm²		185~300mm²
		CN-NRS-8.7/15-4		500~800mm²		400~630mm²
2	Heat shrink outdoor terminal	CN-WRS-8.7/15-1		25~70mm²		25~50mm²
		CN-WRS-8.7/15-2		95~185mm²		70~150mm²
		CN-WRS-8.7/15-3		240~400mm²		185~300mm²
		CN-WRS-8.7/15-4		500~800mm²		400~630mm²
3	Heat shrink middle joint	CN-JRS-8.7/15-1		25~70mm²		25~50mm²
		CN-JRS-8.7/15-2		95~185mm²		70~150mm²
		CN-JRS-8.7/15-3		240~400mm²		185~300mm²
		CN-JRS-8.7/15-4		500~800mm²		400~630mm²
4	Heat shrink indoor terminal	CN-NRS-26/35-1	21/35	50~150mm²	26/35	50~120mm²
		CN-NRS-26/35-2		185~300mm²		150~240mm²
		CN-NRS-26/35-3		400~500mm²		300~400mm²
		CN-NRS-26/35-4		630~800mm²		500~800mm²
5	Heat shrink outdoor terminal	CN-WRS-26/35-1		50~150mm²		50~120mm²
		CN-WRS-26/35-2		185~300mm²		150~240mm²
		CN-WRS-26/35-3		400~500mm²		300~400mm²
		CN-WRS-26/35-4		630~800mm²		500~800mm²
6	Heat shrink middle joint	CN-JRS-26/35-1		50~150mm²		50~120mm²
		CN-JRS-26/35-2		185~300mm²		150~240mm²
		CN-JRS-26/35-3		400~500mm²		300~400mm²
		CN-JRS-26/35-4		630~800mm²		500~800mm²
