heat shrink series cable accessories
heat shrink series cable accessories is applied to 35kv and below rubber cable. Heat shrink cable accessories is using import multiphase polymer,
it’s the update products of wrapped type cable accessories. With convenient installation, keep on suitable radial pressure on the cable body, interface
characteristic is good. the parameter type stress control tube to improve the distribution of the electric field, which can effectively solve the cable outer
shield section in electric stress concentration problem. The electrical properties are improved from wrapped type cable accessories to ensure the safty
and reliable operation. The main components are tubular, basically includinig stress tube, insulation tube, three fingeed tube, sealed tube protective sleeve, etc
Main performance and structure features
Technical performance: meet BS EN 50181, IEC60502, GB/T12706 requirements.
Heat shrink raw materials: stress tube is parameter type, well-distributed electric field at the insulating cable cut off place. Insulatingtube has insilation
effect, protective sleeve has protection effect. Product heat shrink is quite stable, can shrink to the orginal size in heating condition, the residual deformation
is small. All the products are processing forming in the factory. There’s no need to use fire, no special training, installation is simple and fast.
It has resistance to filth, aging, and good waterproof, with superior cold heat resistant performance.
Surface is smooth and beautiful.
No |
Name |
Model |
Voltage |
Cable Cross section |
Voltage |
Cable Cross section |
Remark |
1 |
Heat shrink indoor terminal |
CN-NRS-8.7/15-1 |
6/10 |
25~70mm² |
8.7/15 |
25~50mm² |
|
CN-NRS-8.7/15-2 |
95~185mm² |
70~150mm² |
|
||||
CN-NRS-8.7/15-3 |
240~400mm² |
185~300mm² |
|
||||
CN-NRS-8.7/15-4 |
500~800mm² |
400~630mm² |
|
||||
2 |
Heat shrink outdoor terminal |
CN-WRS-8.7/15-1 |
25~70mm² |
25~50mm² |
|
||
CN-WRS-8.7/15-2 |
95~185mm² |
70~150mm² |
|
||||
CN-WRS-8.7/15-3 |
240~400mm² |
185~300mm² |
|
||||
CN-WRS-8.7/15-4 |
500~800mm² |
400~630mm² |
|
||||
3 |
Heat shrink middle joint |
CN-JRS-8.7/15-1 |
25~70mm² |
25~50mm² |
|
||
CN-JRS-8.7/15-2 |
95~185mm² |
70~150mm² |
|
||||
CN-JRS-8.7/15-3 |
240~400mm² |
185~300mm² |
|
||||
CN-JRS-8.7/15-4 |
500~800mm² |
400~630mm² |
|
||||
4 |
Heat shrink indoor terminal |
CN-NRS-26/35-1 |
21/35 |
50~150mm² |
26/35 |
50~120mm² |
|
CN-NRS-26/35-2 |
185~300mm² |
150~240mm² |
|
||||
CN-NRS-26/35-3 |
400~500mm² |
300~400mm² |
|
||||
CN-NRS-26/35-4 |
630~800mm² |
500~800mm² |
|
||||
5 |
Heat shrink outdoor terminal |
CN-WRS-26/35-1 |
50~150mm² |
50~120mm² |
|
||
CN-WRS-26/35-2 |
185~300mm² |
150~240mm² |
|
||||
CN-WRS-26/35-3 |
400~500mm² |
300~400mm² |
|
||||
CN-WRS-26/35-4 |
630~800mm² |
500~800mm² |
|
||||
6 |
Heat shrink middle joint |
CN-JRS-26/35-1 |
50~150mm² |
50~120mm² |
|
||
CN-JRS-26/35-2 |
185~300mm² |
150~240mm² |
|
||||
CN-JRS-26/35-3 |
400~500mm² |
300~400mm² |
|
||||
CN-JRS-26/35-4 |
630~800mm² |
500~800mm² |
|
Product keywords:
cable accessory, power cable accessory, XLPE cable accessory, low voltage cable accessory, LV cable accessory,
indoor cable accessory, indoor power cable accessory, indoor XLPE cable accessory, indoor low voltage cable accessory, indoor LV cable accessory,
indoor heat shrinkable cable terminals, indoor heat shrinkable power cable terminals, indoor heat shrinkable XLPE cable terminals, indoor heat shrinkable
low voltage cable terminals, indoor heat shrinkable LV cable terminals,
indoor heat shrinkable low voltage cable termination kits, indoor heat shrinkable LV cable termination kits, indoor heat shrinkable cable termination kits,
indoor heat shrinkable power cable t termination kits, indoor heat shrinkable XLPE cable termination kits, indoor heat shrinkable low voltage cable
termination kits, indoor heat shrinkable LV cable termination kits,
indoor heat shrinkable low voltage cable termination, indoor heat shrinkable LV cable termination, indoor heat shrinkable cable termination, indoor heat
shrinkable power cable t termination, indoor heat shrinkable XLPE cable termination, indoor heat shrinkable low voltage cable termination, indoor
heat shrinkable LV cable termination,
indoor heat shrinkable low voltage cable joints, indoor heat shrinkable LV cable joints, indoor heat shrinkable cable joints, indoor heat shrinkable power
cable joints n, indoor heat shrinkable XLPE cable joints, indoor heat shrinkable low voltage cable joints, indoor heat shrinkable LV cable joints,
indoor heat shrinkable low voltage cable joint kits, indoor heat shrinkable LV cable joint kits, indoor heat shrinkable cable joint kits, indoor heat shrinkable
power cable joint kits n, indoor heat shrinkable XLPE cable joint kits, indoor heat shrinkable low voltage cable joint kits, indoor heat shrinkable LV cable joint kits,
indoor heat shrinkable low voltage cable straight through joints, indoor heat shrinkable LV cable straight through joints, indoor heat shrinkable cable straight
through joints, indoor heat shrinkable power cable straight through joints n, indoor heat shrinkable XLPE cable straight through joints, indoor heat shrinkable
low voltage cable straight through joints, indoor heat shrinkable LV cable straight through joints,

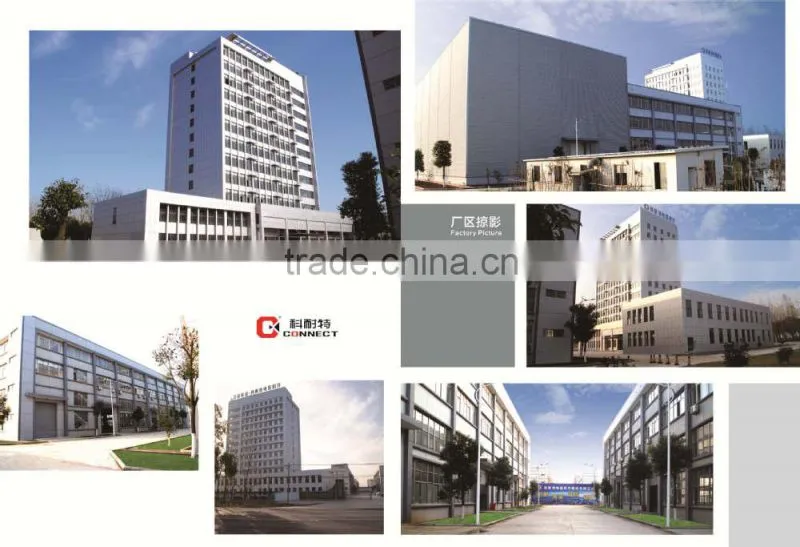

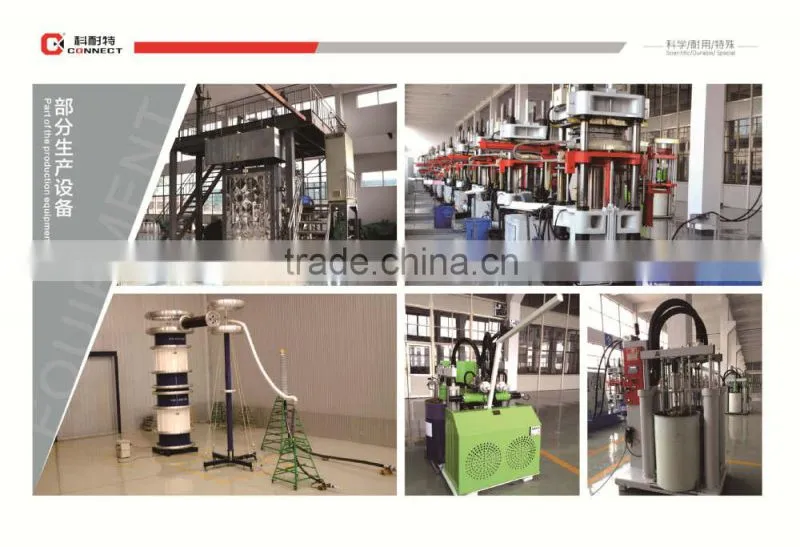

Workshops:
