outdoor indoor cold shrinkable MV cable termination

 10kV  15kV Cold Shrinkable Cable Termination Kits Cable Accessories

Product Introduction:

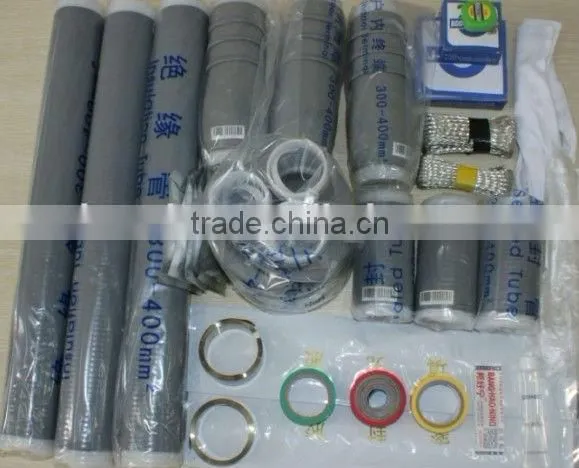

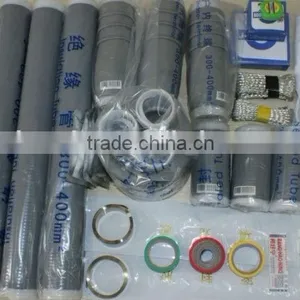

     CN-NLS cold shrinkable indoor termination, CN-WLS cold shrinkable outdoor termination, CN-JLS cold shrinkable straight through joint are mainly composed of prefabricate main body, terminal lug, cold shrinkable breakout, cold shrinkable insulating tube, phase color tube. The stress cone inside prefabricate main body and the insulating body adopt imported liquid silicone rubber injecting formed which has long-term stability of lasting hold power and electric field uniform ability. Keep a suitable radial pressure to the cable with good property of interface, there is no creepage raise from respiration when cable runs. Cable lugs and other supporting materials are based on customers’ requirement, ensure cable insulating and waterproof.

Product Characteristics:

      Excellent raw-material: prefabricate main body is adopts high quality liquid silicone rubber, which has excellent insulation, elongation, and breakdown properties, small residual deformation after expansion.

Cold shrink structure: using latest expansion equipment and expansion support tube to ensure product expand without break.

Easy installation: using cold shrinkable expansion structure, there’s no need special training, convenient installation.

Standard

Range Applied:

Model Table

     N stands for cable cores.

CN - NRS CN - WRS CN – JRS heat shrink series cable accessories

CN - NRS CN - WRS CN – JRS heat shrink series cable accessories is applied to 35kv and below rubber cable. Heat shrink cable accessories is using import multiphase polymer, it’s the update products of wrapped type cable accessories. With convenient installation, keep on suitable radial pressure on the cable body, interface characteristic is good. the parameter type stress control tube to improve the distribution of the electric field, which can effectively solve the cable outer shield section in electric stress concentration problem. The electrical properties are improved from wrapped type cable accessories to ensure the safty and reliable operation. The main components are tubular, basically includinig stress tube, insulation tube, three fingeed tube, sealed tube protective sleeve, etc

 Main performance and structure features:

Technical performance: meet BS EN 50181, IEC60502, GB/T12706 requirements.

Heat shrink raw materials: stress tube is parameter type, well-distributed electric field at the insulating cable cut off place. Insulatingtube has insilation effect, protective sleeve has protection effect. Product heat shrink is quite stable, can shrink to the orginal size in heating condition, the residual deformation is small. All the products are processing forming in the factory. There’s no need to use fire, no special training, installation is simple and fast.

It has resistance to filth, aging, and good waterproof, with superior cold heat resistant performance.

Surface is smooth and beautiful.

  Typical Drawings for connectors/terminatals/terminations:

Other Products produced by us.

Workshops and Largest Testing Center in China in line of Cable Accessory

CONNECT Service:

Hi, I am Cecilia Zhang

I'm glad to serve you.

Now I want to list some information that I think you will be more interested in.

Want to get more info about our products and company? You can scan our home page () and click my link.

SKYPE:cecilia13148

QQ:1326235138

Thank you!

Why choose us?

1. Export to many countries including Iraq, Tanzania and Australia and USA.
2. Best manufacturing and testing equipments imported from Germany, USA and Japan guarantee the best quality with competitive prices.
3. Professional overseas team guarantees you best pre-and-after sale services.
4. Experienced engineers and workers for more than 20 years ensure the quality and customized products.
5. 5S Management to enhance the qualifications of staff and make better service for customers.
6. Near Shanghai and Ningbo Port workshop makes it convenient to delivery on time.

 CONNECT Cable Accessory promises:

Shipping service:

(Only for light goods, and for heavy goods, they are ship by sea)

 Produts Testing Certificates

 The main products cover all series of  1kV~35kV LV&MV cold and heat shrinkable cable accessories;66kV~500kV high& ultra-high voltage cable accessories which include porcelain bushing cable terminal ,composite bushing ,all prefabricated soft Silicone Rubber Dry Outdoor Terminal ,Rigid dry outdoor terminal, pluggable dry GIS terminal, straight joints, insulating joints, fully insulating and sealing dry Y Type branch joints, conversion joints, inter-connected boxes, grounding boxes, and other support equipments. Copper, aluminum, copper and aluminum transitional devices of 16 ~2500mm2;cable clamps; devices for peeling and straightening cables; cable conveyors for 300~800kg,pay-off stand , devices for pulling and moving; rubber insulating tapes,semi-conductive tapes, waterproof tapes,etc.On specific customer demand ,a full range of cable design services are provided.
