Help CenterManifold Pulse Test Bench
Related Products
Specifications
Impulse Test MachineISO9001
Human-machine interactive dialog operation
Medium:Hydraulic oil
Max. pulse pressure:80Mpa

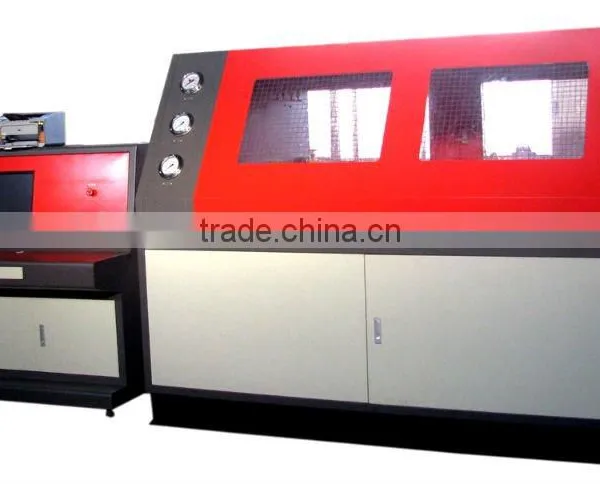

Impulse Test Benches include SPT80 Model are specialized test rigs to provide pressure,impulse as well as deflection and vibration etc. functional testing for various hydraulic hoses,automobile and aeronautic components.They are powered by hydraulic pump motor and use Shineeast hydraulic pump for oil pressurization.Pulse pressure up to maximally 80Mpa.Test medium of Hydraulic oil ISO VG46 or ISO VG32.
Applications
- Impulse tests of hydraulic hose lines using in construction machinery, mining machinery,aeronautic hoses, valves,vessels and automobile pumpbrake system or components,power steering etc
- Deflection, vibration and etc. functional testings available
Key features and advantages
- Separate testing and driven system. Available for easily temperature control as well as powering a variety of mediums,such as oil,water or non-corrosive liquids
- Control units with IPC and PLC
- Real-time monitoring as well as data recorded on high-speed sampling cards and also curves printing
- Alarming at due time bursting and due point recording
- A variety of tooling fixtures meeting with different mounting method requirements
- Non-welded pipeline system
- Industrial control configuration software or on LABVIEW
- Deflection and vibration functional testing for option
Technical parameters
Type | SPT80 |
Max. pulse pressure | 80Mpa |
Test medium | Hydraulic oil ISO VG46 or ISO VG32 |
Test medium temperature range | Room temperature to 120 degrees centigrade |
Enviroment temperature | Room temperature |
Pressure source | Shineeast hydraulic oil pump |
Power source | Hydraulic pump motor |
Energy demand(Power supply) | 45KW |
Control unit | PC and PLC |
Pulse frequency | 0-1.25Hz |
Deflection frequency | 0.5-1.0Hz |
Vibration frequency | 10-50Hz |
Dimensions of the test chamber (width x depth x height) approx. | 2350×1600×1850mm |
