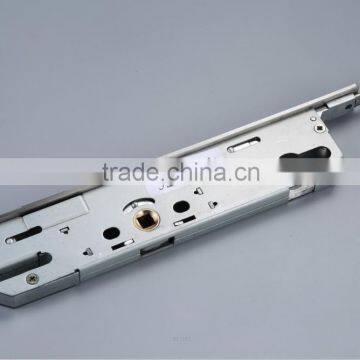

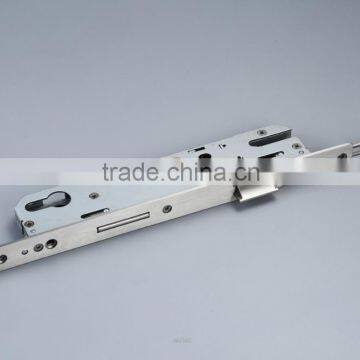

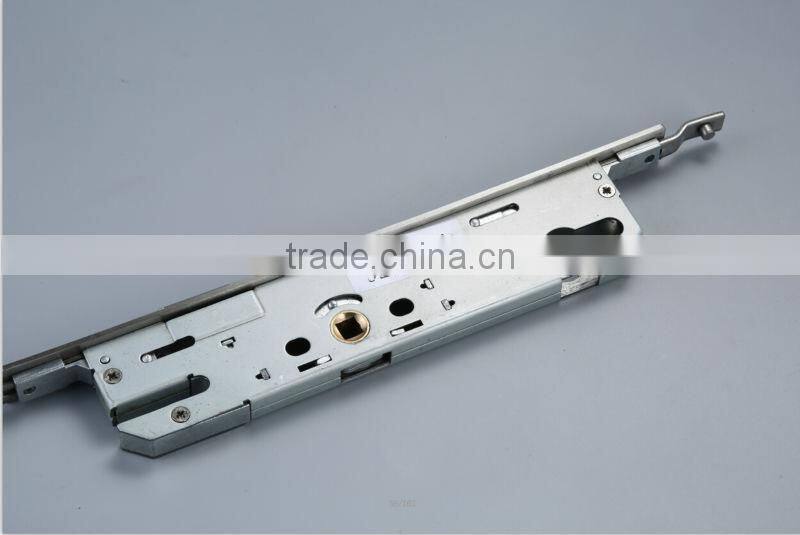

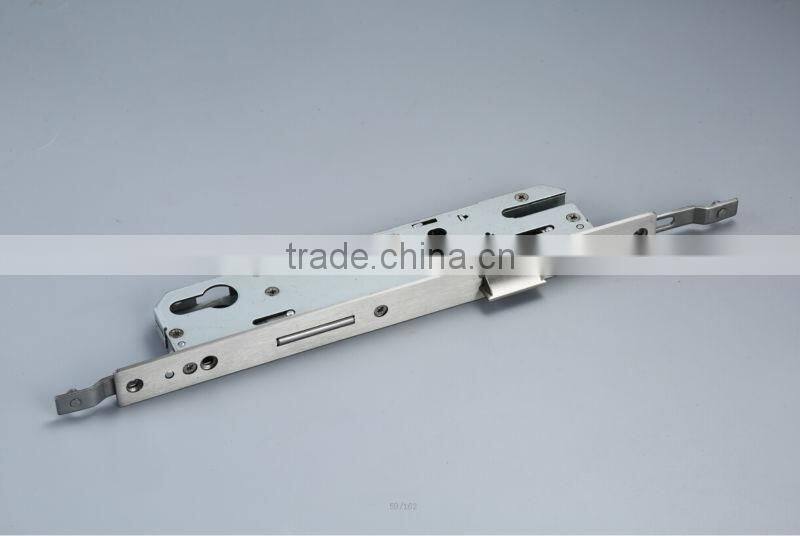

Help CenterAluminum Door High Security Multipoint Window Door Lock Body 9235
Related Products
-
Aluminum Door / Window / Casement Multipoint Mortise Door Mortise Lock Body 9228/9229/9232/9234/9235NegotiableMOQ: 1000 Pieces -
8534 Roll Ball Multipoint LockNegotiableMOQ: 1000 Pieces
-
Aluminum Door Security Casement Multipoint Mortise Door Mortise Lock Body 8529/8534/8533NegotiableMOQ: 1000 Pieces
-
High Quality Mid-East Market Mortise Door Lock Body 5845NegotiableMOQ: 2000 Pieces
-
High Quality 55mm Single Deadbolt Door Lock BodyNegotiableMOQ: 2000 Pieces
Installation
1.Put mortise lock body into mortise in door edge. Move door towards door frame and analyze latch placement to make sure beveled face of latch is pointed towards door frame.
2. If latch is turned the wrong way, change direction of latch.
3. Mark location of holes on top and bottom of lock body faceplate and remove mortise lock body.
4. Drill holes in door edge, replace lock and install self -tapping screws to hold lock body in place in door edge.
5. Insert spindle through face of door panel in handle-hole.
6. Place interior and exterior handles on either side of the door over the spindle. Install self-tapping screws to hold handles in place, but do not fully tighten handles until after cylinder is in place.
7. Insert key in cylinder to turn lock cam to the up position. Insert cylinder in cylinder hole from interior side to ensure that thumb turn is on inside of door and keyed side is on ouside.
8. In stall cylinder screw through door edge to hold cylinder in place in lock body.
9. Tighten screws holding handles in place.
10. Check that lock operates correctly before closing door.
11. Throw deadbolt by turning thumb turn or using key.
12. Mark where deadbolt and latch hit door jamb and mortise holes if necessary.
13.In stall strike plate in proper location.
1.Mid-East market standard 9235mm lock body
2.304 stainless steel forend & strike, zinc alloy latch & bolt, steel lock case
3.with various specification availble(9228/29/33/34/35)
4.Italy design technology
5.Automated production equipment
6.High quality and low price
7.Delivery in time and never postpone
Product Name : |
multi lock body |
Model No. : |
92 x 35 |
Brand : |
Huayili |
Material : |
SS,zinc,Brass,Iron |
Finish : |
SS , AC , AB , PVD,GP |
Lock Cylinder : |
Brass /zinc/aluminum cylinder |
Keys : |
common or computer keys |
Backset : |
92 x 35mm or as request |
Door Thickness : |
28/29/33/34mm |
Function : |
ET, BK, PS |
| Packaging Detail : | 30pcs/Carton or as Customer requirement |
MEAS : |
as diagram |
Monthly Production Capacity : |
260,000pcs |
