Help Center8.9inch Touch Screen Panel Used on Tablet pc
Related Products
Specifications
8.9inch Touch Screen Panel used on tablet pc1. Sealable against:dust ,water, oil, static
2.touch screen for tablet pc/gps
----*----8.9inch Touch Screen Panel used on tablet pc---*----
---*---8---Professional Workman---*---8---
---*---8---Dust-free Workshop---*---*---
Constrcution |
Glass, uniform resistive coating, polyester coversheet, transparent insulating dots, conductive coating |
---*---8---Touch Screen Panel Application Occasion---*---8---

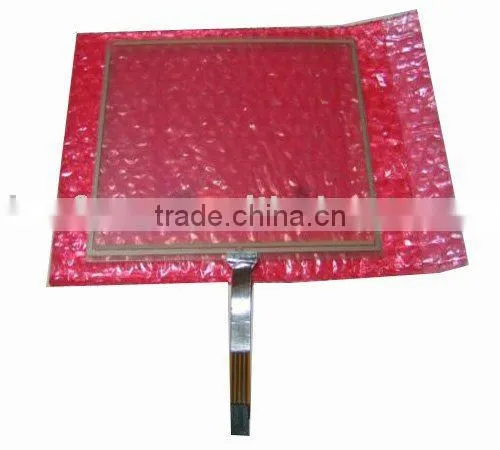

8.9inch Touch Screen Panel used on tablet pc
1.1 Environmental characteristics
NO. |
Item |
Specification |
1 |
Operation temperature |
-20°C~+50°C |
2 |
Storage temperature |
-30°C~+85°C |
1.2 Electrical characteristics
NO. |
Item |
Specification |
Remarks |
1 |
Rated Voltage |
DC 5V 25mA |
|
2 |
Linearity |
≤1.5% |
Load 120gf |
3 |
Resistance |
Film side: 200Ω~1250Ω |
FPC At connector |
Glass side:100Ω~500Ω | |||
4 |
Insulation Resistance |
≥20 MΩ |
DC 25V |
1.3 Mechanical characteristics
NO. |
Item |
Specification |
Remarks |
1 |
Operating force |
20-120g |
R0.8 |
2 |
Hardness of surface |
≥3H |
JISK5400 |
3 |
Light Transmission |
≥80% |
|
4 |
FPC Bending |
Bend radius 1.0mm,above 3 times |
Content 3.2 |
5 |
FPC peeling strength |
Horizontal direction 180degree,0.5kgf Will not peel within 10 minutes |
Content 3.2 |
1.4 Reliability test
NO. |
Item |
Specification |
Remarks |
1 |
High temperature storage |
70°C, 40hr |
|
2 |
Low temperature storage |
-20°C, 40hr |
|
3 |
High temperature high Humidity storage |
70°C,90%RH,120hr |
|
4 |
Temperature Cycling |
-20±2°C — 70±2°C (0.5hr each),10cycles |
|
5 |
Input life |
More than 5,000,000 times (Tip R0.8mm) |
|
6 |
lineation test |
More than 100,000 times (Tip R0.8mm) |
|
At your disposal for any further information.
