Thin Film Switch

Shenzhen Lunfeng Technology Co., Ltd.
Thin Film Switch thumbnail-1
Thin Film Switch photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China

Specifications

thin film switch:
1.Humidity:40C,90%-95%,240 hours
2.Contact bounce:5ms
3.life:flat type more than 500 million times

thin film switch Key Specifications/Special Features:

Material: matte PC (smooth), gloss PC + matte oil, gloss PC, PET, and PVC

Thickness: 0.05---1.0mm

LED windows: transparent,translucent,matte

Embossed keys: no embossed keys and domes, domes without embossed keys, embossed keys without domes, embossed keys and domes

Adhesive: 3M9448,3M9080,3M467,3M468, and no adhesive

Tail: tail with clear mask or green mask



Specialize in manufactuing membrane switch:

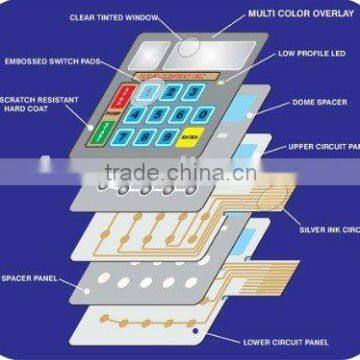

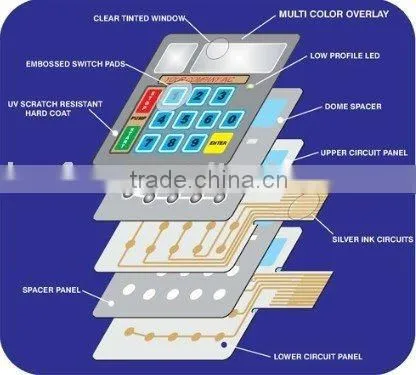

Overlay+circuit+LED+metal dome or poly dome array+connector+double side tape
EL backlight+Rubber keys
Aluminum plate+Rubber keys
Metal domes
Flat without Tactile Effect
Embossing with Tactile Effect
Embossing with Metal Dome
Membrane Switch with FPC

Performance indicators:
1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)
Insulation resistance:> 100MΩ 250V DC
Contact bounce: ≤ 5ms     Dielectric withstand:250VRms (50-60Hz 1min)
Life expectancy: flat type ≥ 500 million times, tactile type: ≥ 100 million times
2. Mechanical Properties  Actuation force:flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz)  Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating Temperature: -40 C- +80 C, Storage temperature: -40 C - +85 C
Humidity: 40C , 90% -95%, 240 hours
