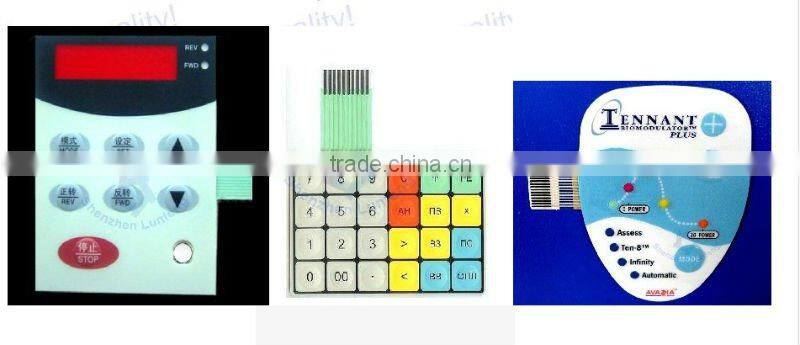

Nameplate With Membrane Switches Tactile Feel Metal Dome and Rubber Keypad With a Big LED Window

Specifications

Metal Nameplate Membrane switch
1.Tactile Feelmetal dome Rubber Keypad
2.full-color silk printing LED windows
3.100%& test

We can custom-made Metal Nameplate for you!

Welcome to inquiry, we would be pleased to give you best offer upon receiving your detailed requirement.



Shenzhen Lunfeng Nameplate Co., Ltd

1. 15years of manufacture experience in Shenzhen, China
2. Specialize in membrane switch, membrane keypad, membrane keyboard, graphic overlay, touch screen, nameplate…
3. Passed ISO9001:2008
4. Over 600 stable customers at home and abroad



Nameplate with Membrane Switches Tactile Feel Metal Dome and Rubber Keypad with a big LED window

Key Specifications/Special Features:

• Membrane faceplate, graphic overlay, membrane switch embossed metal dome 5 keys and enterprise logo 3 M467/3M468, 3M9448 stick

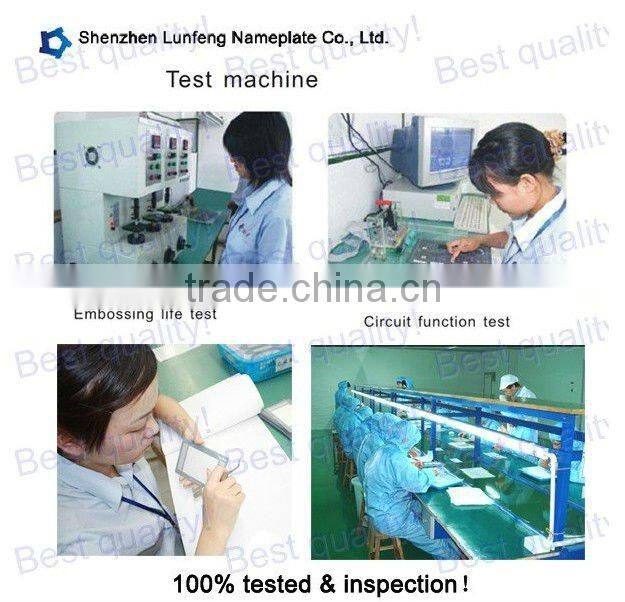

• 100% quality tested
• Long lifespan expectancy
• LED light can be installed
• FPC, single side circuit
• Flexible circuits switch SMT and EL backlight
• Flat keys or tactile type
• Embossed button with good tactile feel
• Pre-assemble with or without metal domes
• Water-resistant, dust-proof, gas-proof
• Performance indicators:
  • Circuit rating: 35V (DC), 100mA, 1W
  • Contact resistance: 10 to 500Ω (according the trace length and materials to confirm)
  • Insulation resistance: >100MΩ 250V DC
  • Contact bounce: ≤5ms
  • Dielectric withstand: 250VRms (50 to 60Hz 1min)
  • Lifespan expectancy: flat type ≥5 million times
  • Tactile type: ≥ 1 million times
  • Mechanical properties actuation force: flat type 57 to 284g (2-10 Oz), tactile type 170 to 397g (6 to 14oz)
  • Switch stroke: flat type 0.1 to 0.5mm, tactile type 0.6 to 1.5mm
  • Environmental parameters
    • Operating temperature: -40 to +80°C
    • Storage temperatures: -40 to +85
    • Humidity: 40, 90% -95%, 240 hours
    • Matching color: Pantone color matching system



Primary Competitive Advantages:

• Green Product
• Guarantee/Warranty
• International Approvals
• Price
• Product Features
• Product Performance
• Prompt Delivery
• Quality Approvals
• Reputation
• Service
• Small Orders Accepted



Tactile membrane switch embossed LED and metal domes advantages:

1. Beautiful appearance, bright in color, various types of products can be designed according to customer requirements.

2. Small size, light weight, thin thickness, good tactility, abrasion resistant, Installation and connection convenience.

3. Tightness is good, moisture-proof, dust-proof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quake proof.

4. Low cost, high lifespan. The life expectancy of different types of membrane switch is more than 1 million times.

5. Easy to operate, intuitive, safe and reliable, in-house 100% functionally tested.



Custom-made membrane switch/membrane keypad/metal nameplate Main Application:

Home appliances: washing machine, induction, microwave oven, remote control etc.

Industrial equipment: CNC lathe, injection molding machine etc.

Commercial equipment: cash register, electronic scale, refueling machine, medical equipment. Measuring instruments, telecommunication equipment, OA equipment, Information application productstoys…etc.
