Specifications
1.custom graphic overlay/Panel-672.ISO9001:2008
3.PET/PC/PVC&3M adhensive
4.100% QC
5.OEM&ODM welcome
The products are made as customers' detail design. Welcome customers to inquiry at any time, we will do our best to help you find what you need. Thanks!
Shenzhen Lunfeng Nameplate Co ., Ltd
1. 15 years of manufacture experience in Shenzhen, China
2. specialize in membrane switch, keypad, graphic overlay, touch screen, nameplate...
3. passed ISO9001:2008...

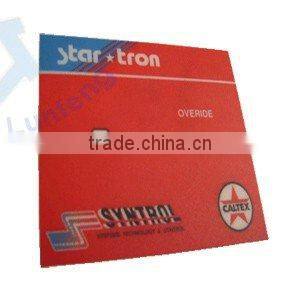

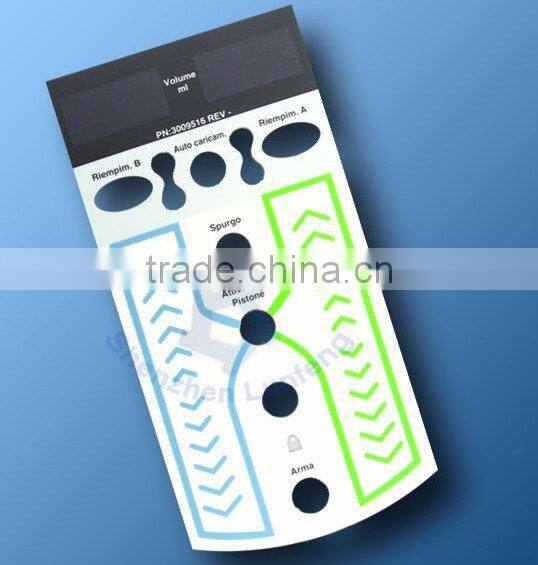

custom graphic overlay-customer's Design
graphic overlay Material-------------PET advised, matte PC (smooth), gloss PC + matte oil, gloss PC and PVC
Color---------------Pantone and RAL color matching system
Thickness------------0.4---1.4mm
LED windows--------transparent and translucent
Embossed keys-------no embossed keys and domes
------domes without embossed keys
-------embossed keys without domes
-------embossed keys and domes
Adhesive----------------3M9448,3M300LSE,3M467,3M468, Nitto etc.
custom graphic overlay Performance Index------------ | |
1.Electronic characteristics | |
Circuit rating |
35V (DC), 100mA, 1W |
Contact resistance |
10Ω~500Ω (According the trace length and materials) |
Insulation resistance |
> 100MΩ 250V DC |
Contact bounce |
≤ 5ms |
Dielectric withstand |
250VRms (50~60Hz 1min) |
Life expectancy |
flat type ≥ 5 million times, tactile type ≥ 1 million times |
2.Mechanical Properties | |
Actuation force |
flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz) |
Switch stroke |
flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm |
3.Environmental parameters | |
Operating Temperature |
-40°C~+80°C |
Storage temperature |
-40°C~+85°C |
Humidity |
40°C, 90% ~95%, 240 hours |
