Specifications
Custom membrane switch keyboards with LED1.PET/PVC&3M adhesive
2.shiny/matt/frosting finish
3.100% QC
4.OEM&ODM
Welcome customers to inquiry on your specification, we would be very pleased to help you find what you need.
Title: Screen Printed and Die-cut, Self Adhesive Membrane Control Panel With Colorful Transparent Window, Touch Screen Overlay, Self Adhesive Overlays With Punched Window
Welcome customers to inquiry on your specification, we would be very pleased to help you find what you need.

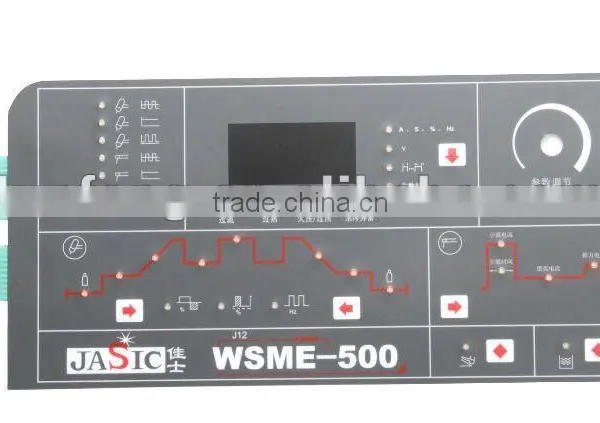

Custom membrane switch keyboards with LED
Tactile nameplates | |
Material |
PET advised, matte PC (smooth), gloss PC + matte oil, gloss PC and PVC |
Thickness |
0.5mm—1.5mm. |
LED windows |
transparent and translucent |
Embossed keys |
no embossed keys and domes domes without embossed keys embossed keys without domes embossed keys and domes |
Adhesive |
3M9448,3M300LSE,3M467,3M468, Nitto etc. |
Thickness |
0.125mm--1.5mm |
Advantages |
Elegant shape, rich color, strong 3D-sence of keypad, long life expectancy |
Application |
Widely used in household appliances, various surface control parts of industrial instruments, with the function of decoration and keystroke. |
custom graphic overlay Performance Index | |
1.Electronic characteristics | |
Circuit rating |
35V (DC), 100mA, 1W |
Contact resistance |
10Ω~500Ω (According the trace length and materials) |
Insulation resistance |
> 100MΩ 250V DC |
Contact bounce |
≤ 5ms |
Dielectric withstand |
250VRms (50~60Hz 1min) |
Life expectancy |
flat type ≥ 5 million times, tactile type ≥ 1 million times |
2.Mechanical Properties | |
Actuation force |
flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz) |
Switch stroke |
flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm |
3.Environmental parameters | |
Operating Temperature |
-40°C~+80°C |
Storage temperature |
-40°C~+85°C |
Humidity |
40°C, 90% ~95%, 240 hours |
Notes:All trademarks shown here are for reference purposes only. They are the property of their respective owners and we are not authorized to sell items bearing such trademarks.
