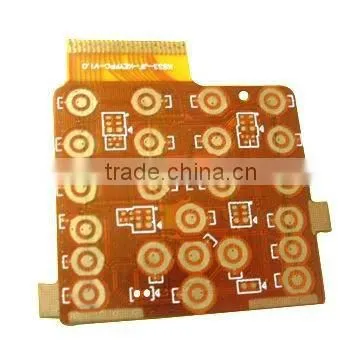

fpc prototype
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 per Month
You May Like
Product Details
Brand Name: | Lunfeng/ OEM/ ODM | Model Number: | FPC-09 | Base Material: | polyimide |
Copper Thickness: | 1oz | Board Thickness: | 0.21mm | Min. Hole Size: | 4mil |
Min. Line Width: | 4mil | Min. Line Spacing: | 4mil | Surface Finishing: | immersion gold |
Product Description
Specifications
1.Professional Lcd fpc Manufacture Service2.Fpc Produce with Rohs Approval
3.Fast deliver 5-7 day
4.Over 16 years experie
Reference-Our Production Capability for Rigid PCB | ||
1) | Layer: | 1-40 |
2) | Board finished thickness: | 0.21mm-7.0mm |
3) | Material: | FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free ,Rogers, HF,NELCON,TACONIC,ARLON,etc |
4) | Max. finished board size: | 23*25mil(580mm*900mm) |
5) | Min.drilled hole size: | 3mil(0.075mm) |
6) | Min.line width: | 3mil(0.075mm) |
7) | Min.line spacing: | 3mil(0.075mm) |
8) | Surface finish/treatment: | HASL /HASL lead free,HAL,Chemical Gold/tin,Immersion Silver/Gold/Tin,OSP, Gold plating,Hard&Soft gold,Plating tin, |
9) | Solder mask color : | Green/yellow/black/white/red/blue |
10) | Copper thickness in hole: | >25.0um (1mil) |
11) | Shape tolerance: | plus or minus 0.13 |
12) | Hole tolerance: | PTH:plus or minus 0.076 NPTH:plus or minus 0.05 |
13) | Certificate: | UL,ISO9001,ISO14001,SGS,RoHS compliance |
14) | Specail req. | Buried and blind vias+controlled impedence+BGA |
15) | Profiling : | Punching ,Routing ,V-CUT,Beveling |
16) | Product range: | Flex-PCB,Rigid-PCB,Flex-rigid PCB,HDI PCB ,PCB of single, Double and Multi-layers,High frequency PCB ,etc |
Contact Us
- Shenzhen Lunfeng Technology Co., Ltd.
- Contact nameWendy Huang
- Phone86-755-27364719-808
- Address6/F C3 Building, Hengfeng Industrial Zone,Hezhou Village, Xixiang town, Bao'an District Shenzhen,Guangdong
