Home > Electrical & Electronics > Circuit Board > FPC > Flexible Circuits

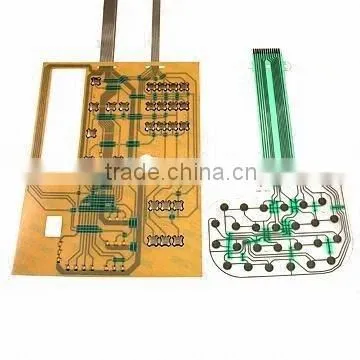

Flexible Circuits

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Lunfeng Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Specifications

Flexible Circuits:
1.100% quality tested
2.Long life expectancy
3.LED light can be installed
4.FPC - single side circuit

Flexible Circuit switch SMT and EL Backlight

Key Specifications/Special Features:

Flat keys or tactile type
Embossed button with good tactile feel
Pre-assemble with or without metal domes
Water-resistant, dust-proof, gas-proof
Long life expectancy
100% quality tested
LED light can be installed
EL backlight

Performance indicators:
1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)
Insulation resistance:> 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand:250VRms (50-60Hz 1min)
Life expectancy: flat type ≥ 500 million times, tactile type: ≥ 100 million times
2. Mechanical Properties Actuation force:flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating Temperature: -40 - +80 , Storage temperature: -40 - +85
Humidity: 40 , 90% -95%, 240 hours
