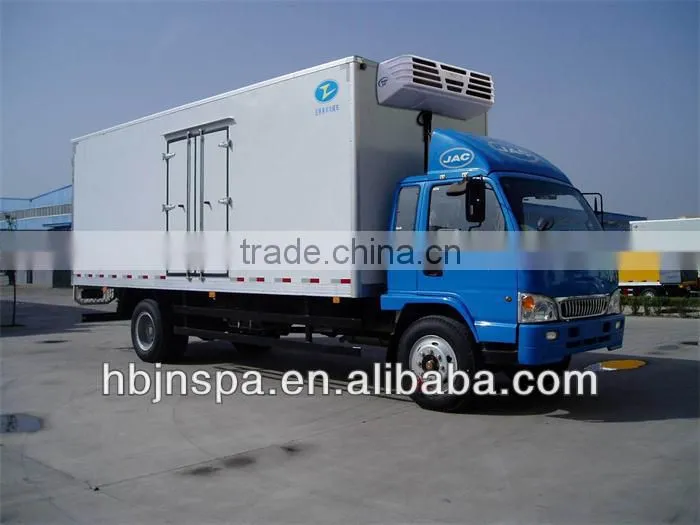

JAC 4*2 with eutectic cold plate system refrigerator box truck for sale
1.We are professional manufacturers to do the special vehicles . We are supply all brands of special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck , Jac , Jmc , Isuzu ,Dongfeng all available .
2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
Product advantage:
1. Factory export department directly sale
2.Export experience more than 12 years
3.Cheap / competitive price, high quality ,you get more than your paid
4.With CCC, ISO , BV approved
5. The heart of the service, rational design
Product parameters:
Product model |
Refrigerator truck for good sale |
|
Product parameters |
Total mass(Kg) |
12495 |
Rated weight(Kg) |
6700 |
|
Curb weight(Kg) |
5600 |
|
Overall dimension(mm) |
8385*2380*3650 |
|
Carriage dimensions (mm) |
6050*2150*2250 |
|
| ||
Chassis parameters |
Chassis model |
JX1120 |
Fuel type |
Diesel |
|
Emission standard |
Euro 3 |
|
| ||
Engine parameters |
Engine model |
CA4DF4-13E4 |
Manufacturer |
YUCHAI |
|
Displacement(ml) |
4750 |
|
Power(Kw) |
105 |
|
| ||
|
Main Parameters
|
Rated person of Cab |
2-3 |
Number of axles |
2 |
|
Wheelbase(mm) |
4700 |
|
Axle load(Kg) |
4500/7995 |
|
Tires No. |
6 |
|
Tyre size |
8.25-20 16PR |
|
Max. speed(Km/h) |
95 |
|
|
Approach angle /Departure angle (°) |
30/17 |
|
|
Front overhang /Rear overhang (mm) |
1125/2350 |
|
Front track/Rear track(mm) |
1385/1425 |
|

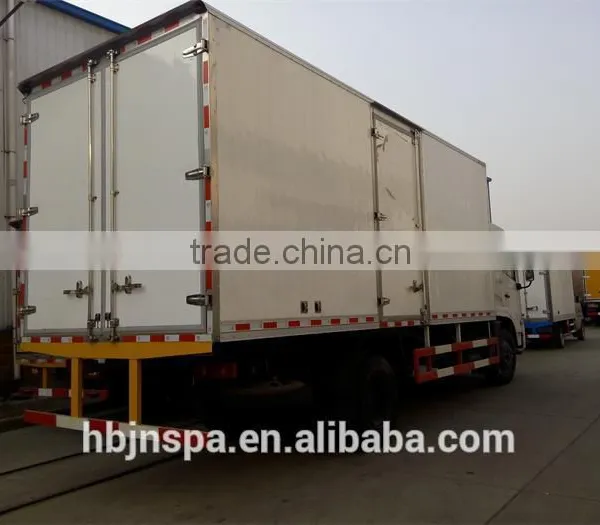

Container material:
The cover of outside and inside is glass fibre reinforced plastic board (GFRP),the inner is fulled
with rigid polyurethane foam(PURF). Its density is 42-45kg/m³.
We use High-strength mucus to glue the GFRP and PURF together to form a closeness and
integrated board.
Preservation and refrigeration effect is very good , Insulation performance through the national testing, 3C and ISO certification ,reliable quality, The annual sales volume is very large .
Main Product :
We are professional manufacturer for many kind of special trucks .
WORKSHOP AND CERTIFICATION:
