Specifications

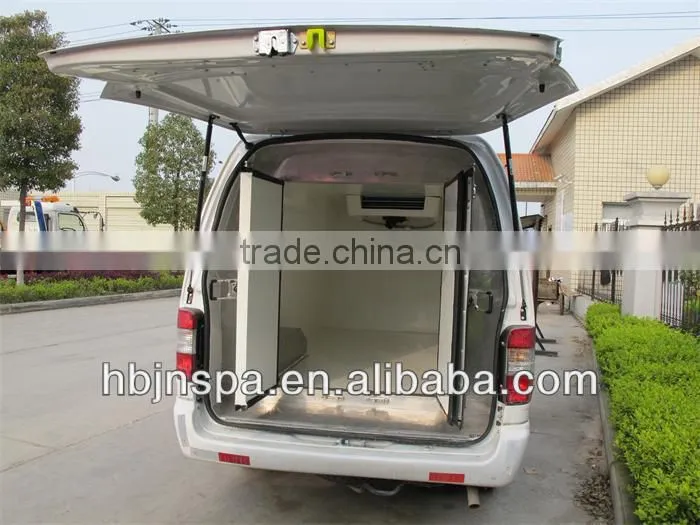

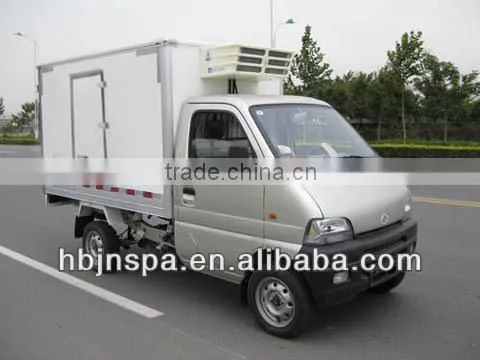

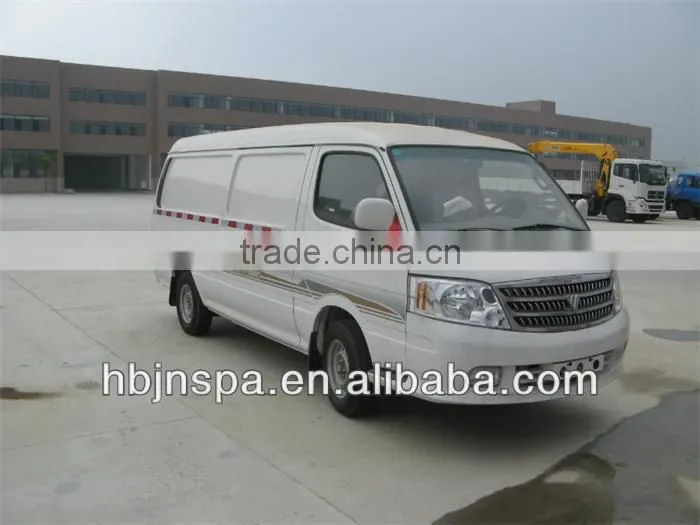

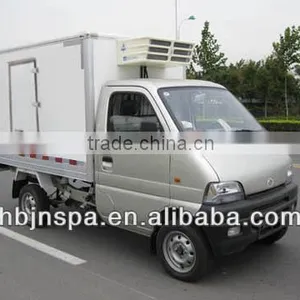

direct factory price Professional customization mini refrigerator box truckHigh Quality Chassis, competitive prices
direct factory price Professional customization mini refrigerator box truck
1.We are professional manufacturers to do the special vehicles . We are supply all brands of special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck , Jac , Jmc , Isuzu ,Dongfeng all available .
2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
Product advantage:
1. Factory export department directly sale
2.Export experience more than 12 years
3.Cheap / competitive price, high quality ,you get more than your paid
4.With CCC, ISO , BV approved
5. The heart of the service, rational design
Pls feel free to contact me for more details:
Product parameters:
Product model |
Refrigerator truck for good sale |
|
Product parameters |
Total mass(Kg) |
1800 |
Rated weight(Kg) |
500-1000 |
|
Curb weight(Kg) |
1200 |
|
Overall dimension(mm) |
4150*1990*2350 |
|
Carriage dimensions (mm) |
2350*1380*1380 |
|
| ||
Chassis parameters |
Chassis model |
HB1070A1HAY |
Fuel type |
Diesel |
|
Emission standard |
Euro 3 |
|
| ||
Engine parameters |
Engine model |
YN33CRD2 |
Manufacturer |
/ |
|
Displacement(ml) |
1012 |
|
Power(Kw) |
39 |
|
| ||
|
Main Parameters
|
Rated person of Cab |
2 |
Number of axles |
2 |
|
Wheelbase(mm) |
2500 |
|
Axle load(Kg) |
940/860 |
|
Tires No. |
6 |
|
Tyre size |
165/70R13LT |
|
Max. speed(Km/h) |
95 |
|
|
Approach angle /Departure angle (°) |
19/16 |
|
|
Front overhang /Rear overhang (mm) |
1015/1525 |
|
Front track/Rear track(mm) |
1385/1425 |
|
Container material:
♦The cover of outside and inside is glass fibre reinforced plastic board (GFRP),the inner is fulled
with rigid polyurethane foam(PURF). Its density is 42-45kg/m³.
♦We use High-strength mucus to glue the GFRP and PURF together to form a closeness and
integrated board.
♦Preservation and refrigeration effect is very good , Insulation performance through the national testing, 3C and ISO certification ,reliable quality, The annual sales volume is very large .
Main Product :
We are professional manufacturer for many kind of special trucks . We can provide all kinds of tonnage refrigerator trucks ,such as 1 ton ,2 ton ,5 ton ,10 ton ,20 ton ,etc . Mature technology, through national 3C ( China Compulsory Certification ) ,ISO , refrigeration effect is good .
WORKHOP AND CERTIFICATION:
