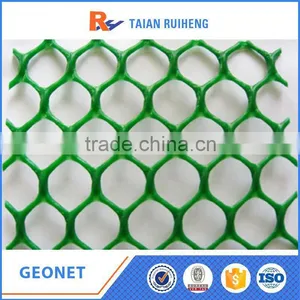

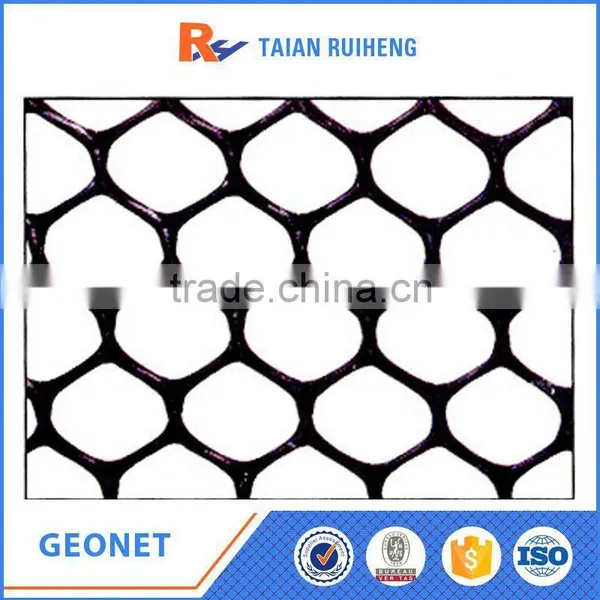

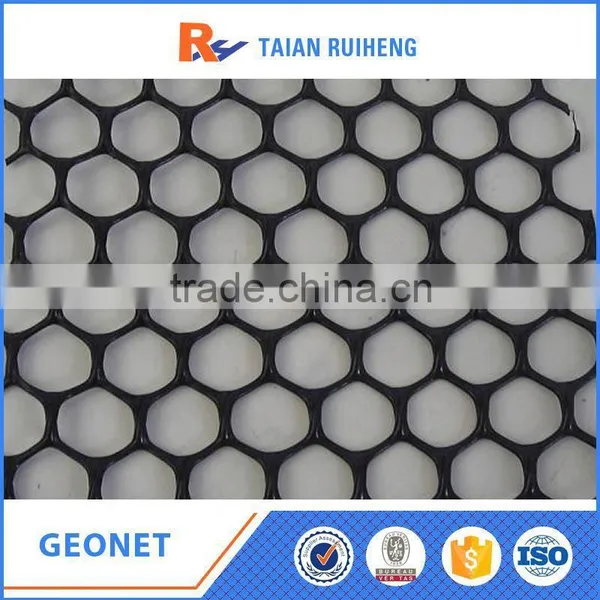

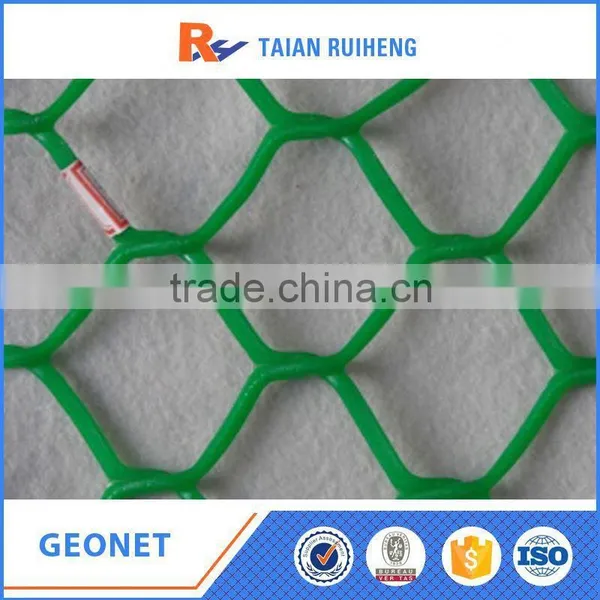

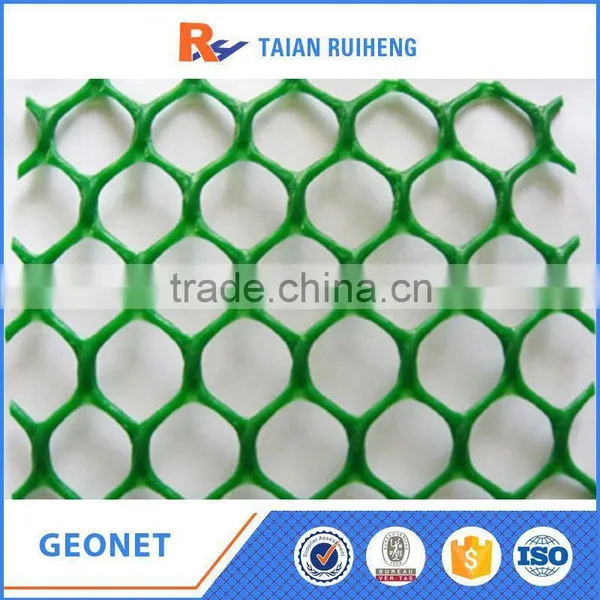

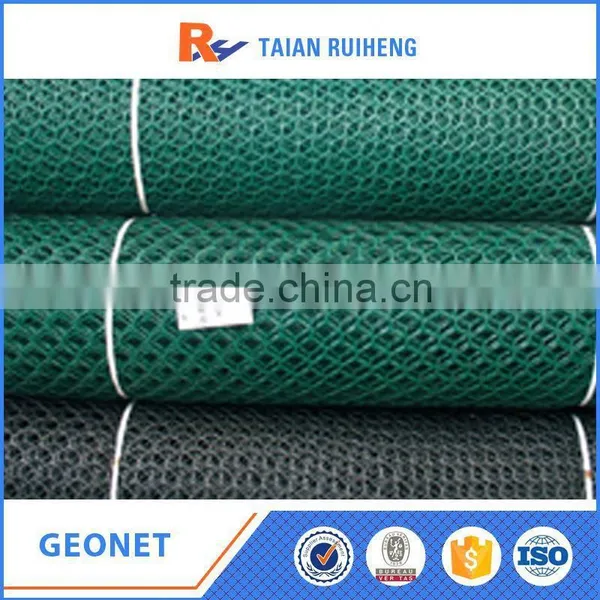

Synthetics Composite Geonet
- 800000 Square Meter / Square Meters per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Shandong, China | Brand Name | Ruiheng | |
Model Number | RHIC-geonet |
Product Description
Geonet Introduction
geonet can be used in the soft soil stabilization, base reinforcement, embankments over soft soils, seacoast slope protection and reservoir bottom reinforcement, etc
It prevents the slope rock from falling down ,which avoids the hurt to the human beings and the vehicle on the road; It prevents the road dregs packed by geonet from being washed away ,avoids the roadbed distortion and improves the stability of the roadbed; laying the geonet reinforces the road surface ,avoids development of the reflection crack. As reinforcing material of filling soil in retaining walls, it disperses the earth body stress and restricts the side-displacement. The stone cage, made of geonet, can prevent erosion ,collapsing and lost of water and soil when being used in dyke and rock slope protetion
Geonet function
Geonet is made of HDPE and anti-ultraviolet additives
1. Anti-aging, corrosion resistance
2. Highway and railway subgrade: effectively distribute load, improve its bearing capacity and stability and prolong service life
3. As layer of highway slope so that geonet can prevent landslide and protect water and soil, and beautify the environment
4. In reservoir and rive dykes to effectively prevent landslide; in the coastal engineering because of its soft good toughness, corrosion strong characteristic to buffer wave swept and corrosion
Geonet Specification
Synthetics Composite Geonet
Item Model | CE111 | CE121 | CE131 | CE131B | CE151 | CE181 |
Width(m) | 2.5 | 2.5 | 2.5 | 2.0 | 2.5 | 2.5 |
Nets pore size(mm) | (8*6)±1 | (8*6)±1 | (27*27)±3 | (27*27)±3 | (74*74)±5 | (85*85)±5 |
Thickness(mm) | 2.9 | 3.3 | 5.2 | 4.8 | 5.9 | 7.0 |
Length(m) | 40 | |||||
Weight on unit area(g/m2) | 445±30 | 730±30 | 630±30 | 630±30 | 550±250 | 720±30 |
Tensile strength(KN/m) | >=2.0 | >=6.0 | >=5.6 | >=5.6 | >=4.8 | >=5.8 |
Our Other Products
If you want to learn more about our products,please click here.
What We Can Do For You
Synthetics Composite Geonet
1. We have our own factory. We can provide what you want in competitive price.
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in engineering construction and products selection.
3. Our company is in strict accordance with national standards and related standards. Our company passed ISO9001 and BV quality system authentication.
4.We have been exporting for 5 years.
We can provide necessary certificates to make customs clearance easier for you.
We know well about container. We can make advice for you to reduce freight without damaging goods.
5.We can provide Certificate of Origin. For Southeast Asia, FORM E and FORM A. For Chile, FORM F. For Africa, C O.
We are looking forward to your sincere cooperation. If you have any question, please feel free to contact us.
