10w pet tag engraving machine
1.Aluminum alloy and electric up-down table
2.EZCAD software
3.Red point
4.CE,ISO
Air cooled cooling system, easy and quick installation, USB contacted with any computer and install software easily .
Use interfaces types: text, graphics, serial number, serial number, a d bar code, 2 d barcode, successive signet (optional equipments), etc
Suitable for: anodized sculpture, hand tools deep carved, aluminum a deep carved, stainless steel surface carved black, IC table sculpture, etc.! Advantages: small volume, avoid consumables, flexible degree is high, use 5-100000 hours and hours without power attenuation problem!
Equipment Performance
the machine adpots originally imported fiber laser module speedy gavol scanning system. High quality of light beam, long using time, stable equipment performance exempts maintenance. It's speedy and precious.Making has non-touched process.
permanent affect, humanized operation and stable running, 24-hour non-runing makes it meet the demand of massive on-line and off-line industrialized production. AUTOCAD. CORELDRAW, PHOTOSHOP compatible, PLT, PCX, DXF, BMP, JPG etc supportive.

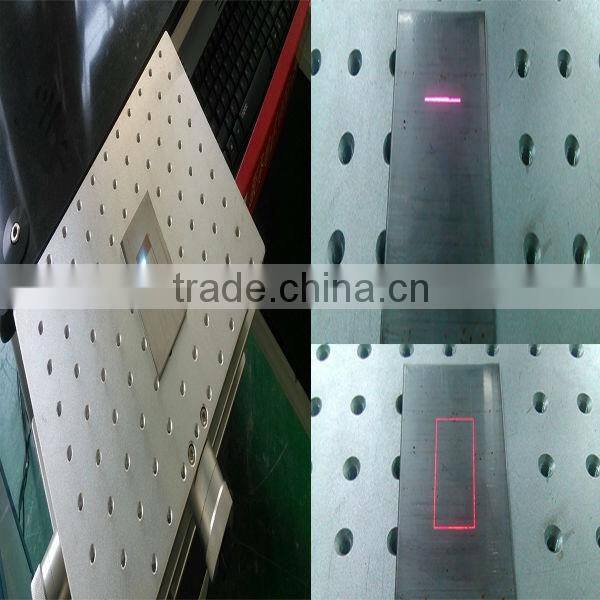

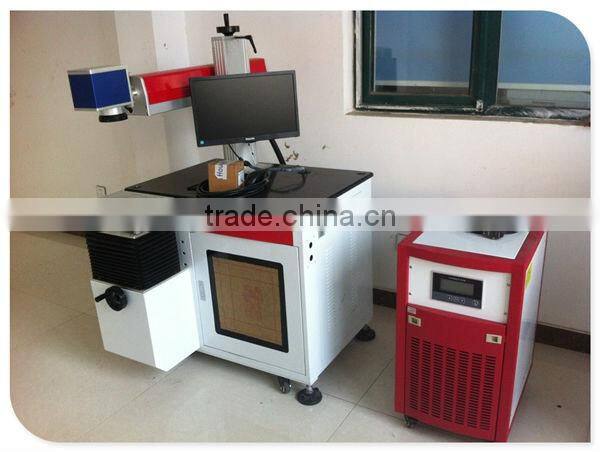

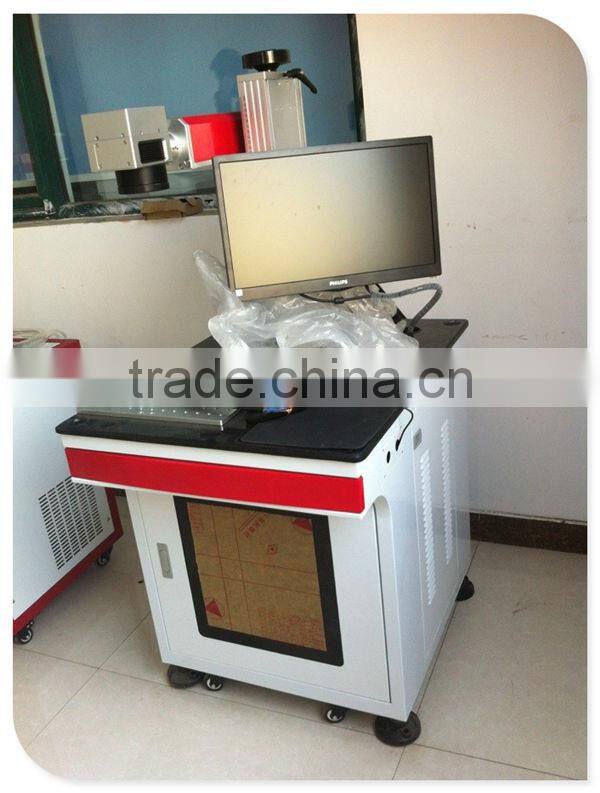

Machine photos:
Equipment Main technical parameter
• Laser mode: base mode, high quality beam
•Precision galvanometer marking head, marking effect fine and capable of reproducible processing
•High precision fine spot to ensure the perfect marking result.
•non-contact marking process, permanent effect
•Max speed is 8000mm/s, improve processing efficiency
• Convenient to integrate online production line or independent work
•Suitable for most metal and non-metallic material marking
• humanize operation process
•It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on. It may use TIF fonts directly.
•It can realized automatic edition and correction of characters, signs, graphs, images, bar codes,two-dimensional codes, automatically increased serial numbers
•Support number, letter, chinese characters, signs, graphs, images, bar codes,two-dimensional codes, serial numbers radom number, batch number, add code, production date, valid date, any self-creative character.
• Long use liftetime, stable performance, maintenance free
•stable performance, 50,000 hours maintenance free
•High photoelectric conversion, saving electricity cost
•Adopts air-cooling system, no need outside cooling device
•Easy to operate, without high training expense
Technical Information:
Type specificatin | SFM10/SFM20 |
Laser mode | TEM(base mode) |
laser wavelength | 1064nm |
Laser repetition frequency | 20kHz~100kHz |
laser power | 10W |
Marking speed | ≤8000mm/s |
Minimal character | 0.1mm |
Repetition precision | 0.0025mm |
Marking scope | 100mm×100mm--600mm×600mm(optional) |
Power supply | 220V / 50Hz /2kVA |
Cooling way | Forced-air cooling |

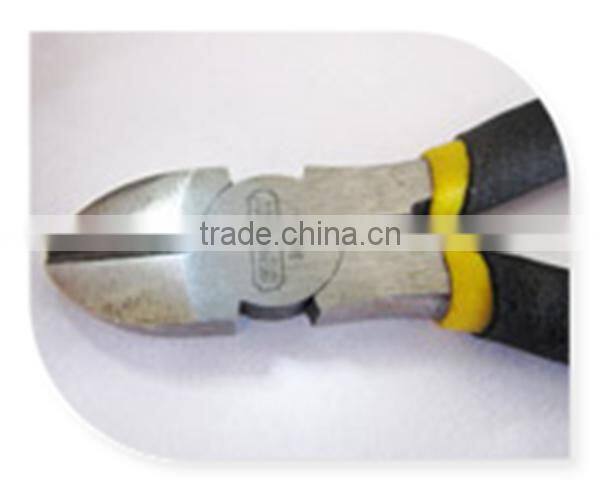

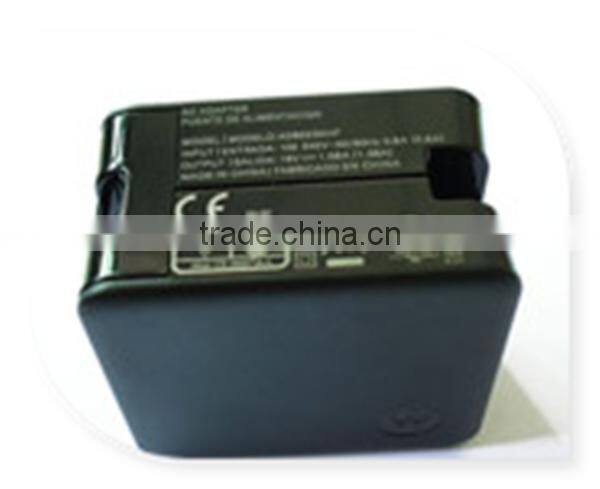

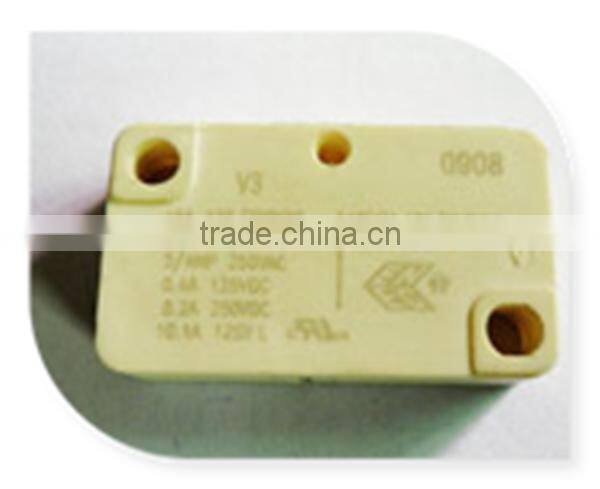

Samples:
Company Introduction:
We are Manufacturer of Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, CNC Router:
1.We have 10 years producing experience, and keep R&D new product for market demand.
2.All workers have many years assembling experience, the are proficient with producing, so we can deliver the machine to you in time.
3.Sales persons and technical person are careful and patient, they can answer you any technical questions about machine, documents also will be prepared carefully and detailed.
4.we will provide you best after-sale service, every after-sales person has passport, if there is any big problem, we will send some person to your factory for maintenance in time. However, most of our laser machines run well all over the world, there is no big problem by now. If there is small problem, we can solve it within 24 hours.
So please give us a chance to provide you best service, with us, you will be the winner of laser-tech industry.
