nc studio 4 axis
1.3kw water cooling spindle
2.vacuum working table
3.CE,FDA,CIQ
4.Taiwan HIWIN linear guide
Configuration and characteristics:
1. The machine adopts auto-tool changing, with a row of tools which can move together with gantry. 8 tool changer in line, following under gantry. 12 cutters( φ6, φ12.7), 2 collets, 2 tool holder. The main electrical parts and mechanical components are world leading brand.
2. The machine adopts 7.5KW water cooling spindle, low noise, durable and long lifetime.
3. Three axis adopts with imported linear square guide rail, ball screw for Z axis and gear-wheel for X and Y axis, it ensure the accuracy and keep fast running.
4. Three axis useJapan servo motors and driver, accurate position, low error rate and smooth running.
5. Standard integrated control system, 7 inch LED display, competitive price and High reliability, with WinCE-based operating system platform, virus-free, maintenance-free, easy to operate, convenient upgrade. Using "speed adaptive optimization algorithm", processing relief with high efficiency, excellent details, compatible the NC/ENG/DXF files and other processing, support breakpoint continue engraving, compensation of ball screw error and other advanced features, keyboard keys use imports micro-switches, with long lifetime.
6. Whole machine is welded with seamless steel structure, after the processing, no deformation, durable.
7. The auto oiling system can lubricate the transmitting parts effectively, and improve the lifespan of the machine.
8. Working Size: 1500*3000MM
9. Control system: Taiwan LNC control system
10. Software: Type 3 software
11. Table Surface:vaccum suction table surface and T-Slot which can handle wood, plastic, also can handle aluminium material. But aluminium plate should be thin. Vaccum Suction Table Surface is seperated into 6 sections to handle different size of soft plate material.
12. Water channel, when process aluminium material, it is useful.
Applicable industry:
wooden industry:
Sheet plane, three-dimensional wave board processing, screen, craft fan window processing,cabinet doors, solid wood door, craft door, paint-free door carving,cutting,engraving,drilling and other processing.
Other industry:
Building model,wooden model,wooden aviation model, propeller, car foam mold,violin,erhu and other instruments three-dimensional surface,shape cutting and surface pattern carved musical instrument,calligraphy plaque,carved frame.
This machine can engrave a flower-shaped carved door skin in three minutes with the speed 20m/min, if change the tool, each changing need 20s, so it can complete 150pcs door skin, 75pcs door in one day (eight hour working),
Technical Parameter:
No. |
Description |
Parameter |
1 |
X,Y working area |
1500*3000mm |
2 |
Z working area |
200mm |
3 |
Working Accuracy |
0.05mm |
4 |
Repositioning Accuracy |
0.05mm |
5 |
Frame Structure |
Welding Steel structure |
6 |
Table type |
Vacuum Table+T-Slot |
7 |
Max traveling speed |
50000mm/min |
8 |
Max working speed |
25000mm/min |
9 |
Interface |
COM32 |
10 |
Command |
G code file, *.U00, *.plt,*.mmg,*.nc |
11 |
Surroundings for software |
Windows 98/2000/XP |
12 |
Working voltage |
3PH AC380V/50HZ |
13 |
Spindle rotating speed |
0-24000rpm/min |
14 |
Drive Motor |
Japan servo motor |
15 |
Carving diameter |
3.175/4/12.7mm |
16 |
Operation system |
Taiwan LNC control system |
17 |
Spindle |
7.5 KW water cooling spindle |
18 |
Gross weight |
1800kg |
19 |
Packing Size |
330*230*190cm |

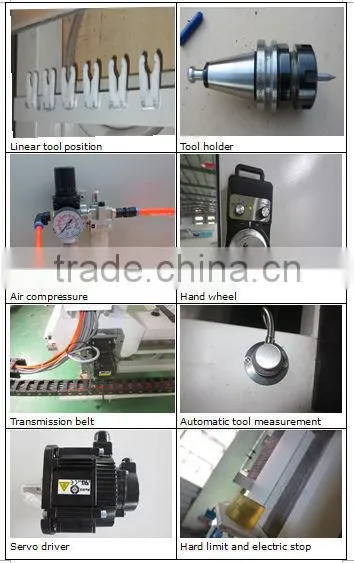

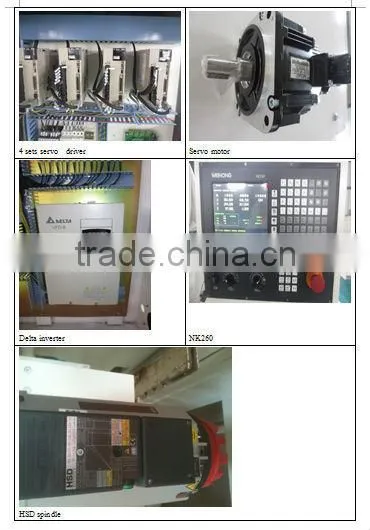

Machine parts:
Samples:
Our service:
1.We test equipment at least 3-5 days to ensure our users to receive perfect machines.
2. We guarantee that every part of machine is totally new and clean before delivery.
3. We supply 7*24 after sale service from our Service Department.
4.WE can send technical person to help customer install machine on site
5.We provide many online service such as Skype, MSN, QQ, What'sapp, Wechat, Email, and Videl call
6.We provide CD Video to show how to operate the cnc router
