Home > Consumer Electronics > Audio & Sets > Professional Audio > Admark Pro Audio Line Array 7

Admark Pro Audio Line Array 7

Name: Admark Pro Audio Line Array 7
Brand: Admark
SKU: 112679131
Availability: InStock

Admark Pro Audio Line Array 7 thumbnail-1

Negotiable MOQ: 8 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Admark

Model Number:

AD-L7

Contact Supplier Request Quote Chat Now

Guangzhou AD Audio Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Admark

Model Number AD-L7

Admark Pro Audio Line Array 7

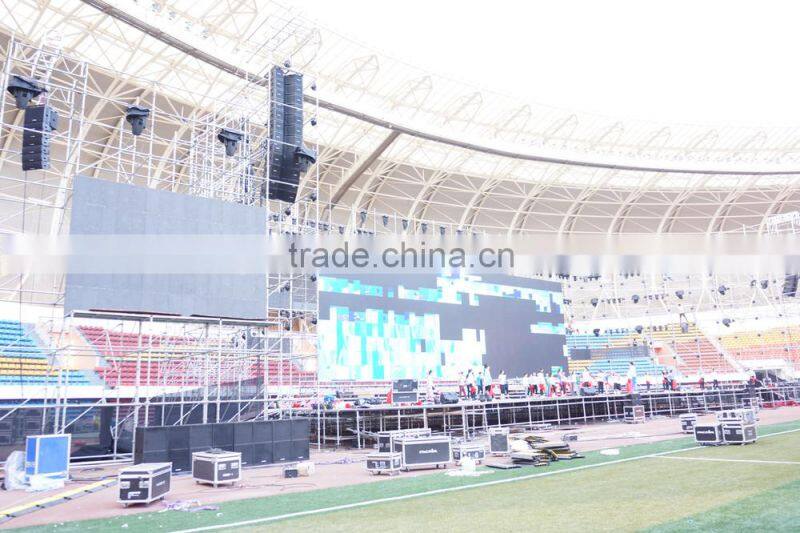

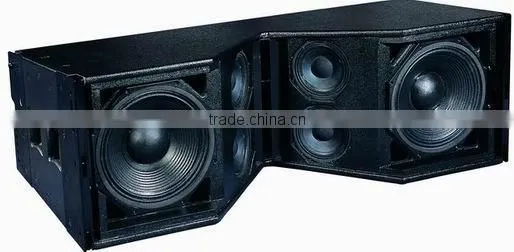

AD-L7 is a powerful 3-way full range vertical compact Line Array System. It is composed of two 15 inch high efficient Neo LF drivers with VC 100mm, that makes the low frequency much stronger and can be concentrated in a certain range of powerful long-throw with the array design. On the MID, it is with four 8 inch Neo HF drivers with VC 50mm that can perform very naturally for vocal. The HF is much perfect with three BMS (BMS 4552ND) Neo HF drivers that installed in a special design horn. It performs very high efficient together with the MID drivers, and minimizes the distortion with the MID and LF. The enclosure is built with high quality piano plywood with 13 lays, and coated with durable protective water resistant paint, which can be outdoor using. This system is suitable for Large Concerts Touring, Stadium, Theater, Church, Disco club etc.

LF rated power	1000W RMS
LF program power	2000W Peak
MF rated power	600 W RMS
MF program power	1200 W Peak
HF rated power	160 W RES
HF program power	320 W Peak
Components	2x15"LF Neo,4x 8"MF Neo 3x1.75"HF Neo (BMS4552ND)
Connections	2x Speakon-socket(8-pin)
LF Sensitivity(1W/m)	106dB
Rated Maximum SPL(1m)	134dB peak,@1m
MF Sensitivity(1W/m)	105dB
Rated Maximum SPL(1m)	130dB peak,@1m
HF Sensitivity(1W/m)	114dB
Rated Maximum SPL(1m)	136dB peak,@1m
Impedance	LF 2x8Ohms/MF 8 Ohms/ HF 24 Ohms
Frequency range	50Hz ~ 20KHz
Colors	Black
Dispersion angle(1 KHz)	90°x 10°(V x H)
Weight	85Kg
Shipping Size	0.58CBM/PC
Dimensions	1400x610x488mm

² Quick response: Reply your inquiry within 12 working hours.

² Detailed recommendations: Experienced staffs answer all your questions and recommend related products in fluent

English.

² Insurance: Special discount and protection of sales provided to our distributor.

² Latest products news:The newest products and updates will be noted.

Guangzhou AD Audio Co.,Ltd is a company engaged in designing and manufacturing professional loud speakers and amplifiers.Being founded in 1998,the company started from a small workshop of 5 people. After years of efforts, the company has developed into a major loud speaker and amplifier manufacturer in this industry. The adhere to the " quality first, users first" purpose, strict quality management, continuous learning advanced management experience, improve the quality of products, firstclass service.

With almost 20 years of experience, our engineers develop high performance products for the proaudio market.We use mostly European drivers and only the best Chinese driver that had been approved good and stable enough,to make sure extraordinary reliability and highest quality of our products.Latest technologies in development and production enable manufacturing and pro-cessing at the highest level.

Q1:We`d like to print our own design and logo on the products? Can you make it?
