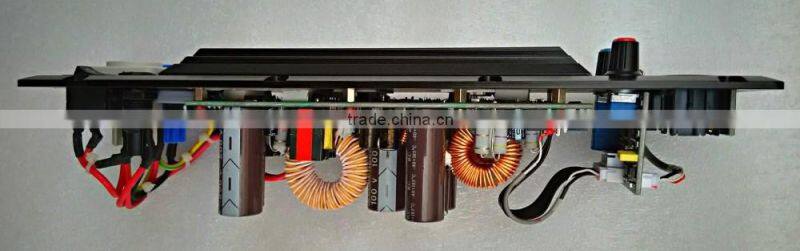

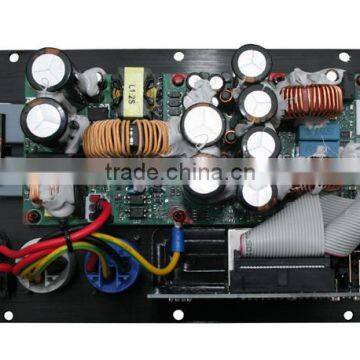

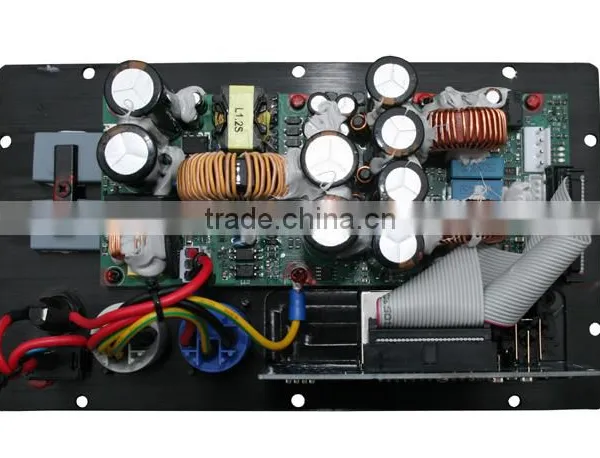

Amplifier Module L1.2D4
L1.2D4 : 300W+300W@8 ohm,600W+600W@ 4ohm
Module size: 68mm X 189mm X 60mm

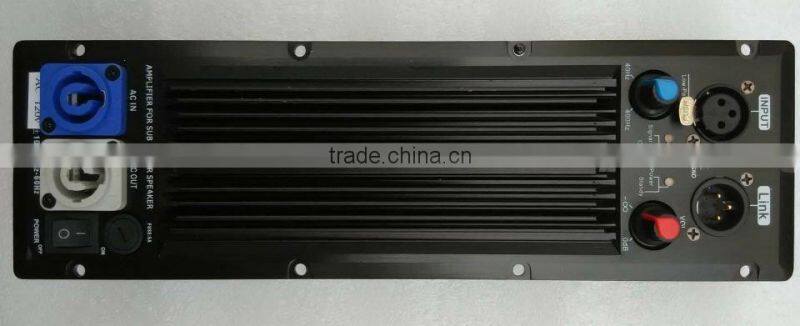

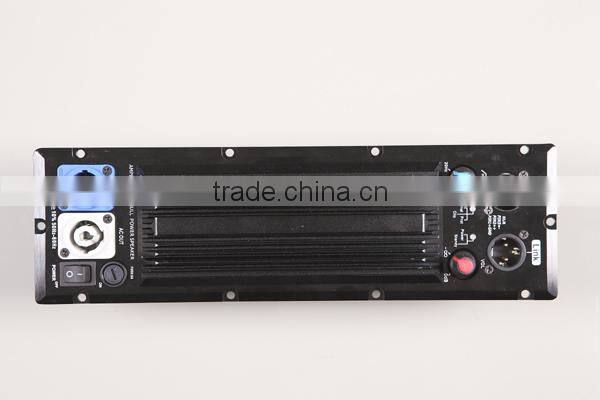

Metal panel Dimention: 89.5mm X 298mm X 75mm
Big power switch-power supply
180V-264V Wide Operating Voltage
Intelligent Short- Circuit ,Overload Protection
High Efficiency, Low Heat , Silence Natural Cooling without Fan
Variety Of Power Watts, available for different Usage
Single Channel Series | ||||
Model | L1.1C1 | L1.2C1 | M1.2C1 | H1.2C1 |
Output describtion | small power single channel full-range output | Mid-power single channel full-range output | big power single channel full-range output | big power single channel subwoofer output |
Output power | 300W@8OHM 600W@4Ohm | 600W@8OHM 1000W@4OHM | 1000W@8OHM 1500W4OHM | 1300W@8OHM 2400W@4OHM |
Frequancy Response | 20Hz~20KHz(d1dB) | 20Hz~300Hz(d1dB) | ||
Distortion rate | THD<0.1% (full loading) | |||
Power Frequency load | 125KHz(PWM)*1 | 70~85KHz(PWM)*1 | 70~85KHz(PWM)*2 | 40KHz(PWM)*1 |
power response Frequency | >5KHz | |||
amplifier Frequency load | 392KHz(d5%) | 196KHz(d5%) | ||
input inpendance | balance input 40KOHM/unbalance input 20KOHM | |||
input/output | Single channel balance input,LINK output;Optional full-range or subwoofer,HPF/LPF between 33Hz~200Hz. | Single channel balance input,LINK output;for subwoofer only,LPF under 300Hz | ||
Multi-Channel Series | ||||
Model | L1.2D2 | M1.2D2 | M1.3D2 | H1.3D1 |
Output describtion | small power two channel output | Mid-power two channel output | big power two channel output | big power three channel output |
Output power | 300W@8OHM 600W@4OHM *2 | 300W@8OHM 600W@4OHM *2 | 1000W@4OHM+250W8OMH | 2300W@4OHM*2+600W@8OHM |
Frequancy Response | Depends on DSP | |||
Distortion rate | THD<0.1% (full loading) | |||
Power Frequency load | 70~85KHz(PWM)*1 | 70~85KHz(PWM)*2 | 70~85KHz(PWM)*2 | 40KHz(PWM)*1 |
power response Frequency | >5KHz | |||
amplifier Frequency load | 392KHz(d5%)/CH | 196KHz(d5%)+392KHZ(d5%) | ||
input inpendance | balance input 40KOHM unbalance input 20KOHM | |||

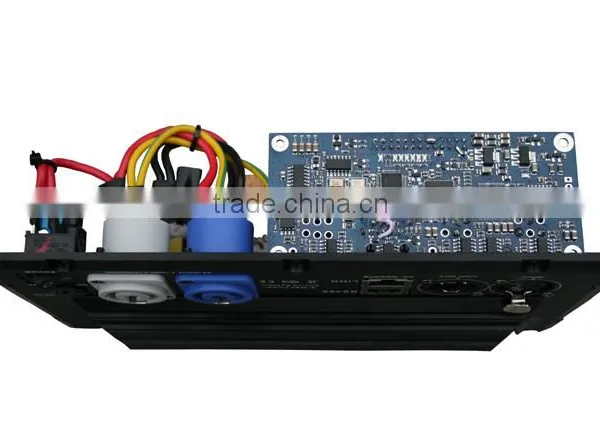

input/output | with built-in 1in-2out DSP,both input and output with 10 phase equaliser,and each input and output with limit,delay function;The DSP is enable for TCP/IP remote control;the DSP available for many setting savings. | with built-in 1 in-3 out DSP,both input and output with 10 phase equaliser,and each input and output with limit,delay function;The DSP is enable for TCP/IP remote control;the DSP available for many setting savings | ||
