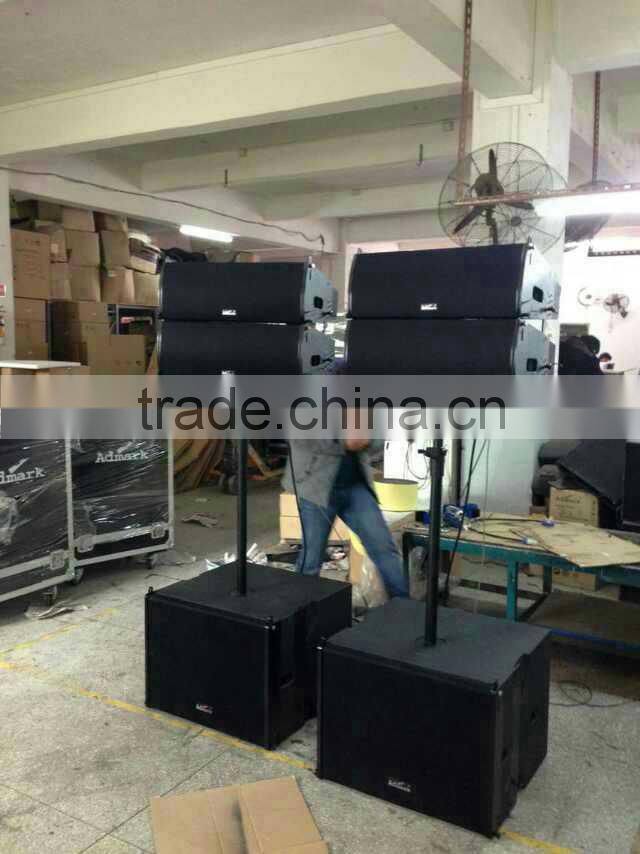

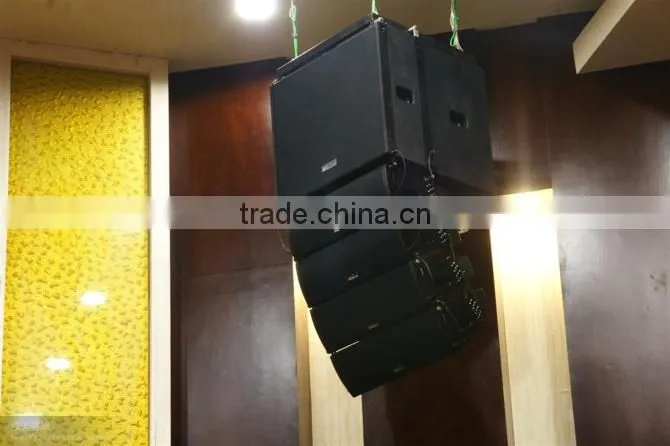

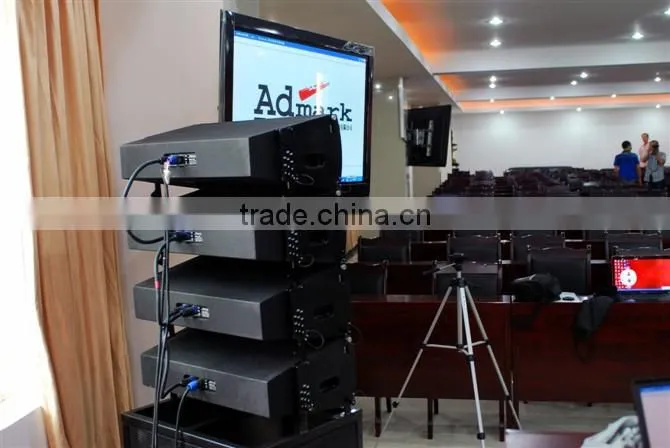

line array speaker(profesional speaker)
A8:double 8",2-way line-array.Neodymium Celestion tweeter,Neo Celestion MF

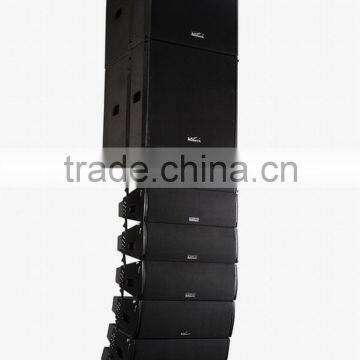

A8 is a high quality and top grade Hi & Mid mini line array speaker. This speaker employs the dual 8 "NEO Mid driver and 1.75" NEO Hi driver installed in a drectivity horn, which can produce distortion-free wave front. This spealer features outstanding mini-sized cabinet design, light weight, easy-installation and high sensitivity. It can be adjusted from 0°- 20° according the angle. It works with A-181 as an active three-way syatem, mainly applied for small and middle sized Touring, Stadium, Theatre, Church, Disco club and other entertainment locations.

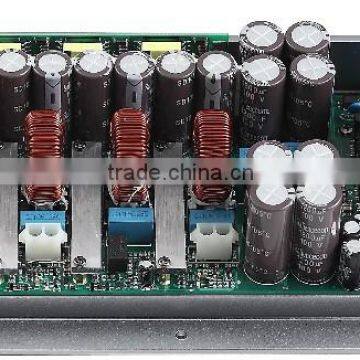

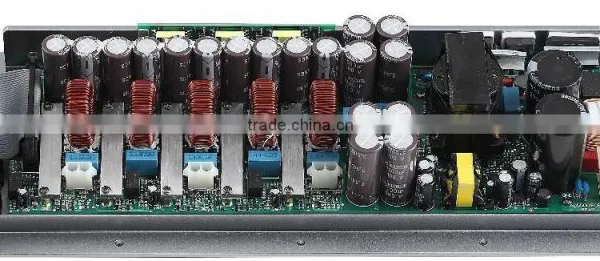

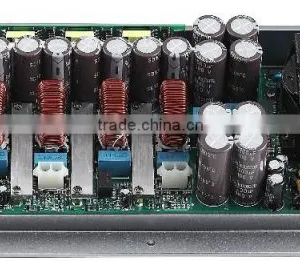

A181:single 18" active woofer,with 800W+2000W+2000W 3-way amplifier module and built-in german-made DSP.
A181 is designed for the A8 as a woofer. It is composed of one 18"driver with VC¢100mm and a 3-way 5100w amplifier. This amplifier can power Four A8 and one A181. The complete electro circuit contorl system include the 0~24dB range Phase switch each chanel, Crossover and Passive filter, EQ. So that it can perform high and reliable sound pressure. The application of the Digital amplifier makes the loudspeaker lighter. It can be also connected with the PC in order to control it in long distance.
A8:
| Configuration | 2*8inch MF+1*1.75inch HF |
| Power(AES/Peak) | MF:350W/700W/ HF:75W/150W |
| Impedance | 16 Ohm |
| Sencitivity (1 W/m) | MF:102dB/HF:110dB |
| Rated Maximum SPL | MF:128dB/HF:132dB ( peak@1m) |
| Franquency Range | 70Hz-20KHz (±3dB) |
| Dispertion angle(V × H) | 120°× 20° |
| Color | Black |
| Weight: | 16Kg |
| Shipping Size | 643×385×232mm |
A181:
| Configuration | 18inch woofer |
| Power(AES/Peak) | 600W/1200W |
| Impedance | 8 OHMs |
| Sencitivity (1 W/m) | 100dB |
| Rated Maximum SPL | 126dB ( peak@1m) |
| Distortion | <0.05% |
| Power connecor | Power Con |
| Operating Voltage | 230V 50/60Hz |
| Color | black |
| Weight: | 49kg |
| Shipping Size | 639*620*489mm |
² Quick response: Reply your inquiry within 12 working hours.
² Detailed recommendations: Experienced staffs answer all your questions and recommend related products in fluent
English.
² Insurance: Special discount and protection of sales provided to our distributor.
² Latest products news:The newest products and updates will be noted.
Q1:We`d like to print our own design and logo on the products? Can you make it?
- Of course we can. We offer OEM and ODM service and can customized to your specific requirements.
Q2: How long is your guarantee/warranty?
- We can provide 1 year guarantee/warranty for all our products. If any defective is confirmed to be caused by us,substitution or repair parts will be sent.
Q3:What is your main competitive advantages?
- Strong design and development
- capability
- comparative price
- experienced staff
- Customized products
- prompt response
- prompt delivery
Q4:Where have you exported?
Q5:What is the MOQ? How can I pay?
- Our MOQ is 1 piece. We accept cash, T/T, L/C and Western Union.
Q6:How about the delivery time?
- 15-20 days after the receipt of deposit and confirmation on all design based of normal condition.
If you ave any demand, don`t hesitate to contact us.
