Home > Transportation > Truck > Dump Truck > Containerized Export Hydraulic Tipping (FCY15 Dumper/Tipcart/Tip Lorry)

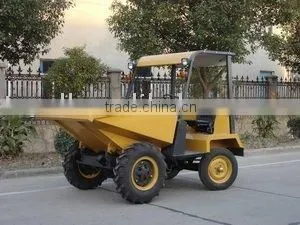

Containerized Export Hydraulic Tipping (FCY15 Dumper/Tipcart/Tip Lorry)
US$ 3,500 - 5,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Drive Wheel:
4x2
Capacity (Load):
1 - 10t
Horsepower:
Other, 15
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dumper(Earth Moving Equipment)US$ 8,000 - 12,000MOQ: 1 Unit -
Export Adreica Market 4*4 Drive Dumper/Site DumperUS$ 8,000 - 12,000MOQ: 1 Unit
-
Export Diesel Site Dumper(Mini Dumper)US$ 8,000 - 12,000MOQ: 1 Unit
-
Model SD30 Site DumperUS$ 8,000 - 12,000MOQ: 1 Unit
-
Containerized Export Site Dumper FJ30,3ton Hydraulic DumperUS$ 8,000 - 12,000MOQ: 1 Unit
Drive Wheel
4x2
Capacity (Load)
1 - 10t
Horsepower
Other, 15
Condition
New
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Engine Capacity
6 - 8L
Gross Vehicle Weight
1250
Place of Origin
Jiangsu, China
Brand Name
TOPALL
Model Number
SD15
Dimensions (L x W x H) (mm)
2795*1600*2060
Specifications
FCY15 Dumper/Tipcart/Tip Lorrypayload is 1500kg
| Model | SD30(FJ30) | SD15-11D(FCY15) | SD15-11DM(F15) | SD10-9DA(FC1A) | SD10-9D(FC1) | ||||||
| Payload(kg) | 3000 | 1500 | 1500 | 1000 | 1000 | ||||||
| Capacity of bucket(m3) | 1.5 | 0.75 | 0.75 | 0.47 | 0.47 | ||||||
| Drive type | 4×4 | 4×2 | 4×2 | 4×2 | 4×2 | ||||||
| Max.speed(km/h) | 25/28 | 22 | 22 | 23 | 23 | ||||||
| Grade ability(%) | 36 | 21 | 21 | 21 | 21 | ||||||
| Min.turning radius(m) | ≤4.5 | ≤4 | ≤4 | ≤4 | ≤4 | ||||||
| Min ground clearance(mm) | ≥248 | ≥205 | ≥205 | ≥205 | ≥205 | ||||||
| Tyres | front wheel(mm) | 12-16.5 | 7.50-16 | 7.50-16 | 7.50-16 | 7.50-16 | |||||
| rear wheel(mm) | 12-16.5 | 5.00-15 | 5.00-15 | 5.00-15 | 5.00-15 | ||||||
| Clutch | Constant-contact,single-disc,dry clutch | ||||||||||
| Gear box | Four forward speeds and one reverse speed | Slective-gear transmission,with three forward speeds and one reverse speed | |||||||||
| Tipping system | Hydraulic tipping hopper | Mechanical tipping hopper | |||||||||
| Electric starting | Yes | Yes | Yes | ||||||||
| Engine | model | F3L912 / NB485 optional | S1100BNM | S1100BNM | S195NM | S195N | |||||
| type | Air cooling/water cooling | Horizontal single-cylinder four-stroke,radiator water-cooled | |||||||||
| 12 hours rated power | 36kw/2300rpm(912) 30kw/2600rpm(485) |
11kw/2200rpm | 11kw/2200rpm | 8.8kw/2000rpm | 8.8kw/2000rpm | ||||||
| Overall size(mm) | 3900×1800×1820/2600 | 2795×1600×2060 | 2795×1600×2060 | 2650×1600×2074 | 2650×1600×1450 | ||||||
| Weight(kg) | 2250 | 1250 | 1250 | 1100 | 1000 | ||||||
