Specifications
1. Model: YC series2. Rated Voltage: 220V
3. Rated frequency: 50HZ, 60HZ
4. electric motor with competitive price

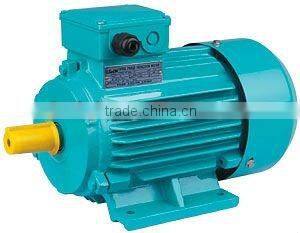

YC series heavy-duty single-phase capacitor start induction motor
1. Model: YC series
2. Rated Voltage: 220V
3. Rated frequency: 50HZ, 60HZ
4. electric motor with competitive price
Advantages:
YC series motors are totally enclosed fan cooled (TEFC) heavy-duty single-phase induction motor. The mounting dimension is fully comformed with IEC standard. When rated output is 3HP or below, motors are of capacitor start, and 4HP or above with capacitor start and run. YC series motors are integrated with up-to-date design, best quality materials construction, and posses the features of pleasant-looking appearance, outstanding performance, easy maintenance. They also concentrate the advantages of high starting torque, smooth turning, low temperature rise, low noise and great overload performance. YC series motors are suitable for powering small type drilling machines and water pumps, especially for familyworkshopswhere only single-phase current supply is available.
Operating conditions:
1. Ambient temperature: -15°C<q<40°C
2.Altitude: Not exceeding 1000 meters
3.Rated voltage: 220V
4.Rated frequency: 50HZ/60HZ
5.Duty/Rating: Continuous ( SI )
6.Insulation class: Class B/F
7.Protection: IP44/IP54
8. Cooling method: IC0141

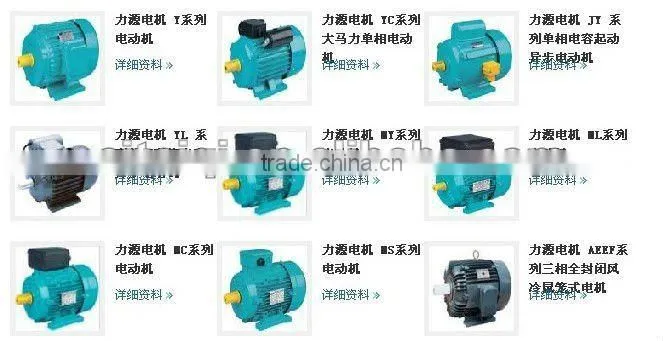

FUAN LIYUAN ELECTRICAL MACHINERY CO.LTD, professionally produces the motor, generator, water pump of different series, which have been sold to all the China and exported to more than 100 countries in America, Europe, Southeast Asia and so on, with the high quality and best prices, the products are warmly welcome by the clients from the home and abroad. The main products are as follows: Y, Y2, AEEF, Series three phase induction motor. YC, JY series heavy-duty single-phase induction motor. MY, MG, ML, MS series induction motor with the aluminum housings. YCG series induction motor with the steel-plate housings. ST, STC series generator , TZH series Compound Excitation generator. SFS, GFS series low noise diesel generating set. LY950...LY6500 series gasoline generator, and IDB, QB, JET... Series water pump .
