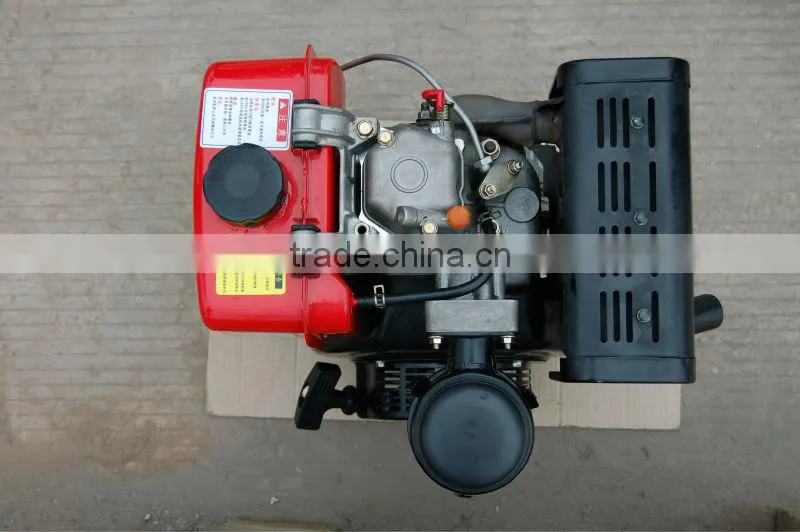

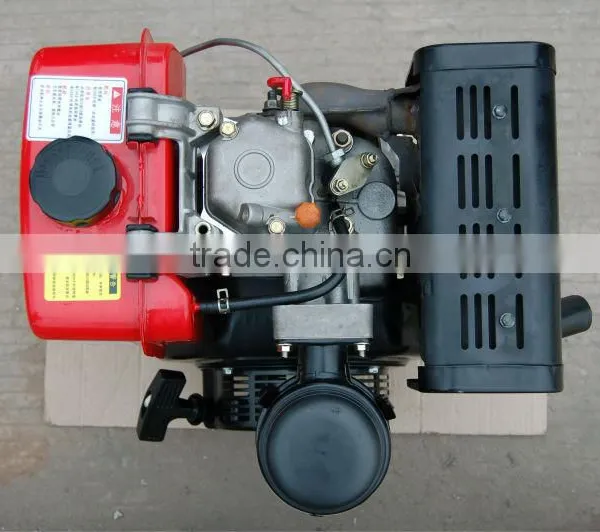

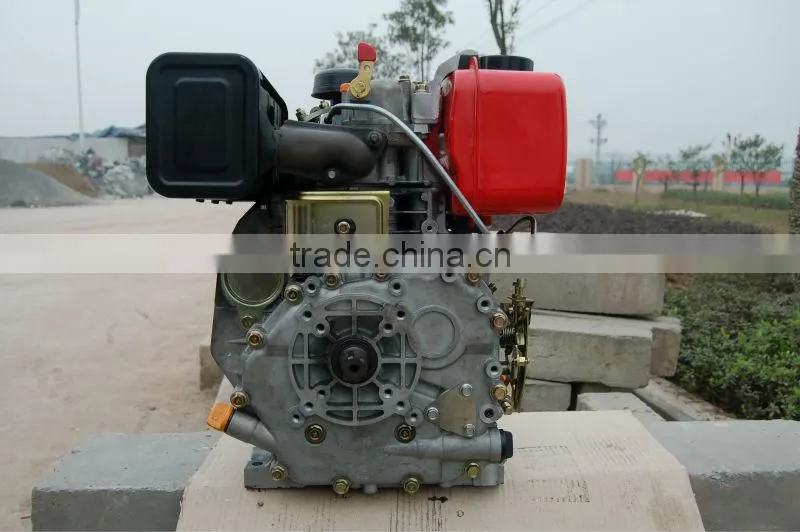

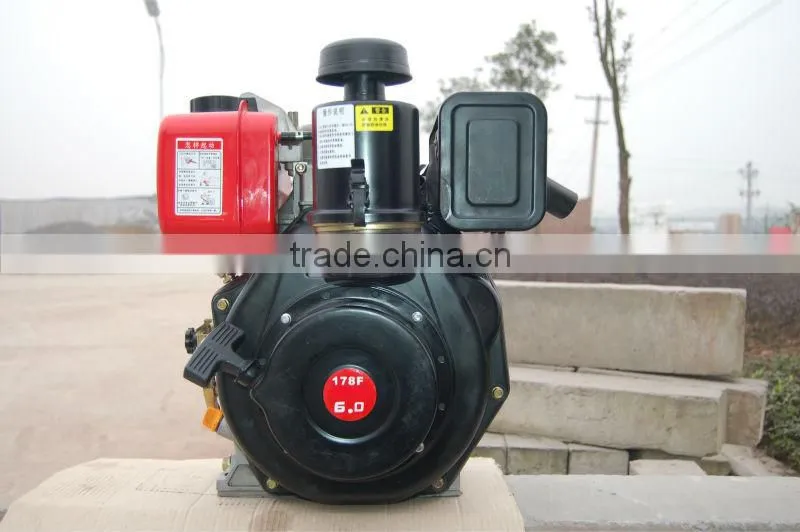

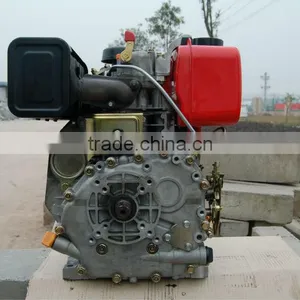

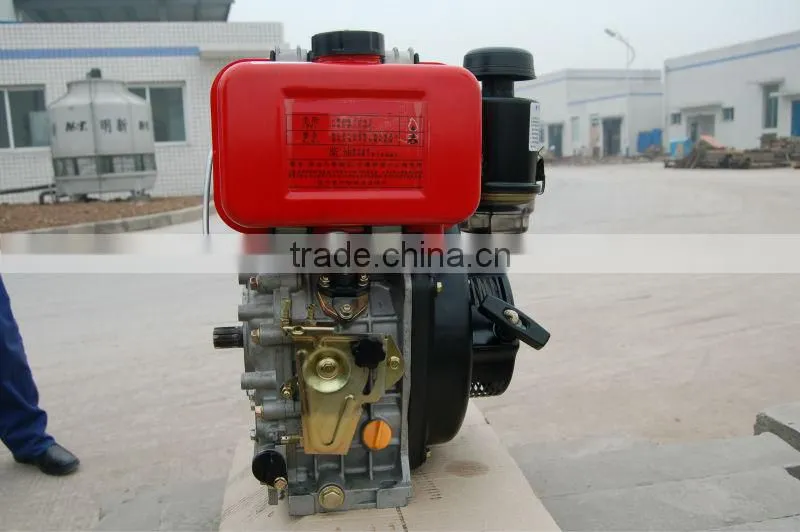

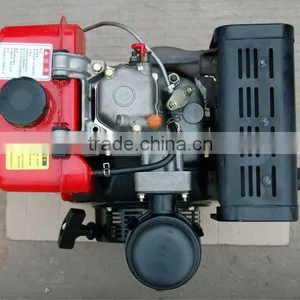

7Hp 178F Single Cylinder Air Cooled Diesel Engine
Specifications
1.Manual or Electric Start2.Camshaft and Key Type Shaft
3.widespread
4.Competitive price
7hp 178F Single cylinder air cooled diesel engine
Model |
170F (E) |
178F(E) |
178FS(E) |
178FA(E) |
186F(E) |
186FS(E) |
186FA(E) |
|||||||
Type |
Single-cylinder, Vertical, 4-stroke, air-cooled ,Diesel engine |
|||||||||||||
Bore x stroke(mm) |
70x55 |
78x62 |
78x62 |
78x64 |
86x70 |
86x70 |
86x72 |
|||||||
Displacement(mi) |
211 |
296 |
296 |
305 |
406 |
406 |
418 |
|||||||
Compression Ratio |
20:1 |
20:1 |
19:1 |
|||||||||||
Rated speed(rpm) |
3000 |
3600 |
3000 |
3600 |
1500 |
1800 |
3000 |
3600 |
3000 |
3600 |
1500 |
1800 |
3000 |
3600 |
Rated output(KW) |
2.5 |
2.8 |
3.68 |
4.0 |
3.68 |
4.0 |
3.68 |
4.0 |
5.7 |
6.3 |
5.7 |
6.3 |
5.7 |
6.3 |
MAX.output(KW) |
2.8 |
3.1 |
4.0 |
4.4 |
4.0 |
4.4 |
4.0 |
4.4 |
6.3 |
6.8 |
6.3 |
6.8 |
6.3 |
6.8 |
Fuel consumption(g/KW) |
294.9 |
310.0 |
290.0 |
307.0 |
290.0 |
307.0 |
290.0 |
307.0 |
283.5 |
295.7 |
283.5 |
295.7 |
283.5 |
295.7 |
Starting fashion |
Manual or Electric Start |
|||||||||||||
Fuel tank capacity(L) |
2.5 |
3.5 |
5.5 |
|||||||||||
Oil capacity(L) |
0.8 |
1.1 |
1.65 |
|||||||||||
Fuel type |
0#(Summer),-10#(Winter)diesel |
|||||||||||||
Oil type |
40CC |
|||||||||||||
Continuous running time(h) |
3.0 |
2.5 |
2.5 |
2.0 |
2.5 |
2.0 |
2.5 |
2.0 |
2.5 |
2.0 |
2.5 |
2.0 |
2.5 |
2.0 |
Overall dimension LxWxH(mm) |
415x385x470 |
480x465x525 |
510x475x565 |
|||||||||||
N.W./G.W.(kg) |
26/31 |
33/38 |
48/53 |
|||||||||||
Product Details
Except 178F,we also have other products for choose,please feel free to contact us.More detail will reply you soon.
