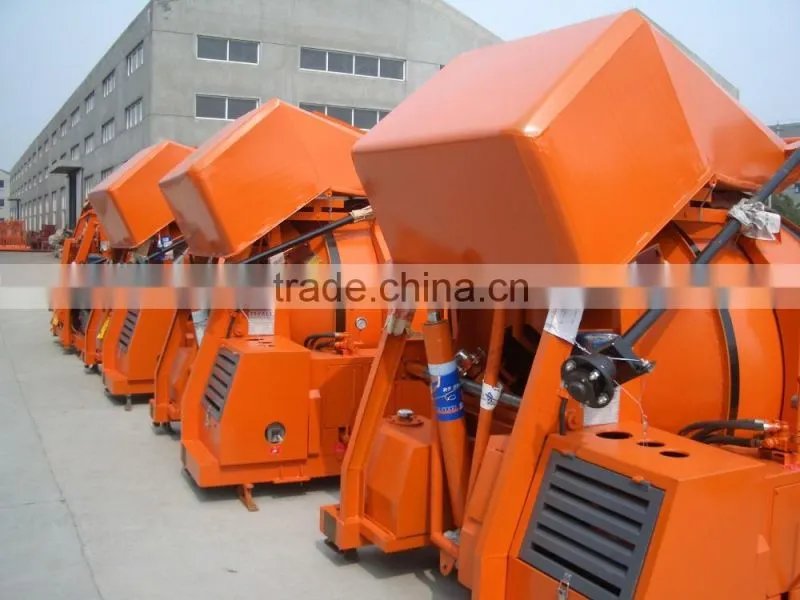

Help Center2016 Hot Sell Topmac Brand Concrete Mixer by Diesel Hydraulic Hoist Hopper
Related Products
-
Diesel Hydraulic Concrete MixerNegotiableMOQ: 1 Set -
Containerized Export Begium Market Diesel Concrete MixerUS$ 3,850 - 4,150MOQ: 1 Unit
-
Diesel Self Loading Hydraulic Hoist CONCRETE MIXERUS$ 1 - 1MOQ: 1 Unit
-
CONCRETE MIXERUS$ 1 - 1MOQ: 1 Unit
-
Containerized Export Nepal Market Electrol CONCRETE MIXERUS$ 1 - 1MOQ: 1 Unit

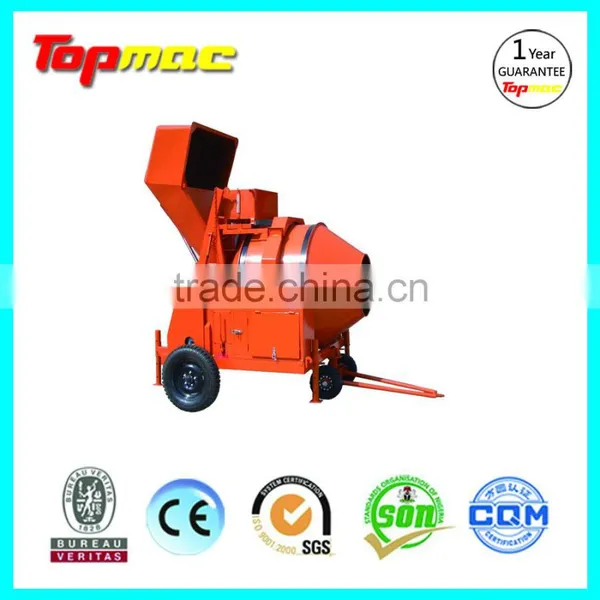

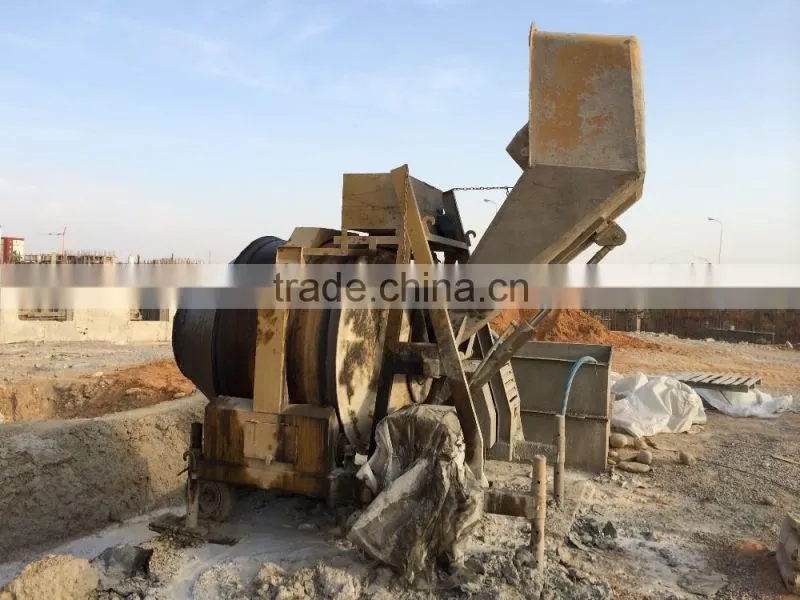

Concrete mixer with Hydraulic type diesel engine is suitable for construction sites, roads, bridge constructions and fabrication sites of small prefabricated concrete members.
Diesel Concrete Mixer is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
Diesel Concrete Mixer is featured by diesel engine power, wire rope tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
How to correctly use diesel concrete mixer?
Diesel concrete mixer normally uses diesel to work. So, before working, concrete mixer users must insist on inspecting whether there is enough diesel oil in diesel oil tank. Lifting concrete mixer users must make sure there is enough oil when use the diesel concrete mixer each time.
In the use process, if users find there is not enough, they should timely add oil into the oil tank. It is not necessary to stop the diesel concrete mixer when adding oil , but users must take care of safety.
Automatic promotion concrete mixer users should always check whether bolts and nuts on the oil tank become flexible or not. If bolts and nuts are loose, users need timely repair.
At the same time, lifting concrete mixer users should also check whether the welding of diesel oil tank is secure or not.
Technical parameter of LiRDCM350 Concrete Mixercrete Mixer
Model |
RDCM350-11/13DHA/B |
Drum Volume |
2210L |
Capacity of loading |
560L |
Capacity of discharging |
350L |
Drum Thickness(mm) |
5mm |
Hopper Thickness(mm) |
3mm |

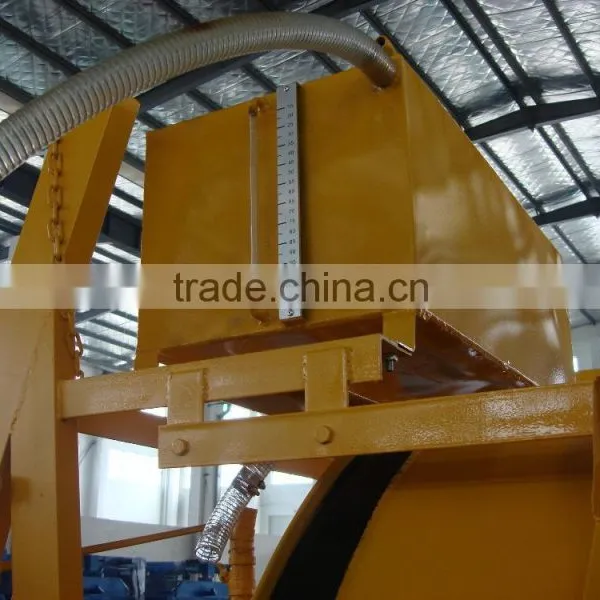

Capacity of water tank |
110L |
Output |
10-14 cubic meter/hour |
Drum rotating speed |
13r.p.m |
Max.towing speed |
20km/h |
Power |
11kw/13kw |
Power source |

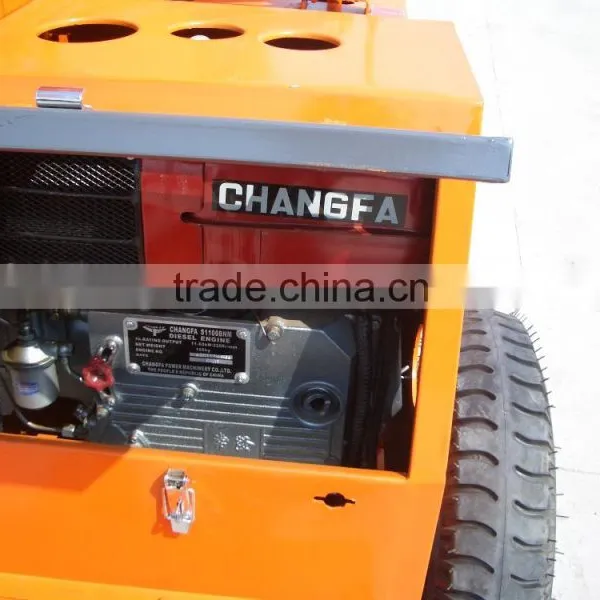

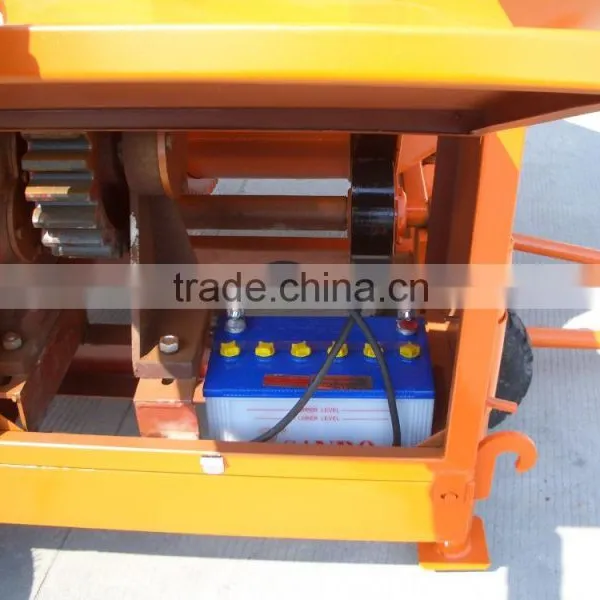

Diesel engine,single cylinder,water-cooled with battery starter |
Size(L×W×H) |
3250×2240×3200mm |
Total weight |
1790/1840kg |
Hopper lifting model |
Hydraulic tipping hopper |
Towing Wheel |
Two wheels or Four wheels |

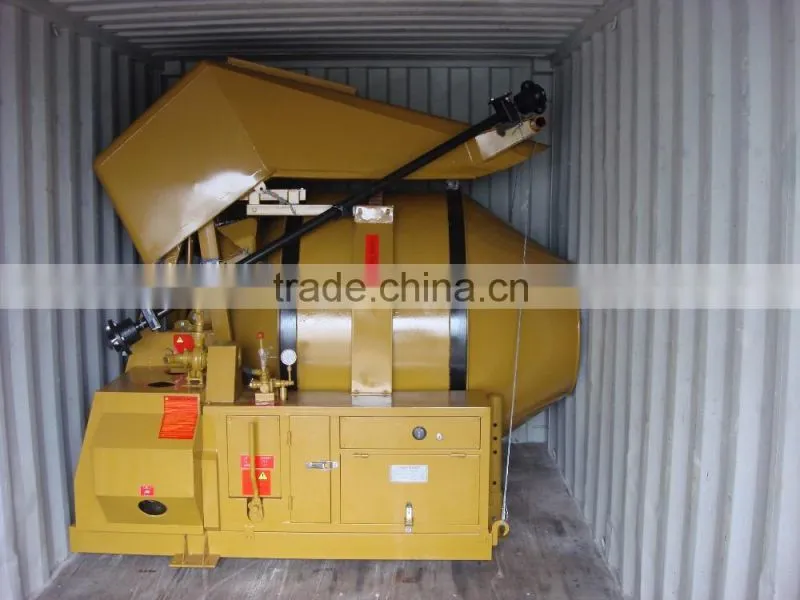

Container Loading Plan
20’ container can be loaded with |
3 units |
40’GP container can be loaded with |
6 units |
WHY US
1. We are leading profesional manufacturer of Concrete (Cement) mixer in Jiangsu. Our products have been exported to more than 90 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
If you want more details of concrete mixer, please don’t hesitate to contact us.
Mobile: 0086 13913404508
wechat/viber/Whatsapp:+8613913404508
