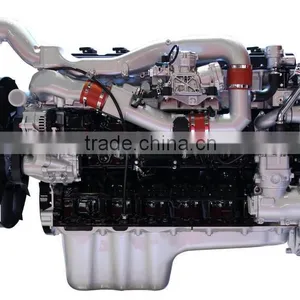

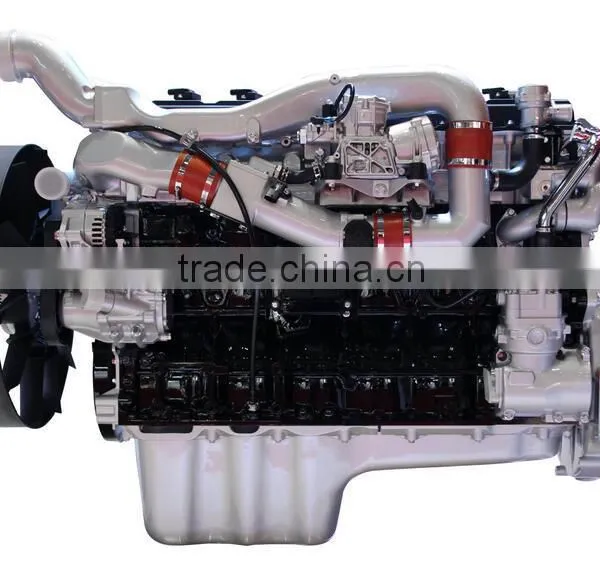

SINOTRUK MT13 Crane Special Diesel Engine 360HP 400HP 440HP 6 Cylinders for Sale Supplier's Choice

SINOTRUK MT13 Crane Special Diesel Engine 360HP 400HP 440HP 6 Cylinders for Sale Supplier's Choice thumbnail-1
SINOTRUK MT13 Crane Special Diesel Engine 360HP 400HP 440HP 6 Cylinders for Sale Supplier's Choice photo-1
US$ 5,000 - 25,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Usage:
Automobile
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Automobile
Fuel Diesel
Stroke 4 Stroke
Cylinder Multi-cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Chongqing, China
Brand Name Sinotruk
Model Number MT13
Weight 975KG
Certification IMO

SINOTRUK MT13 crane special diesel engine

360HP 400HP 440HP 6 cylinders for sale





Main Technical Data



Model

MT13.36

MT13.40

MT13.44

Mode

In-line, water-cooled, four-stroke, turbocharged and intercooled

Injection system

Electrically controlled  pressure, high-energy ignition, lean burn

No.of cylinder

6

No.of valve/cylinder

4

Bore×stroke

mm×mm

126×166

Displacement

L

12.419

Rated power

kW/Ps

265/360

294/400

324/440

Rated speed

r/min

1900

Max. torque

N·m

1800

1900

1900

Max torque speed

r/min

1000-1400

Min fuel consumption ratio

g/kW•h

190

Noise (1Mspl)

≤94

Net weight

kg

975

Emission index

China V
Product Description

 Product overview

SINOTRUK MT13 gas engine,which design and develop with the United States EControls company ,is based on MC13 series diesel engine. It is a using liquefied natural gas (LNG) and compressed natural gas engine and it’s a new generation of high quality energy conservation and environmental protection engine with high reliability, strong performance, low gas consumption, low noise .As one of the most successful gas engine case ,MT series engine just like the masterpiece of EControls company, and had the opportunity to participate in Hanover, Germany commercial auto show in 2014.

Product features

 Inherit advanced technology and excellent quality of the MC13 series diesel engine.

Four valve structure design effectively improve the charging efficiency, the spark plug effectively improve the flame propagation speed, and Econtrols new generation of CFV ensures continuous and accurate gas supply, thin combustion mode make the combustion more sufficient : The above measures effectively reduced after burning, sharply reducing the exhaust temperature, improve the inherent shortcomings of gas-engine thermal load is high, and improve the gas machine inherent defects of low torque at low speed ,improve the power performance, finally further improve the fuel economy of the engine.

     1.Iridium electrode spark plugs : Significantly increases the service life of the spark plug

     2.Econtrols new generation of CFV gas supply system:  Continuous gas supply to ensure the high reliability of the system itself and long durability.

     3.Electronically controlled pressure regulating air inlet : Implement lean burn, guarantee the low gas consumption, soft burning , high thermal efficiency, low exhaust temperature.

     4.Wide domain oxygen sensor : Control air-fuel ratio,  ensure economic and environmental emissions standards

     5.All condition closed-loop control : To achieve the optimal combustion.
