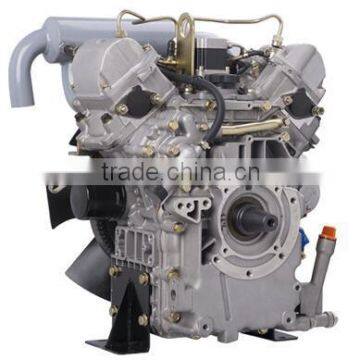

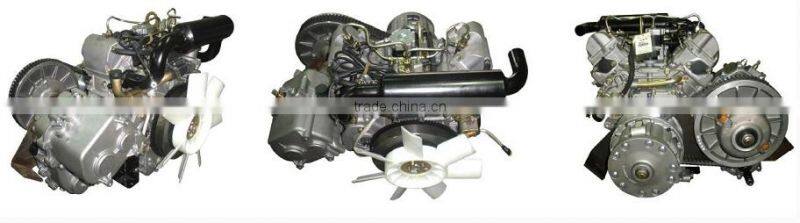

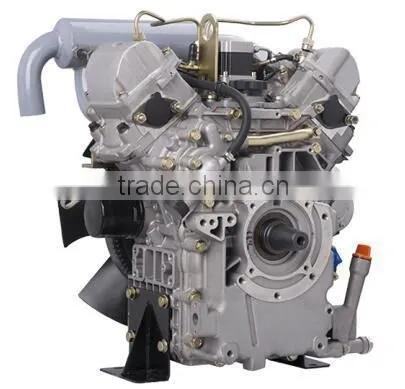

2 Cylinders diesel engine water cooled with the less pollution and emission
Feature
1) Electrical governor to keep the speed stable
2) Low-emission design technique, with the less pollution and emission
3) Compact structure, light weight and energy & material saving
Specification
Engine model |
EV80 |
Engine type |
2-cylinder, in-line, water cooled |
Method of injection |
Swirl |
Bore x Stroke |
80x79mm |
Aspiration |
Natural aspiration |
Displacement |
0.794 |
Cont. output |
12KW/3000RPM; 14KW/3600RPM |
Power take-off position |
Low position of vertical PTO shaft |
Direction of PTO rotation |
Counterclockwise as viewed from opposite of the flywheel |
Starting system |
12V Electric start |
Dimension |
616x486x528mm(Without radiator) |
Net weight |
57.5kg |
Note: Standard unit including exhaust pipe, air filter, radiator and plywood box packing | |
Application
Description
1) EV80 diesel engine use compact structure left and right into a two-cylinder V-arrangement of V-angle of the box with built-in air pump cam and the cam, in the angle between the top plane to install fuel pump and electric adjustment actuators. cylinder block, side covers, cylinder head materials are aluminum, so diesel engine is lighter, only 58KG
2) EV80 diesel engine using an electronic speed controller, as compared with the mechanical governor, fast response speed and better stability, transfer rate can be set according to different purposes. Equipped with generators, the transfer rate is zero, which means the engine preserve a constant speed when loading changed
3) EV80 diesel engine have good performance, the emission can meet U.S. EPA TIER IV emission standards according to rated condition 12KW/3000 R / MIN

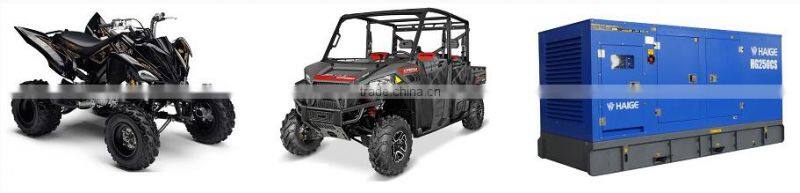

4) EV80 diesel engine have some advantage just like compact structure, stable performance, good reliability, light weight, can be used as generators, tractors, mowers, water pumps, small power boats machine etc.
Option parts
1) CVT transmission system
