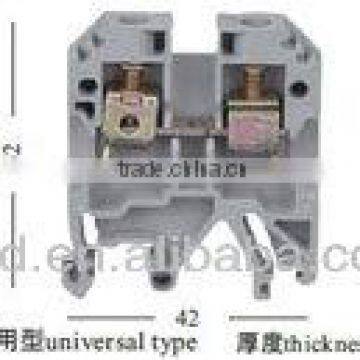

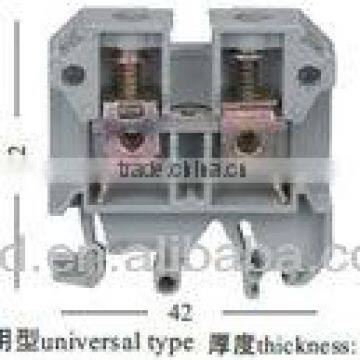

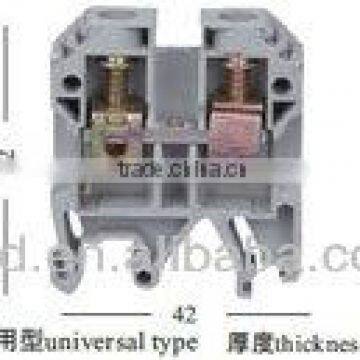

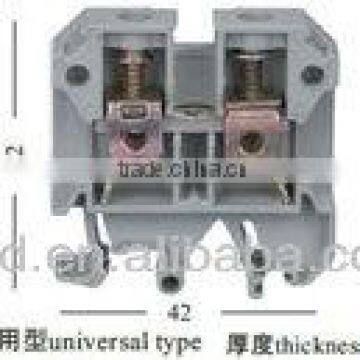

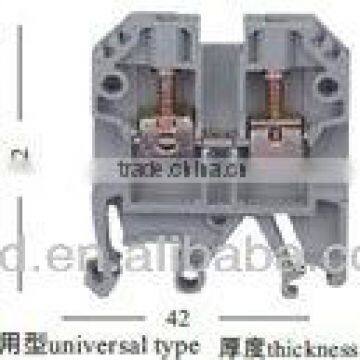

JXB Series Combined Grey Terminal Blocks(JXB terminal blocks ,grey terminals)(JXB)

Specifications

JXB Series Combined Grey Terminal Blocks(JXB terminal blocks ,grey terminals)(JXB)

JXB Series Combined Grey Terminal Blocks(JXB terminal blocks ,grey terminals)(JXB)

General

JXB series combined terminal blocks mainly use Germany Woodmeler's connection technology, and designed and made at home. Technology targets conforms to the standard or IEC60947-1, IEC60947-7-1, GB14048.1. However, JXB is only for  mountin gon, increase the high current terminal series.

Characteristics

1.Small volume, full specification, series JXB's big current terminal use reinforced acccssories to install steel pressing-wire frame and wire diversion board technology in order to guaranjtee the contact reliable;
2.The stand uses creamed-yellow and grey color, the connecting-grounk pedestal uses yellow and green color with moer modern sense.
Explain

(1) End voltage/thick 1.5mm cream
(2) center connection piece:10 position, can be divided into 2, 3 or 4 position.
(3) Universal end fixed piece
(4) Printing number continuous mark stripe
