Changchai Brand---Century Foundation
3M78
Engine features:
1, compact structure, light weight and energy&material saving
2, adopt the CAE analysis,reliable
3, low emission design technique, with the less pollution and emission
4, apply the tunnel structure to enforce the strength of cylinder block, low vibration and noise.
Specification:
Model |
3M78 |
Type |
Vertical,water cooled,4-stroke |
Air intake way |
Naturally aspirated |
Combustion model |
Swirl |
Cylinder No.-Bore×Stroke(mm) |
3-78×78.4 |
Cylinder sleeve type |
Dry-type |
Displacement(L) |
1.123 |
Compression ratio |
22:1 |
Ignition sequence |
1-2-3 |
Rated power/speed(kW/r/min) |
8~15.5 / 2200~3600 |
Max.Torque/speed(N·m/r/min) |
≤64 / 1800~2200 |
Minimum specific fuel consumption (g/kW·h) |
≤275 |
Smoke intensity(FSN) |
≤4.5 |
Noise(dB(A)) |
≤107 |
Emission |
EurroⅡ |
Type of cooling |
Forced water cooling |
Lubrication way |
Pressure, splash |
Oil consumption(g/kW·h) |
2.72 |
Starting method |
Electric starting |
Direction of rotation (face to the flywheel) |
Counterclockwise |
Overall dimension(L×W×H)(mm) |
520×457×581 |
Net weight(kg) |
110 |
Application:
Tractor, forklift, generator sets, water pump sets, loader machinery, small boat etc.

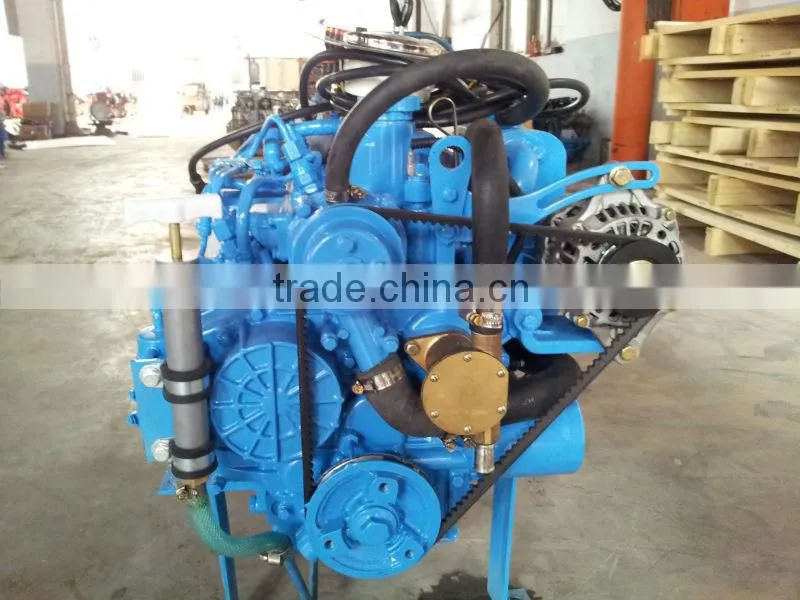

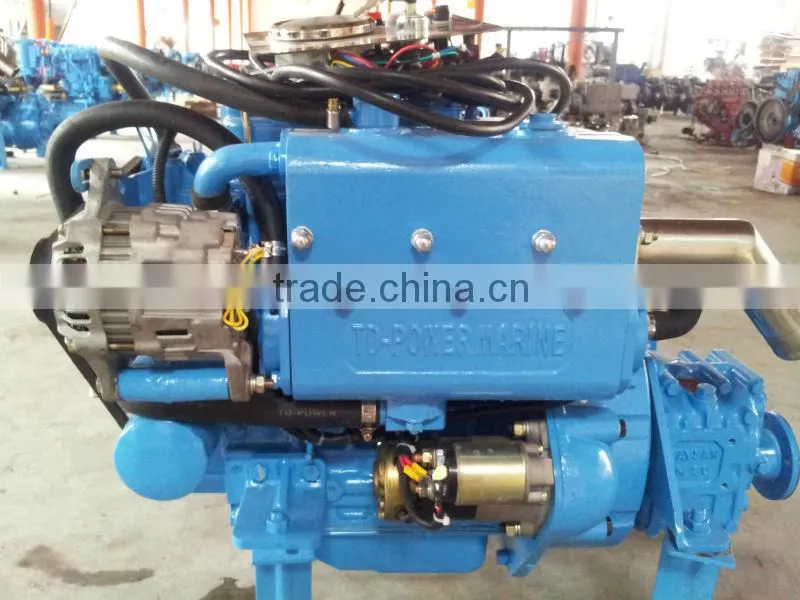

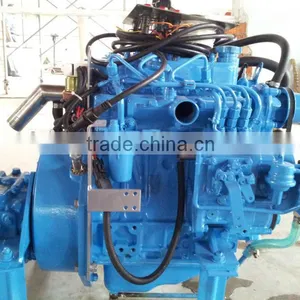

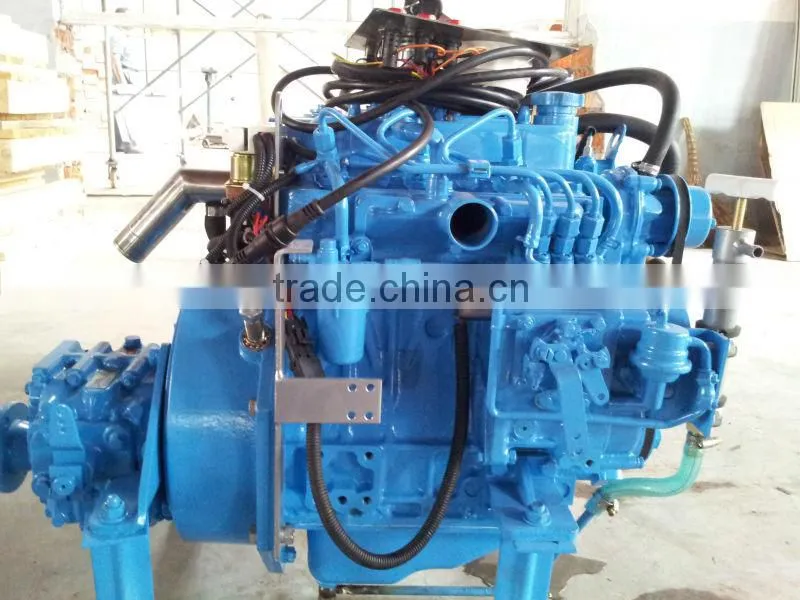

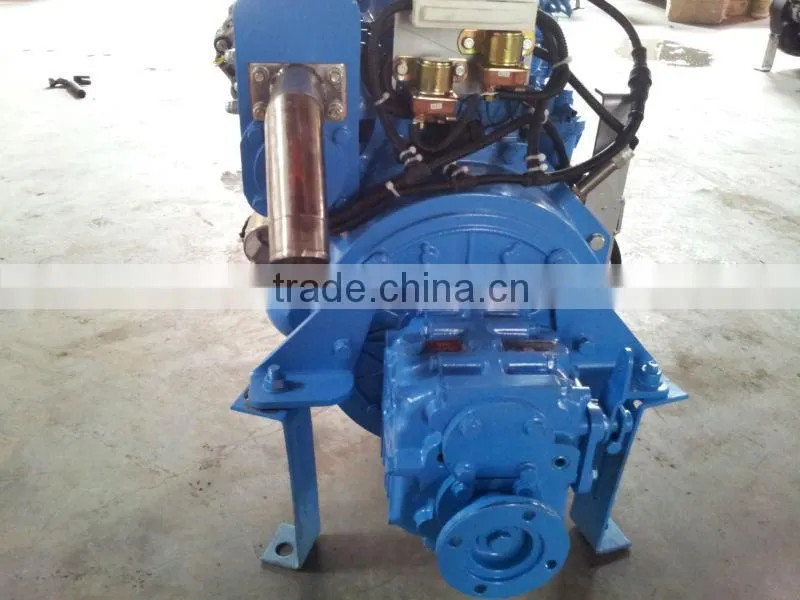

Engine detailed pictures:

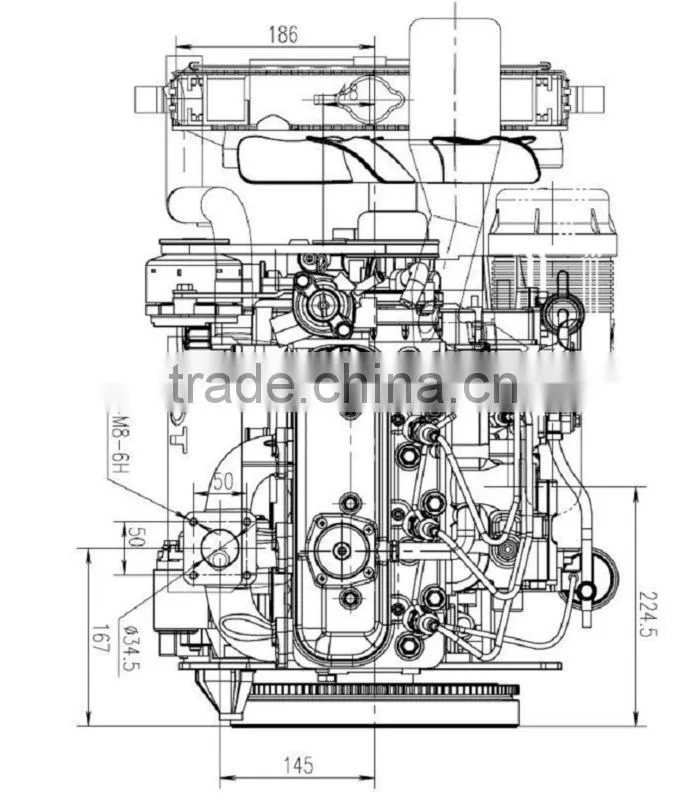

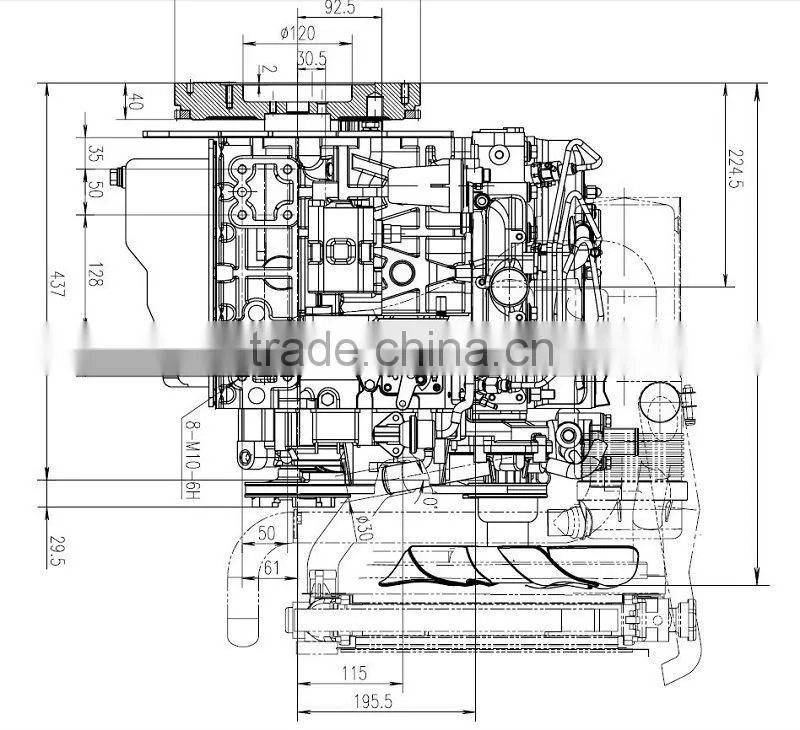

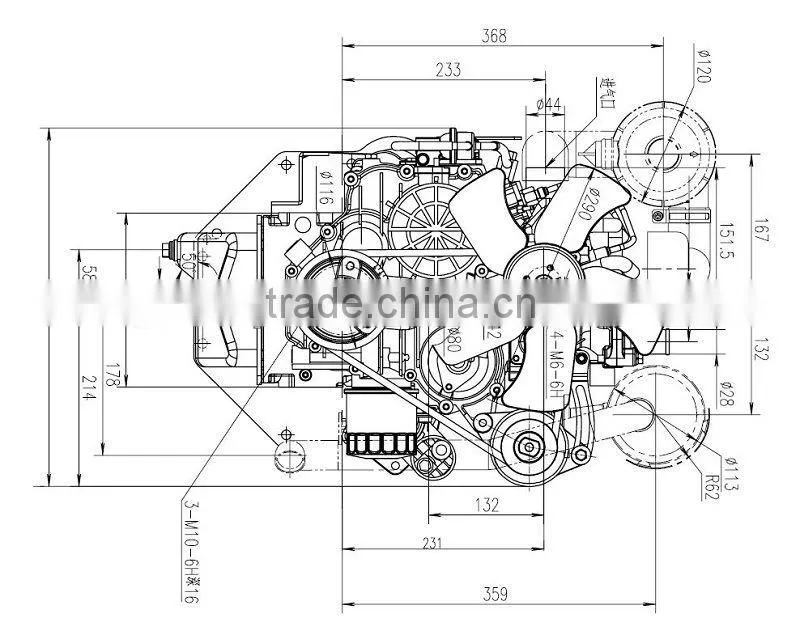

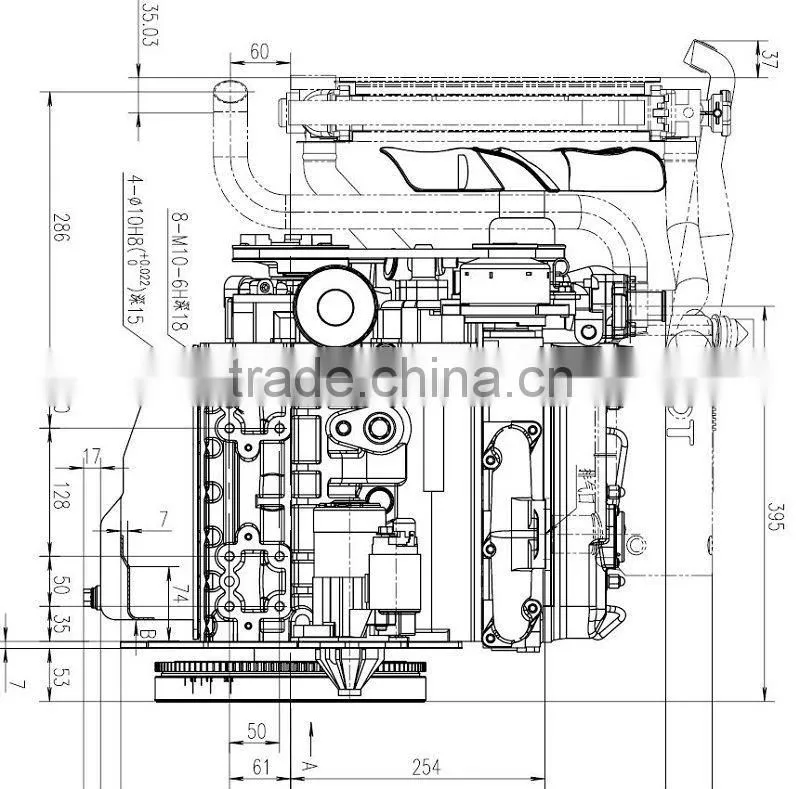

Outline drawing:

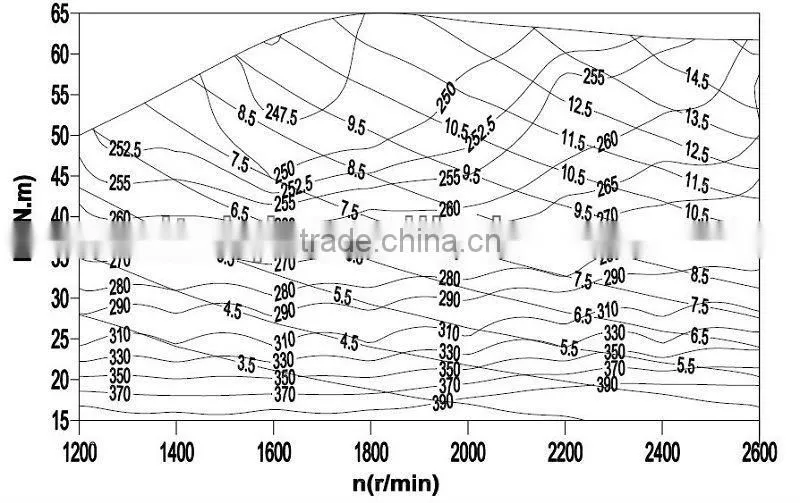

Performance Curve:

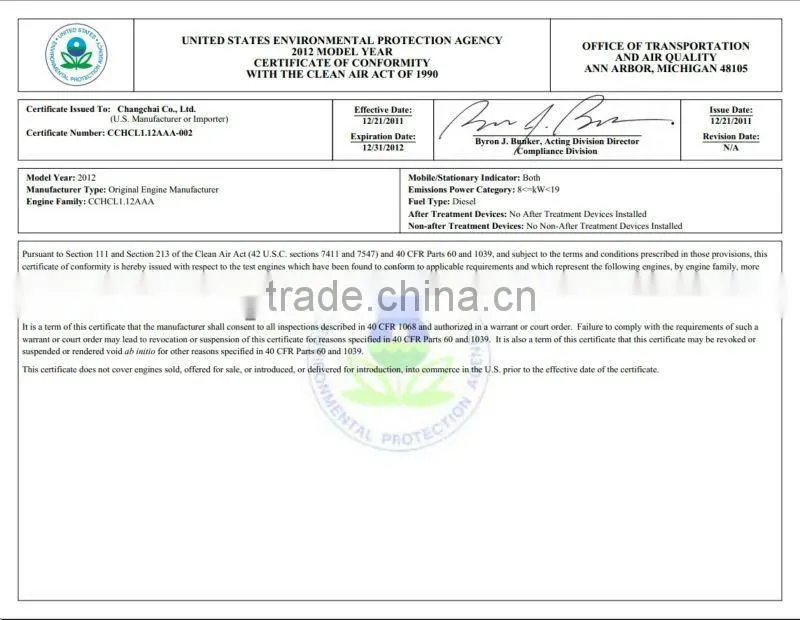

Certification:
Welcome to contact me:
Name:Linda chen
Tel: 86-0592-3686166
Fax: 86-0592-3686886
Mob:86-18650515566
Skype:lindachen8090
Wechat:linlan1984
If you have any questions,we will be happy to service for you!
