Quanchai QCH Series QCH1115 / QCH1125 / QCH1130 Vertical Single Cylinder Diesel Engine for Generator / Marine / Agricultural Use
US$ 1,500 - 3,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Generator / Marine / Agricultual and engineering machinery
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or any other ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Weichai WP Series Engines With 100~405kw for SaleUS$ 2,000 - 60,000MOQ: 1 Unit -
High Quality Engines 210~550ps for Concrete Mixers for SaleUS$ 2,000 - 60,000MOQ: 1 Unit
-
High Quality Diesel & Gas Engines With 290~650ps for Wide-body Dump TruckUS$ 2,000 - 50,000MOQ: 1 Unit
-
High Quality Low-speed Power WP6 Series Diesel Engine With 180~225hp for Bus UsedUS$ 4,000 - 20,000MOQ: 1 Unit
-
High Quality Gas Engines for Trucks With 150~440hp for SaleUS$ 2,000 - 20,000MOQ: 1 Unit
Condition
New
Usage
Other, Generator / Marine / Agricultual and engineering machinery
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Water-cooled
Start
Electric Start
Place of Origin
Anhui, China
Brand Name
Quanchai
Model Number
QCH1115
Dimension(L*W*H)
547*525*784
Weight
200KG
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
No overseas service provided
Quanchai QCH Series QCH1115 / QCH1125 / QCH1130 Vertical Single Cylinder Diesel Engine for Generator / Marine / Agricultural Use
Advantage
Low fuel consumption
Low noise
Small vibration
Small volume
Application
Suitable for generating set, marine, agricultural machinery and engineering machinery etc.
This is instead of 2 cylinders, 3 cylinders and 4 cylinders generator use diesel engines.
The main technical advantage
- Direct driving type: to solve the skid wear of the belt with up 20% on belt driving & small friction & long life & safe & secure.
- Optimization of combustion system: we enlarge diameter of the in & ex vent, and design with corkscrew in air to make complete combustion and cut down 15% fuel consumption.
- Balance system: to use double bearing and two shafts balance system, small vibration and stable running.
- Forcing water cooled system: suitable for long time , wide scope, remote working.
- Multipurpose design: the construction with front hydraulic pump, air pump , generator, pump fan etc is reasonable, it can help match all machines & equipment.
Technical parameters
Model |
QCH1115 |
QCH1125 |
QCH1130 |
Type |
Single cylinder, vertical, four stroke,direct injection |
||
Cooling way |
Forced water cooling |
||
Cylinder bore (mm) |
115 |
125 |
130 |
Piston stroke (mm) |
120 |
120 |
120 |
The piston displace (L) |
1.247 |
1.473 |
1.593 |
Rated output (kw) |
11.6 / 13.9 / 17 |
13.5 / 16.2 /20.1 |
15.4 / 18.04 / 22.06 |
Rated speed (r/min) |
1500 / 1800/ 2200 |
1500 / 1800/ 2200 |
1500 / 1800/ 2200 |
Fuel consumption (g/kw.h) |
≤242.8 |
≤246.2 |
≤246.2 |
Overall dimension (L*W*H mm) |
547*525*784 |
554*525*786 |
554*525*786 |
Net weight (kg) |
200 |
240 |
245 |

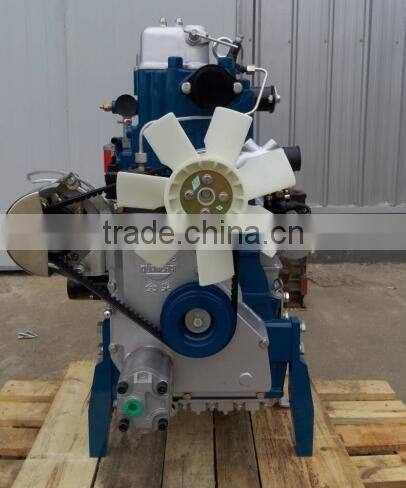

Picture:
