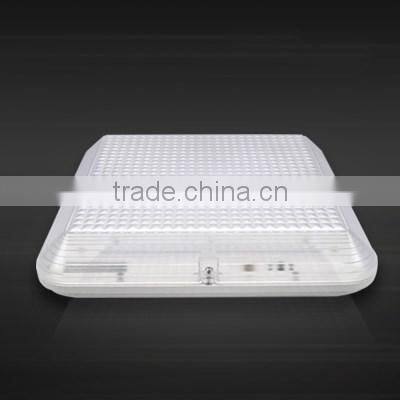

Square CE, SAA IP65 LED sensor ceiling light, 20W, 100-25% dimmable, surface mounted (GL2003SA)
1, Features:
1, Quality materials: die-casting aluminum base better than plastic base; prismatic PC cover better than transparent cover, bright and even light;
2, LEDs: LM-80 report available. 240pcs 0.2W 2835 SMD for 20W, low current to drive, ensure long lifespan;
3, Great thermal management with 2mm thick aluminum heat sink;
4, Driver: isolated driver, with world top brand components: ST IC, Rubycon capacitor …
5, Microwave sensor dimmable: operates well in high temperature environment, much more sensitive than PIR sensor and sound sensor
6, 3-year warranty.
7, CE and SAA approval.
2, Specifications:
Input voltage ( 50/60Hz) |
AC 100 -240V |
Power consumption |
20 W |
Power factor(PF) |
>0.9 |
LED Driver output voltage |
DC 36V |
LED Driver output current |
500mA ±25mA |
Light source |
SMD LED |
Color Temperature |
3000K /4000K /6000K |
CRI |
Ra> 80 |
Flux luminous |
2000 -2400Lm |
View angle |
120° |
Housing material |
Die-cast aluminum base , PC prismatic diffuser |
Life Span |
Up to 50,000 hours |
Operation temperature |
-20 deg C to 40 deg C |
Dimension |
320*320*99mm |
Package |
330*330*110mm |
Net Weight |
3.05KG(approx) |
|
|
Microwave Sensor: | |
Sensor range |
180 degree; 0.5 - 8M (adjustable) |
Sensing interval |
10s to 5min max (adjustable) |
Sensing interval output |
25% normal power (25-100%) |
3, Applications:
widely used at stairwell, corridor, lobby, balcony, car park, museum, stadium, etc.
