15w 18w 20w Ip65 Weather Proof Smd Led Batten Light Fitting With Emergency and Sensor Function

FOB Price

Negotiable / Unit

2 Units(Min. Order)

Port Shenzhen China
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Gooday
Model Number	GL2006ESA	Base Material	Other, PC base
Cover Material	Other, PC	Light Source	Other, LED
Color	White

Product Description

SAA LED luminaire with emergency and sensor , 20W, 665mm, IP65 (GL2006ESA)

-CFL tube fixture replacement.

1, Features:

1, Environmental friendly ;
2, Energy-saving ;
3, Long lifespan;

4, LM-80 SMD LED light source, high bright light;
5, Superb structure, excellent thermal management;
6, Both sensor and emergency functions;
7, Microwave sensor, more sensitive than than PIR sensor in detecting;
8, More sensor options: 100-25%, 100-0%;

9, Wide detecting range: >180 degree, >8meters;
10, Built -in converter, automatically switch to battery output when black out;
11, High temperature Ni-MH battery, at least 3 hours duration, and can be recharged up to 500 times;
12. Warranty: 3 years;
13. SAA approved.

2, Specifications:

	Input voltage	AC 85 -240V, 50/60Hz
	Power consumption	20W
	PF	>0.9
	LED Driver output voltage	36V DC
	LED Driver output current	1000mA ±50mA
	Light source	SMD LED
	CCT	3000K /4000K /6000K
	CRI	Ra > 80
	Flux luminous	3200 -3400LM
	Housing material	Polycarbonate base,milky PC diffuser
	Life Span	Up to 50000 hours
	Installation way	Hanging, ceiling/wall mounted
	Operation temperature	-20degC to 40degC
	Dimension	665mm124mm90mm
	Package	700x130x100mm
	Net Weight	2.2KG

Emergency version:
Type		Maintained
Battery(High-Temperature)		9.6V 3.2AH Ni-MH rechargeable
Emergency output		30% nominal power
Emergency duration		>3 Hours
Charge time		< 12Hours
LED indication		Red: charging; Green: fully charged; Yellow: battery fault or disconnected
Test button		AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode

Microwave Sensor dimmable version:
Sensor range		180 degree; 0.5 - 8M(adjustable)
Sensing interval		10s to 5min max (adjustable)
Sensing interval output		25% nominal power (100-25%)

3,Applications:

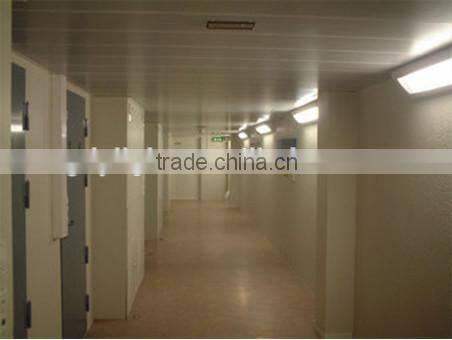

widely used at workshop, warehouse, cold storage, railway station, tunnels, car park etc.
