BRAND NEW Advance Marine Gearbox HC138 is Suitable for Medium and Small Fishing Transport Tug Traffic and Passenger Boats Quality Choice

BRAND NEW Advance Marine Gearbox HC138 is Suitable for Medium and Small Fishing Transport Tug Traffic and Passenger Boats Quality Choice thumbnail-1
BRAND NEW Advance Marine Gearbox HC138 is Suitable for Medium and Small Fishing Transport Tug Traffic and Passenger Boats Quality Choice thumbnail-2
BRAND NEW Advance Marine Gearbox HC138 is Suitable for Medium and Small Fishing Transport Tug Traffic and Passenger Boats Quality Choice photo-1
BRAND NEW Advance Marine Gearbox HC138 is Suitable for Medium and Small Fishing Transport Tug Traffic and Passenger Boats Quality Choice photo-2
US$ 500 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ADVANCE
Model Number:
HC138
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name ADVANCE
Model Number HC138
Gearing Arrangement Helical
Output Torque BASE ON THE RATIO
Rated Power max 150hp
Input Speed max 2500rpm
Output Speed BASE ON THE RATIO

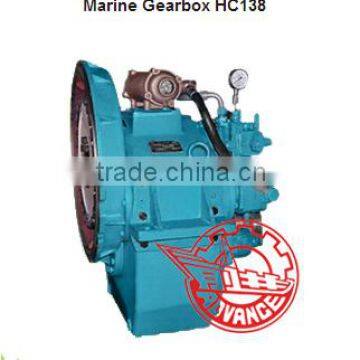

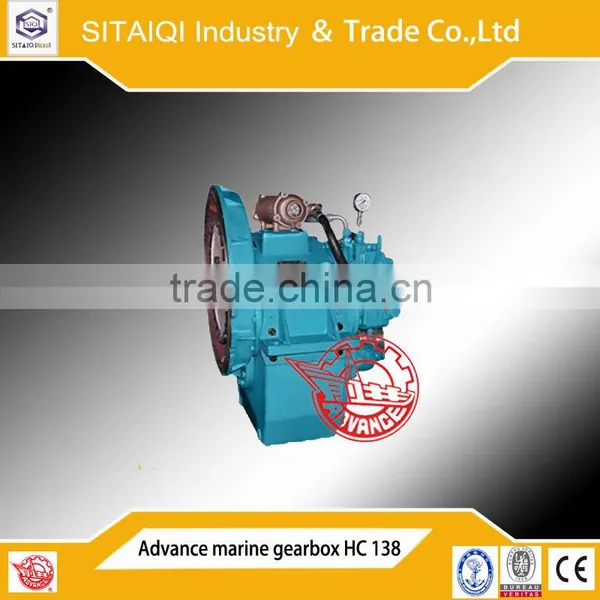

BRAND NEW Advance Marine Gearbox HC138 is suitable for medium and small fishing transport tug traffic and passenger boats



Description



Marine Gearbox HC138 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and large in ratio.



Main data



Input speed

1000-2500r/min

Reduction ratio

2.0,2.52,3.00,3.57,4.05,4.45

Trans. capacity

0.110kw/r/min

Control way

Push-and-pull flexible shaft, electrically, pneumatically

Rated thrust

30KN

Center distance

225mm

L×W×H

520×792×760mm

Net weight

360kg

Flywheel

6135Ca,SAE14,11.5

Bell housing

6135Ca,SAE1,2,3















BRAND NEW Advance Marine Gearbox HC138 is suitable for medium and small fishing transport tug traffic and passenger boatsBRAND NEW Advance Marine Gearbox HC138 is suitable for medium and small fishing transport tug traffic and passenger boatsBRAND NEW Advance Marine Gearbox HC138 is suitable for medium and small fishing transport tug traffic and passenger boats



Description





GWS-series marine gearbox is designed of one-stage speed reduction, input and output being vertically offset and rotating in contrary direction, possessing functions of ahead and astern, clutching & de-clutching and speed reduction. It features in compact in structure, small in volume low in energy consumption and smooth in operation.







GWS-series marine gearbox is widely used in transport, engineering and fishery boats.











Model

Input Speed (r/min)

Reduction Ratio (i)

Trans. Capacity (kW/r·min-1)

Rated Thrust (kN)

Net Weight (kg)

GWS28.30

400-1800

2.0

0.397

80

1230

2.5566

3.0

3.5714

4.0526

GWS30.32

400-1800

1.9688

0.537

100

1460

2.5185

2.9583

3.5238

4.0

GWS32.35

400-1800

2.0

0.684

113

2250

2.5556

3.0

3.5714

4.0526

GWS32.41

400-1800

4~5.3

0.684

113



GWS36.39

400-1800

2.0323

0.919

140

2450

2.4815

2.9167

3.4762

3.9474

GWS39.41

400-1600

2.0

1.169

175

3230

2.5357

2.960

3.50

3.95

GWS39.46

400-1600

4.9474

1.169

175



GWS42.45

400-1600

1.9730

 1.573

 220

3960

2.5484

2.9286

3.5833

4.0

GWS45.49

400-1400

2.0323

2.051

270

5280

2.4815

3.0870

3.4762

3.9474

GWS49.54

400-1200

1.9714

2.647

284

7900

2.4667

3.0

3.5217

3.9524

GWS49.61

400-1200

4~4.6

2.647

284



GWS52.59

400-1200

1.9714

3.448

 300

9800

2.4667

3.0

3.5217

3.9524

GWS52.62

400-1200

3.5

3.64

300



4

GWS60.66

400-1200

2.0

4.625

450

15000

2.536

2.96

3.5

3.95

GWS60.78

400-1200

4~5

4.625

450



GWS66.75

300-900

1.9714

 6.99

700

17500

2.4667

3.0

3.5217

3.9524

GWS70.76

300-900

1.941

8.111

750

20000





Marine Gearbox HCT1200 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.







Main data







Input speed

700-1600r/min

Reduction ratio

5.05,5.60,5.98,6.39, 6.85,7.35,7.90

Trans. capacity

0.93kw/r/min

Control way

Push-and-pull flexible shaft, electrically, pneumatically

Rated thrust

150KN

Center distance

500mm

L×W×H

1188*1350*1547mm

Net weight

3050kg

Flywheel

Depend on engine flywheel

Bell housing

SAE00 0











Application







Marine Gearbox HCT1200 is suitable for fishing, tug and various engineering boats.





 Specifcation

Model:HCD600A



Speed input range(rpm)

1000-2100

Ratio(i)

4.18 4.43 4.7 5 5.44 5.71

Rated thrust of propeller

90KN

Center distance

415mm

Shell

SAE 0 0

Flywheel

SAE 21 18 16 14

Operation options

Mechanical,electrical remote control(suggest to use mechanical)



L*W*H

745*1094*1271mm

Net weight

1550Kg
