High Speed Marine Gearbox HCQ700
Description:
HCQ/HCA/HCM/HCV series light high-speed marine gearboxes are designed of power ranging 20KW-2300KW,ratio ranging 1.5-3.5:1
HCQ is with Cast iron housing ,HCM with aluminum Housing and HCA&HCV with down angle structure.These products enjoy high market share,are widely used on various yacht,traffic boat,passenger boat.Product design and manufacturing capability are in national leading and international advanced level.
Main features:
1,Possess functions of clutch & de-clutching,speed reduction and bearing propeller thrust
2,Compact in structure,small in volume and light in weight
3, High rated input speed and high manufacturing precision
4,Good complete machine performance,low noise and small vibration
5,Match high-speed diesel engine,mainly used on medium-to-small high-speed boats
6,Apply mechanical and automatic control,realizing local emergent control and remote control of the gearbox

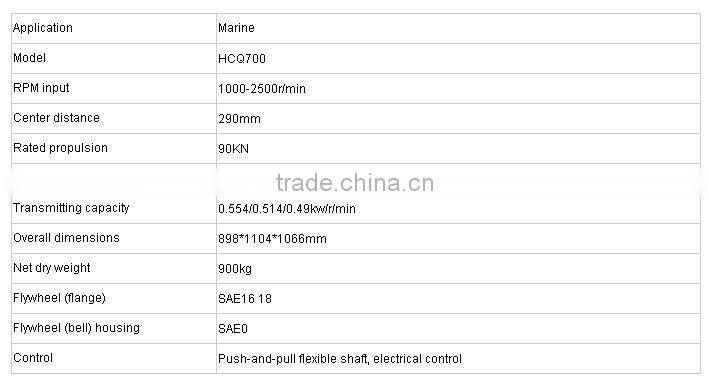

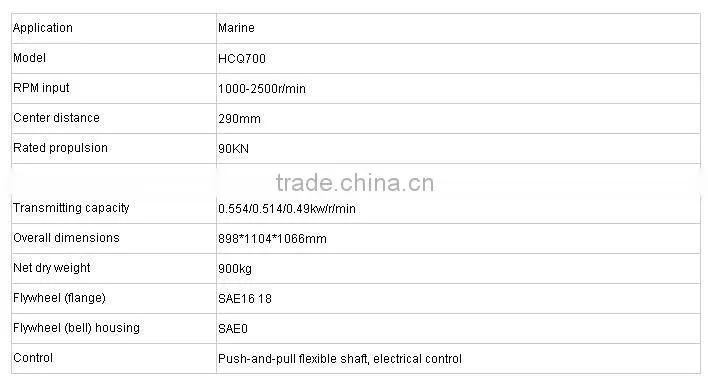

Main data
Application
Marine Gearbox HCQ700 is suitable for fishing, tug, and various engineering and transport boats.
Packing & Delivery
Some Other Advance Marine Gearbox for Marine Engines We supply :
| Model | Input rated power(kw) | Input rated speed(rpm) | Reduction ratio |
| 06 | 4.4-9.2 | 1000-2100 | 2:1-3.5:1 |
| 16A | 6-24 | 1000-2000 | 2:1-3.5:1 |
| MA100 | 13.5-27 | 1500-3000 | 1.6:1-3.88:1 |
| MA125 | 30-60 | 1500-3000 | 2:1-6:1 |
| MA142 | 45-75 | 1500-2500 | 2:1-5.5:1 |
| 40A | 22.5-60 | 750-2000 | 2:1-3.5:1 |
| 120C | 100-250 | 1000-2500 | 1.5:-3.5:1 |
| 135 | 100-200 | 1000-2000 | 2:1-6:1 |
| 120B | 66-158 | 750-1800 | 2:1-4:1 |
| HC138 | 110-275 | 1000-2500 | 2.5:1-4.5:1 |
| MB270 | 147-367 | 1000-2500 | 4:1-7:1 |
| HCQ300 | 250-575 | 1000-2300 | 1-2.38:1 |
| 300 | 257-591 | 1000-2300 | 2:1-5.5:1 |
| D300A | 257-591 | 1000-2300 | 4:1-7.7:1 |
| T300 | 243-558 | 1000-2300 | 6:1-8:1 |
| HC400 | 331-595 | 1000-1800 | 2:1-4:1 |
| HC600A | 480-1004 | 1000-2100 | 2:1-4:1 |
Besides,we also have GW series gearbox for low power marine engine.
Contact us and know more detail.
Advance Brand Best Transmission
Hangzhou Advance Gearbox Group Co., Ltd. is specialized in designing and manufacturing transmissions and powder metallurgical products, which is one of major high- and new-tech enterprises in China.
The Company with the former name "Hangzhou Gearbox Works" was founded in 1960. Approved by State Economy and Trade Commission, the Company was restructured into a liability limited company with diversified state shares in 2001 and in 2008 the Company was restructured into a joint-stock limited company.The Company has been listed on Shanghai Stock Exchange since October 2010. Located by the south bank of Qiantang River, the Company owns 568,000 area, 2600-odd employees, 19 affiliated companies. The Company is awarded as "Leading Company in China Industry Area", "Top 500 in China Machinery Industry", "Top 500 Competitive Big Enterprise and Big Group in China". Technology Center of the Company was awarded as state-level technology center. The "Key Technology and Industrialization of High-end Heavy Gear Transmission" was awarded as Second Prize of National Prize for Progress in Science and Technology.
Standing on transmission industry, relying on science and technology progress, core competitiveness is enhanced and leading position in theindustry area is established. Since 1980s, based on independent development, the Company has imported advanced foreign technology and realized secondary innovation. The products area has been expanded into 10 families covering over 1000 types, from single marine gearbox to ten types, thousands of products, including motive marine propulsion system, construction machinery transmissions, wind turbine transmissions, auto transmissions,agricultural transmissions, rail transittransmissions,industrial transmissions, special products,powder metallurgical (P/M) products, and large-sized high-precision gears.
The Company imported first class equipments, established complete quality management system and sales service network to provide clients with high-quality products and satisfactory service. "Advance" products are sold in 31 provinces and municipalities in China and 47 countries and regions in the world.
As the Chinese economy has entered into a New Normal, the Company will keep reform and innovation. Adhering to the Company Spirit of "Loyalty, Dedication, Solidarity, Top-Rank", the Company will grasp new opportunities under the New Normal for sustainable development with higher quality, efficiency and benefit.
