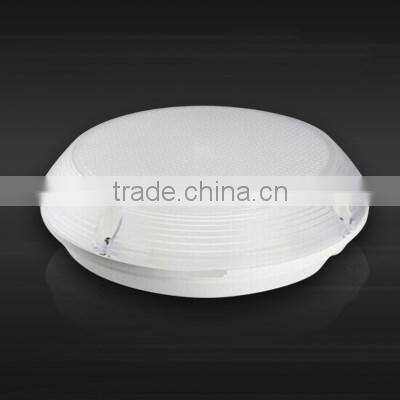

SAA LED ceiling lights, wall lights, oyster fitting with sensor& emergency, 20W, IP65
1, Features:
1, Quality materials: die-casting aluminum base better than plastic base; prismatic PC cover better than transparent cover, bright and even light;
2, LEDs: LM-80 report available. 240pcs 0.2W 2835 SMD for 20W, low current to drive, ensure long lifespan;
3, Great thermal management with 2mm thick aluminum heat sink;
4, Driver: isolated driver, with world top brand components: ST IC, Rubycon capacitor …
5, Microwave sensor dimmable: operates well in high temperature environment, much more sensitive than PIR sensor and sound sensor
6, Emergency version: 3 hours emergency duration, meet EN 1838, BS 5266(UK) and AS 2293(AU) standards.
7, High temperature Ni-MH battery: better than normal Ni-MH battery and Ni-CD battery in sealed fitting.
8, 3-year warranty.
9, CE& SAA approvals.
2, Specifications
Input voltage ( 50/60Hz) |
AC 220 -240V |
Power consumption |
20 W (24.5W for emergency versions) |
Power factor(PF) |
>0.9 |
LED Driver output voltage |
DC 36V |
LED Driver output current |
500mA ±25mA |
Light source |
SMD LED |
Color Temperature |
3000K /4000K 6000K |
CRI |
RA>80 |
Flux luminous |
2100- 2400Lm |
View angle |
100° |
Housing material |
Die-cast aluminum base , PC prismatic diffuser |
Life Span |
Up to 50, 000 hours |
Operation temperature |
-20degC to 40degC |
Dimension |
dia 315 *98mm |
Package |
330*330*110mm |
Net Weight |
3.8KG(approx) |
|
|
Emergency: | |
Type |
Maintained |
Battery(High-Temperature) |
9.6V 3.2AH Ni-MH rechargeable |
Emergency output |
30% nominal power |
Emergency duration |
>3 Hours |
Charge time |
< 12Hours |
LED indication |
Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
|
Test button
|
AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
|
|
Microwave Sensor: | |
Sensor range |
180 degree; 0.5 - 8M(adjustable) |
Sensing interval |
10s to 5min max (adjustable) |
Sensing interval output |
25% nominal power (100-25%) |
3, Applications:
Car park, stairwell, hallway, lobby, balcony, school, museum, stadium, pool etc.
