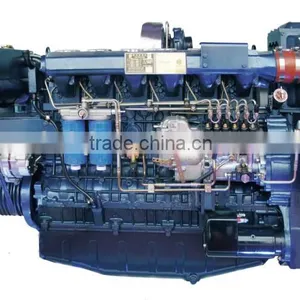

Weichai Wp12C400 Marine Diesel Engine With Gearbox 400HP Quality Choice
US$ 15,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or other port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Boat Used Diesel Engine R170 With 4HPUS$ 160 - 500MOQ: 10 Sets -
R180 7HP Single Cyliner Diesel EngineUS$ 180 - 500MOQ: 10 Sets
-
Good Quality RD90N Single Cylinder Diesel EngineUS$ 200 - 1,000MOQ: 10 Sets
-
RD80 Water Cooled Diesel Engine With 2400rpmUS$ 200 - 1,000MOQ: 10 Sets
-
High Speed Marine Diesel Engine Set With Gearbox for Fishing Boat Used SY495YA 74HpUS$ 9,000 - 20,000MOQ: 1 Set
Condition
New
Engine
4 Stroke
Fuel Type
Diesel
Cylinders
6
Engine Position
Inboard
Dimensions (L x W x H) (mm)
1695*843*1215mm

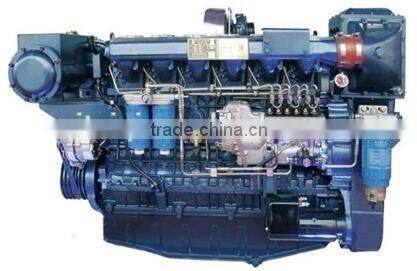

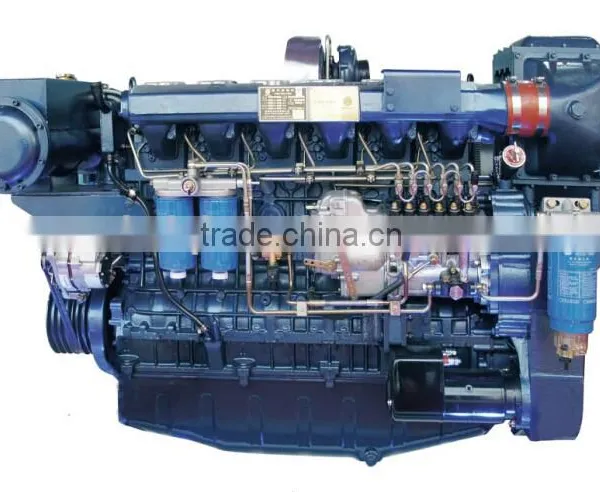

Weichai Wp12C400 Marine Diesel Engine
with Gearbox 400HP
Advantages
1, Powerful
2, High economic performance
3, High reliability
4, Better environment protection
5, High safety
6, Good adaptability

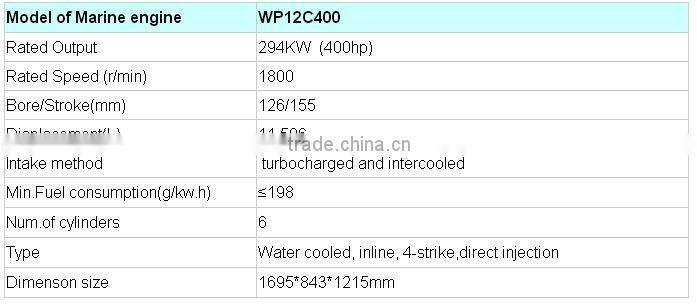

Specifications
1, Powerful
2, High economic performance
3, High reliability
4, Better environment protection
5, High safety
6, Good adaptability
Specifications
Weichai WP12 Series Marine Diesel Engine
| LandKing WP12C Series marine diesel engine | |||
| Model | WP12C450 | WP12C400 | WP12C350 |
| Type | water cooling, 4 strokes, in-line, turbocharged intercooled | ||
| Displacement(L) | 11.596 | ||
| Bore/stroke(mm) | 126/155 | ||
| Cylinder numbers | 6 | ||
| valve number per cylinder | 4 | ||
| average effective pressure(MPa) | 1,626 | 1,690 | 1,766 |
| Compression ratio | 17:1 | ||
| Injection advance angle | 14 | 10 | 10 |
| the outbreak of the cylinder pressure(MPa) | ≤16 | ||
| Special fuel consumption(g/kW.h) | ≤192 | ||
| Unladen stability of the minimum speed | 600±50 | ||
| After the turbine exhaust temperature(°C) | ≤600 | ||
| Smoke(Rb) | ≤1.0 | ||
| Rotation direction of crankshaft | Counterclockwise(face to flywheel end) | ||
| Net weight(kg) | 1200 | ||
| Overall dimension (mm) | 1717×836×1274 | ||
WP12 series marine diesel engines type spectrum table | |||||||
| MODEL |
CYLINDER NO |
BORE*STROKE (mm) |
DISPLACEMENT (L) |
rated power (kW) |
Rated speed (R/min) | Scope | |
| WP12C190-18 | 6 | 126/155 | 11.596 | 140 | 1800 | CCS/ZY | |
| WP12C245 | 6 | 126/155 | 11.596 | 180 | 1500 | CCS | |
| WP12C245E230 | 6 | 126/155 | 11.596 | 180 | 1500 | CCS | |
| WP12C272 | 6 | 126/155 | 11.596 | 200 | 1500 | CCS/ZY | |
| WP12C296 | 6 | 126/155 | 11.596 | 218 | 2100 | CCS/ZY | |
| WP12C300E230 | 6 | 126/155 | 11.596 | 220 | 1500 | CCS | |
| WP12C300 | 6 | 126/155 | 11.596 | 220 | 1800 | CCS/ZY | |
| WP12C300E231 | 6 | 126/155 | 11.596 | 220 | 1800 | CCS | |
| WP12C327E230 | 6 | 126/155 | 11.596 | 240 | 1500 | CCS | |
| WP12C327E231 | 6 | 126/155 | 11.596 | 240 | 1800 | CCS | |
| WP12C350 | 6 | 126/155 | 11.596 | 258 | 1500 | CCS/ZY | |
| WP12C350-15 | 6 | 126/155 | 11.596 | 258 | 1500 | CCS/ZY | |
| WP12C350E200 | 6 | 126/155 | 11.596 | 258 | 1500 | CCS | |
| WP12C350E231 | 6 | 126/155 | 11.596 | 258 | 1800 | CCS | |
| WP12C375E232 | 6 | 126/155 | 11.596 | 275 | 2150 | CCS | |
| WP12C400E232 | 6 | 126/155 | 11.596 | 294 | 2150 | CCS | |
| WP12C400 | 6 | 126/155 | 11.596 | 295 | 1800 | CCS/ZY | |
| WP12C400-18 | 6 | 126/155 | 11.596 | 295 | 1800 | CCS/ZY | |
| WP12C400E201 | 6 | 126/155 | 11.596 | 295 | 1800 | CCS | |
| WP12C450 | 6 | 126/155 | 11.596 | 330 | 2100 | CCS/ZY | |
| WP12C450-21 | 6 | 126/155 | 11.596 | 330 | 2100 | CCS/ZY | |
| WP12C450E202 | 6 | 126/155 | 11.596 | 330 | 2100 | CCS | |
| WP12C240-15 | 6 | 126/155 | 11.596 | 176 | 1500 | ZY | |
| WP12C270 | 6 | 126/155 | 11.596 | 198 | 1500 | ZY | |
| WP12C278 | 6 | 126/155 | 11.596 | 205 | 1800 | ZY | |
| WP12C286 | 6 | 126/155 | 11.596 | 210 | 1800 | ZY | |
| WP12C327-18 | 6 | 126/155 | 11.596 | 240 | 1800 | ZY | |
