Resin Standoff Insulator(bus Bar Insulator,insulator Connector)(SM-51)
US$ 0.5 - 3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CNGAD
Model Number:
SM-51
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Busbar Insulator Connector( Insulator Connector,busbar Insulator)SM-25US$ 0.5 - 3MOQ: 100 Pieces -
Bus Bar Support(busbar Insulator, Busbar Connector)SM-76US$ 0.5 - 3MOQ: 100 Pieces
-
Step Insulators CJ4-40US$ 0.12 - 1MOQ: 1
-
Step Insulators CT4-40US$ 0.12 - 1MOQ: 1
-
Step Insulators CT2-20US$ 0.12 - 1MOQ: 1
Place of Origin
Zhejiang, China
Brand Name
CNGAD
Model Number
SM-51
Type
Insulator
Material
Other, resin
Application
Low Voltage
Tensile Strength
1000LBS

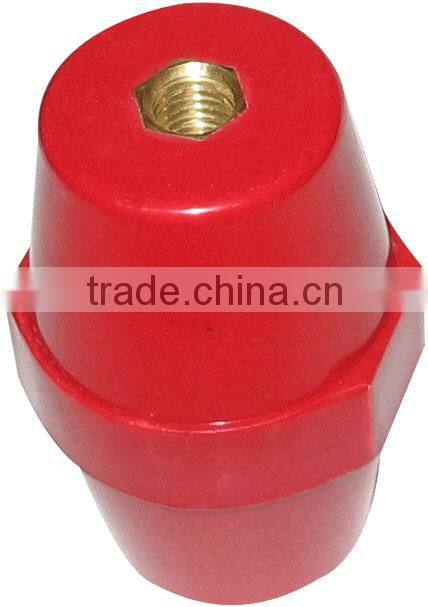

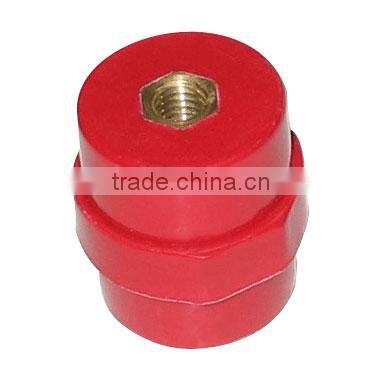

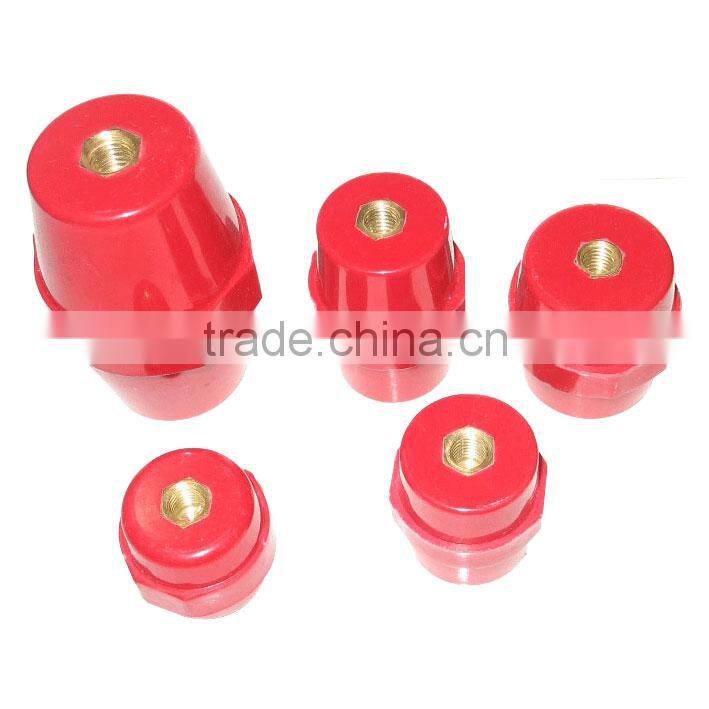

Resin standoff insulator(bus bar insulator,insulator connector)(SM-51)
Main technical parameters
1) tensile streghth: 500-1500LBS
2) Dielectric: 6-25KV
3) screw thread: M6, M8, M10

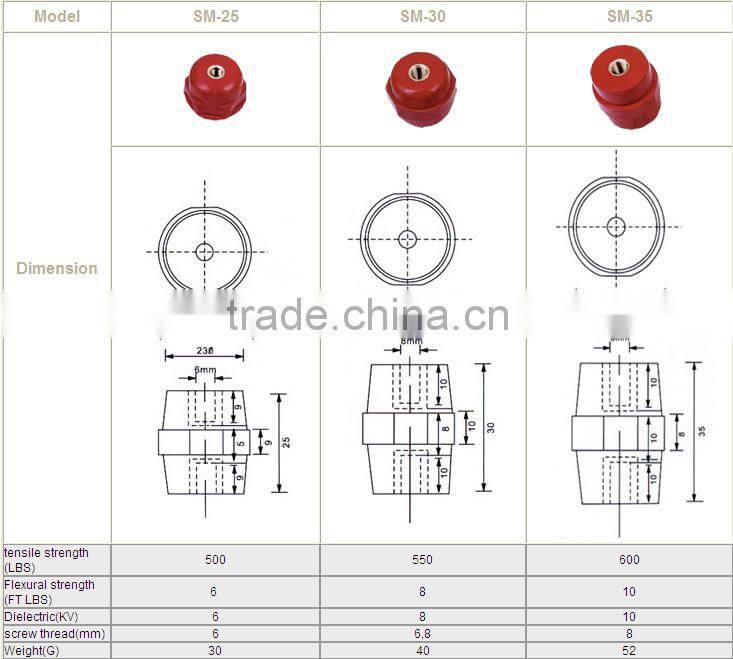

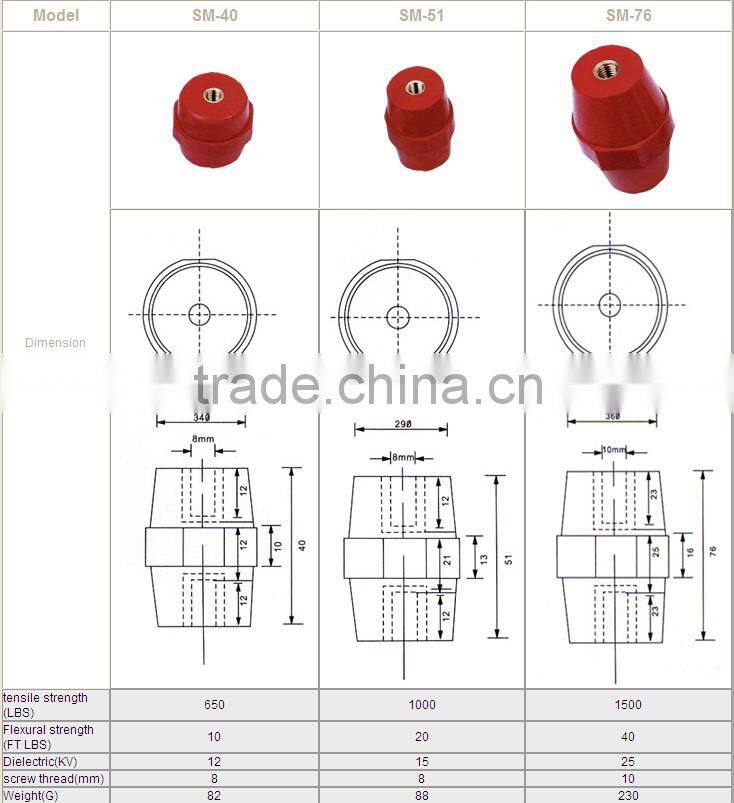

| Model | SM-25 | SM-30 | SM-35 | SM-40 | SM-51 | SM-76 | |
| tensile strength (LBS) | 500 | 550 | 600 | 650 | 1000 | 1500 | |
| Flexural strength(FT LBS) | 6 | 8 | 10 | 10 | 20 | 40 | |
| Dielectric(KV) | 6 | 8 | 10 | 12 | 15 | 25 | |
| screw thread(mm) | 6 | 6,8 | 8 | 8 | 8 | 10 | |
Bitmap
| 30 | 40 | 52 | 82 | 88 | 230 |
